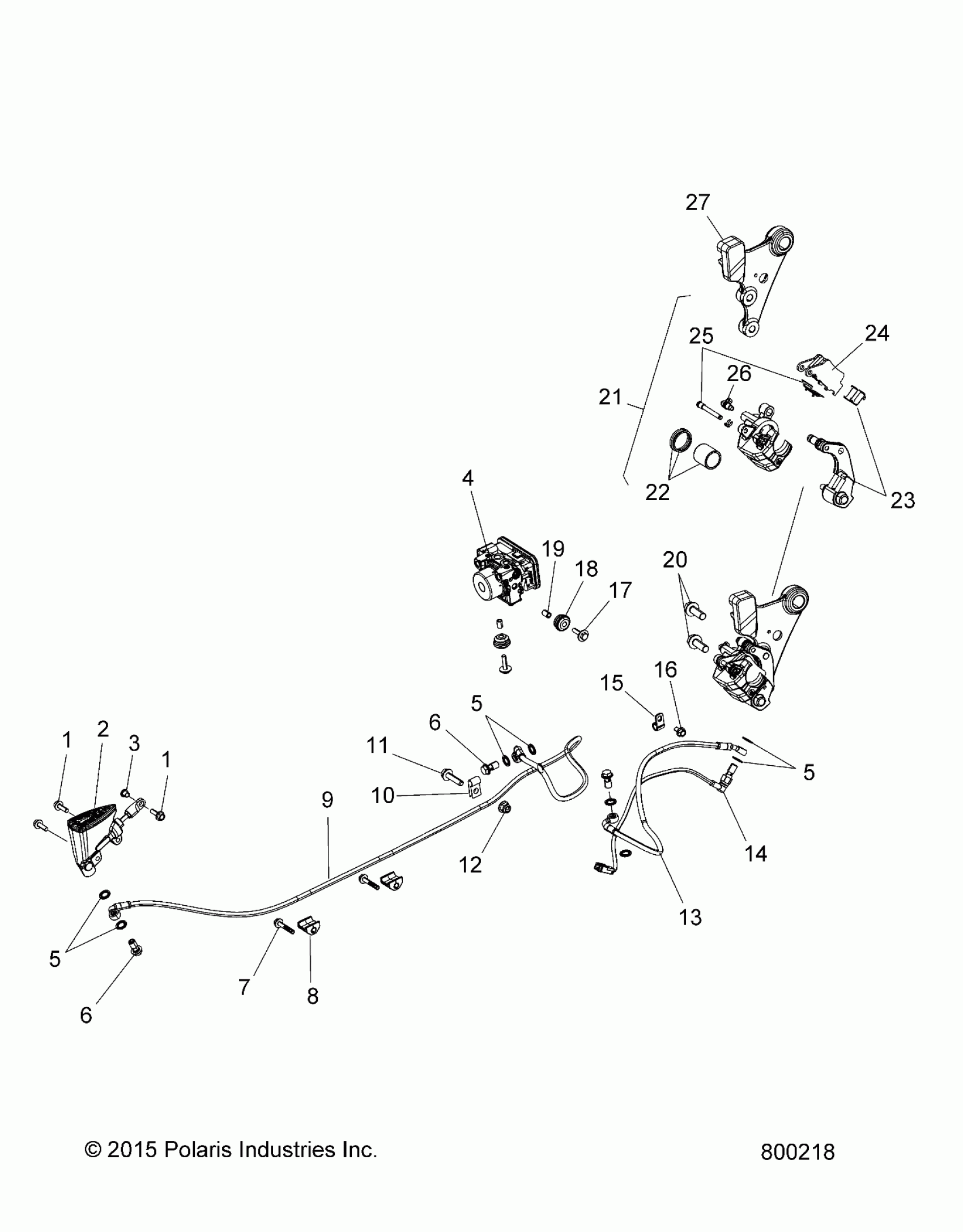

Polaris OCTANE ALL OPTIONS (R06) - V17FTA/FTB BRAKES, REAR ASM., W/ABS - V17FTA (800218) Diagram

#

Description
Price

1

SCREW

7518141

$4.76

1

SCREW

7518141

$4.76

2

ASM., MASTER CYL. REAR [SEE PAGE-"BRAKES, MASTER CYL.,FRONT AND REAR]

----

Unavailable

3

BUSHING, BRAKE PIVOT

5338020

$9.52

4

MODULE, ABS, SVC, CRUISER

2205610

$849.99

5

SEAL

5413212

$4.84

5

SEAL

5413212

$4.84

5

SEAL

5413212

$4.84

6

BOLT, BANJO

1910499

$5.56

6

BOLT, BANJO

1910499

$5.56

7

SCREW

7520292

$3.97

8

CLIP, HOSE, CABLE

5415337

$23.81

9

HOSE, BRAKE, ABS, REAR MASTER CYL.

1912271

Unavailable

10

CLAMP-CABLE

7080367

$2.38

11

SCREW, HXFLG

7519779

$2.38

12

NUT

7547317

$2.38

13

HOSE, BRAKE, ABS, REAR CALIPER

1912269

$68.79

14

SWITCH, BANJO

1912344

$80.94

15

CLAMP-REAR BRAKE

7080983

$4.35

16

SCREW, HXFLG

7517704

$7.84

17

SCREW, HXHD

7519089

$3.97

18

GROMMET, ABS MOUNT

5413711

$3.17

19

COLLAR, ABS

5136840

$2.38

20

SCREW, HXFLG

7520366

$12.37

21

ASM., REAR CALIPER/BRACKET [INCL.22-27]

1912701-468

Unavailable

21

CALIPER, REAR, BLK

1912700-468

$324.99

22

K-PISTON AND SEALS, REAR CALIPER

2206145

$69.99

23

K-BOOT

2206142

$64.99

23

K-BRKT., REAR CALIPER [INCL. CLIPS]

2206147

$74.99

24

K-SHIM, BRAKE, REAR

2206684

$53.24

24

K-BRAKE PADS, REAR CALIPER [INCL. PADS ONLY]

2206146

$74.19

25

K-SPRING AND PINS,CAL,J [INCL. CLIPS]

2206141

$64.99

26

KIT, BLEEDER SET

2206140

$69.99

27

BRKT., TORQUE, BRAKE

5139957-468

$72.84
