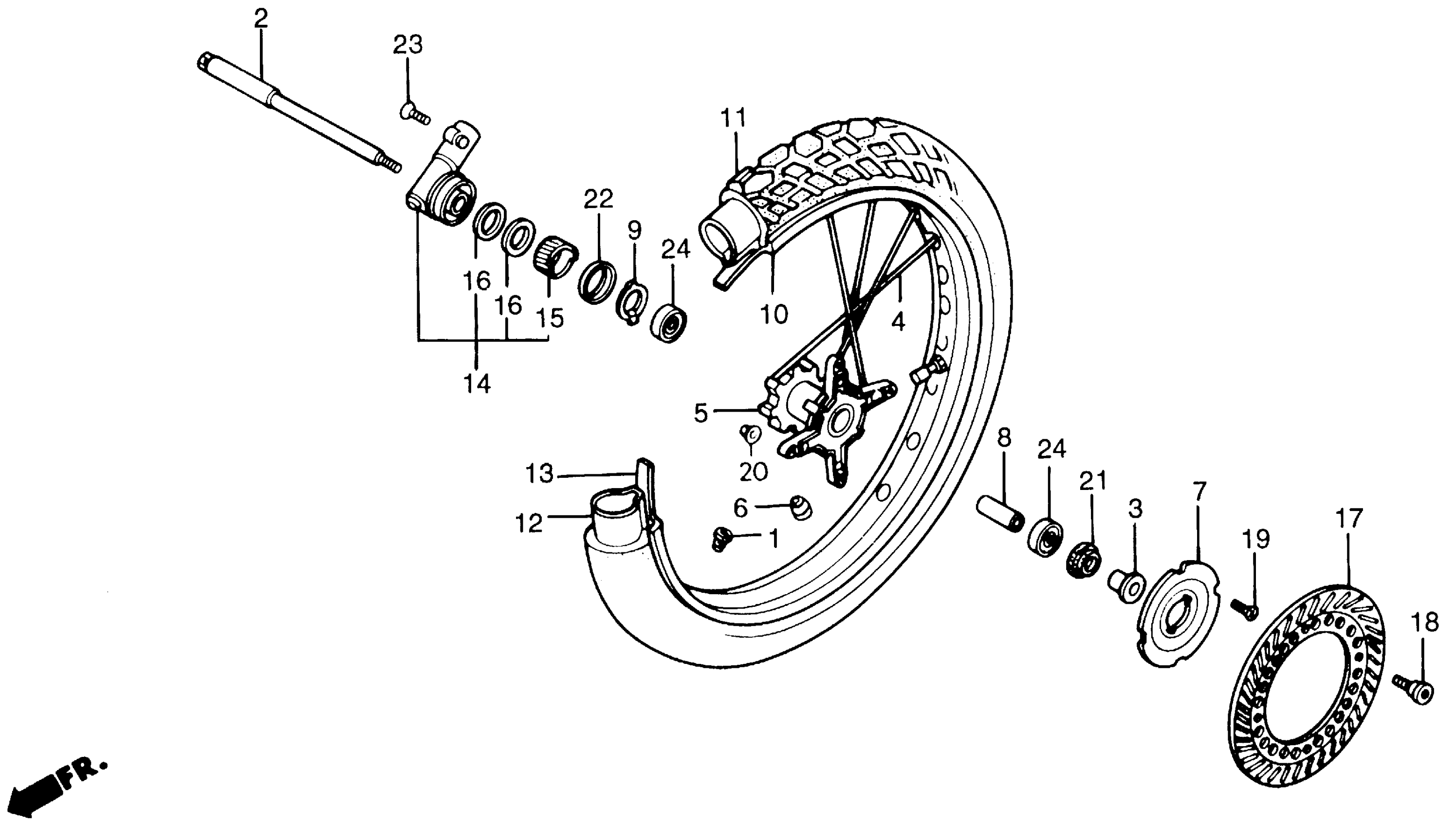

Honda NX650AC (89) MOTORCYCLE, JPN, VIN# JH2RD021-KK100004 FRONT WHEEL Diagram

#

Description
Price

1

CAP, RIM HOLE

42717-329-000

$4.21

2

AXLE, FR. WHEEL

44301-KBR-000

$62.80

2

AXLE, FR. WHEEL This part replaces 44301-KF0-000.

44301-KBR-000

$62.80

3

COLLAR, FR. WHEEL

44311-MG3-000

$18.02

4

SPOKE SET, FR. (A9X258) This part replaces 446A0-MN9-000.

44610-MN9-405

$4.35

4

SPOKE SET, FR. (A9X258)

44610-MN9-405

$4.35

5

HUB, FR. WHEEL *NH129M* (MAX GRAY METALLIC)

44601-MN9-010ZB

Unavailable

6

BALANCER (20G)

44606-283-000

$8.89

7

COVER, FR. HUB This part replaces 44610-MN9-000.

44610-MN9-010

$14.38

7

COVER, FR. HUB

44610-MN9-010

$14.38

8

COLLAR, FR. WHEEL DISTANCE

44620-MG3-000

$14.26

9

RETAINER, GEAR BOX

44680-MA0-000

$7.41

10

RIM, FR. WHEEL

44701-MN9-671

Unavailable

11

TIRE, FR. (90/90-21) (54S TW41) (BS) (NOT AVAILABLE)

44711-MN9-013

Unavailable

11

TIRE, FR. (90/90-21) (54S K560) (DUNLOP) (NOT AVAILABLE)

44711-MN9-015

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

12

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

13

FLAP, TIRE (BS)

44713-MG7-003

$8.05

13

FLAP, TIRE (1.40/1.60-21) (DUNLOP)

44713-400-004

$6.51

14

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)

44800-MN9-671

Unavailable

15

GEAR, SPEEDOMETER

44806-KF0-000

$35.39

16

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

17

DISK, FR. BRAKE This part replaces 45351-MN9-010.

45351-MN9-020

$265.79

17

DISK, FR. BRAKE

45351-MN9-020

$265.79

18

BOLT, FR. DISK (8X24) | Use up to Frame SN KK100504

90105-MN9-870

Unavailable

18

BOLT, RR. DISK (8X22) | Use from Frame SN KK100505

90105-ML0-730

$6.66

19

SCREW, OVAL (4X10)

90204-MM9-000

$2.39

20

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

20

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

21

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

21

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

22

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

22

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

22

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

23

SCREW, OVAL (5X20)

93700-05020-0A

$1.49

24

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85
