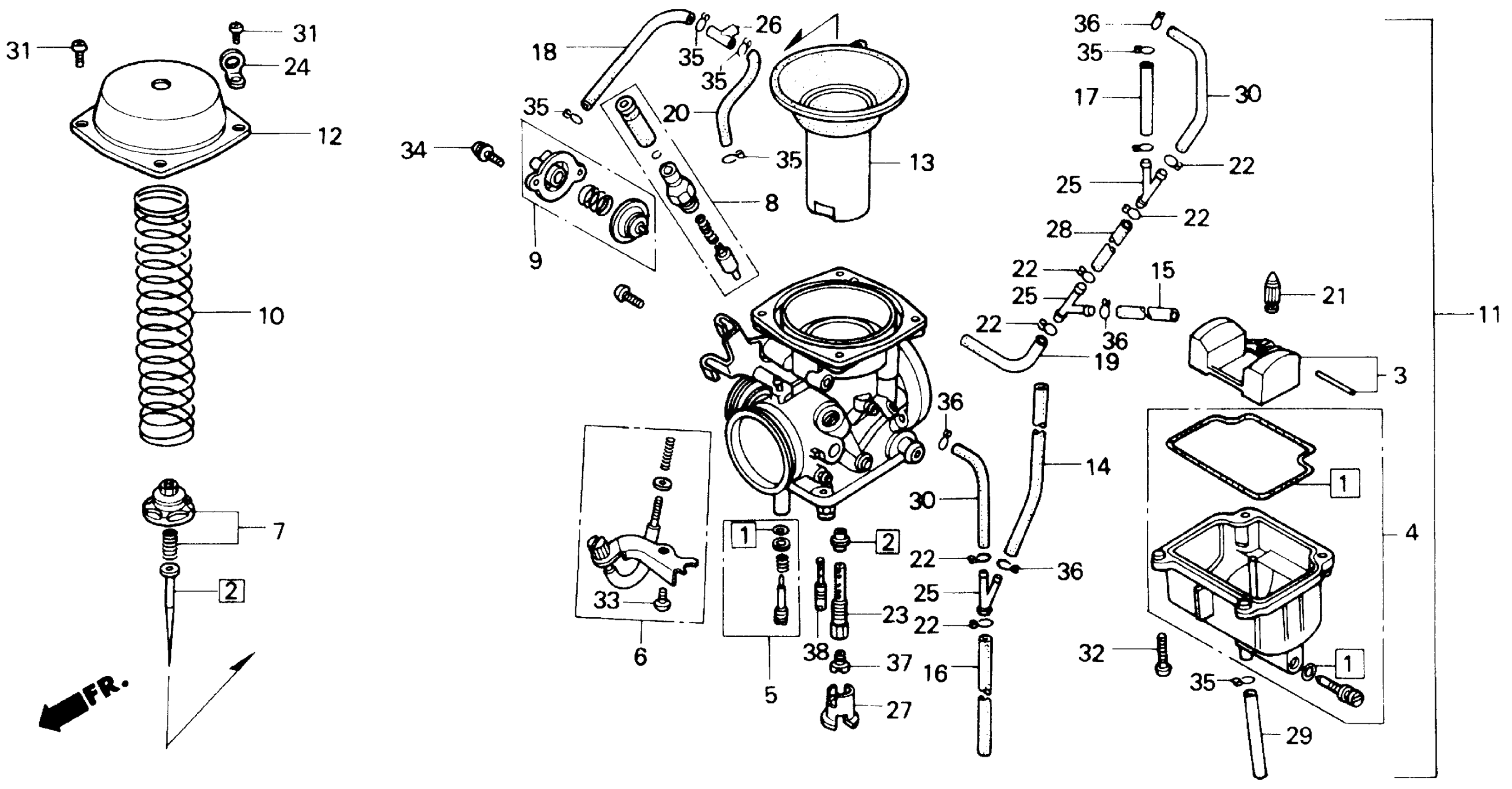

Honda NX650AC (89) MOTORCYCLE, JPN, VIN# JH2RD021-KK100004 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MK4-601.

16010-KPK-901

$7.41

1

GASKET SET This part replaces 16010-MY6-770.

16010-KPK-901

$7.41

2

NEEDLE SET, JET

16012-MN9-004

Unavailable

3

FLOAT SET This part replaces 16013-MA6-003.

16013-KR3-980

$55.27

4

CHAMBER SET, FLOAT

16015-MAK-003

$125.57

4

CHAMBER SET, FLOAT This part replaces 16015-MN9-004.

16015-MAK-003

$125.57

5

SCREW SET This part replaces 16016-KR3-671.

16016-MY6-770

$21.27

5

SCREW SET This part replaces 16016-ME5-671.

16016-MY6-770

$21.27

6

SCREW SET

16029-MN9-004

Unavailable

7

PLATE SET, VALVE

16037-MAK-000

$17.18

7

PLATE SET, VALVE This part replaces 16037-MN9-004.

16037-MAK-000

$17.18

8

VALVE SET, STARTER This part replaces 16046-MK2-711.

16046-MY6-770

$65.62

8

VALVE SET, STARTER This part replaces 16046-MK4-711.

16046-MY6-770

$65.62

8

VALVE SET, STARTER

16046-MY6-770

$65.62

9

VALVE SET, AIR CUT

16048-KAB-305

Unavailable

9

VALVE SET, AIR CUT This part replaces 16048-MN9-004.

16048-KAB-305

Unavailable

10

SPRING, COMPRESSION COIL

16051-KN8-003

Unavailable

11

CARBURETOR ASSY.

16100-MN9-742

Unavailable

12

TOP

16107-MK4-602

$50.43

13

PISTON, VACUUM

16111-MAN-620

Unavailable

13

PISTON, VACUUM This part replaces 16111-MN9-014.

16111-MAN-620

Unavailable

15

TUBE

16142-MN9-004

Unavailable

17

TUBE, AIR VENT This part replaces 16144-MN9-004.

16199-428-405

$3.10

18

TUBE, FUEL This part replaces 16145-MN9-004.

16199-KG4-405

$9.49

18

TUBE, FUEL This part replaces 16198-HC0-405.

16199-KG4-405

$9.49

19

TUBE

16146-MN9-004

Unavailable

20

TUBE, AIR VENT This part replaces 16147-MN9-004.

16199-428-405

$3.10

20

TUBE

16199-428-405

$3.10

21

VALVE, FLOAT

16155-MN9-004

$30.35

22

CLIP, TUBE

16163-KM4-004

$2.92

23

HOLDER, NEEDLE JET

16165-MN9-004

Unavailable

24

BINDER

16179-HA0-003

$12.85

25

JOINT

16180-ML6-671

$15.97

26

T-JOINT

16180-195-731

$12.95

27

PLATE, BUFFER

16185-MN9-004

$12.78

28

TUBE

16198-KG0-931

Unavailable

30

TUBE

16199-MN9-004

$13.48

31

SCREW, PAN (4X8)

93500-04008-0A

$1.49

32

SCREW, PAN (4X14)

93500-04014-0A

$1.49

33

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

33

SCREW, PAN (6X10)

93500-06010-0A

$1.49

34

SCREW-WASHER (4X10)

93892-04010-08

$1.49

35

CLIP, TUBE (B7)

95002-02070

$1.80

36

CLIP, TUBE (B8)

95002-02080

$1.80

37

JET, MAIN (#155) This part replaces 99101-393-1550.

99101-443-1550

$12.21

38

JET, SLOW (#48) This part replaces 99103-420-0480.

99104-HP1-0480

Unavailable

38

JET, SLOW (#48)

99104-HP1-0480

Unavailable
