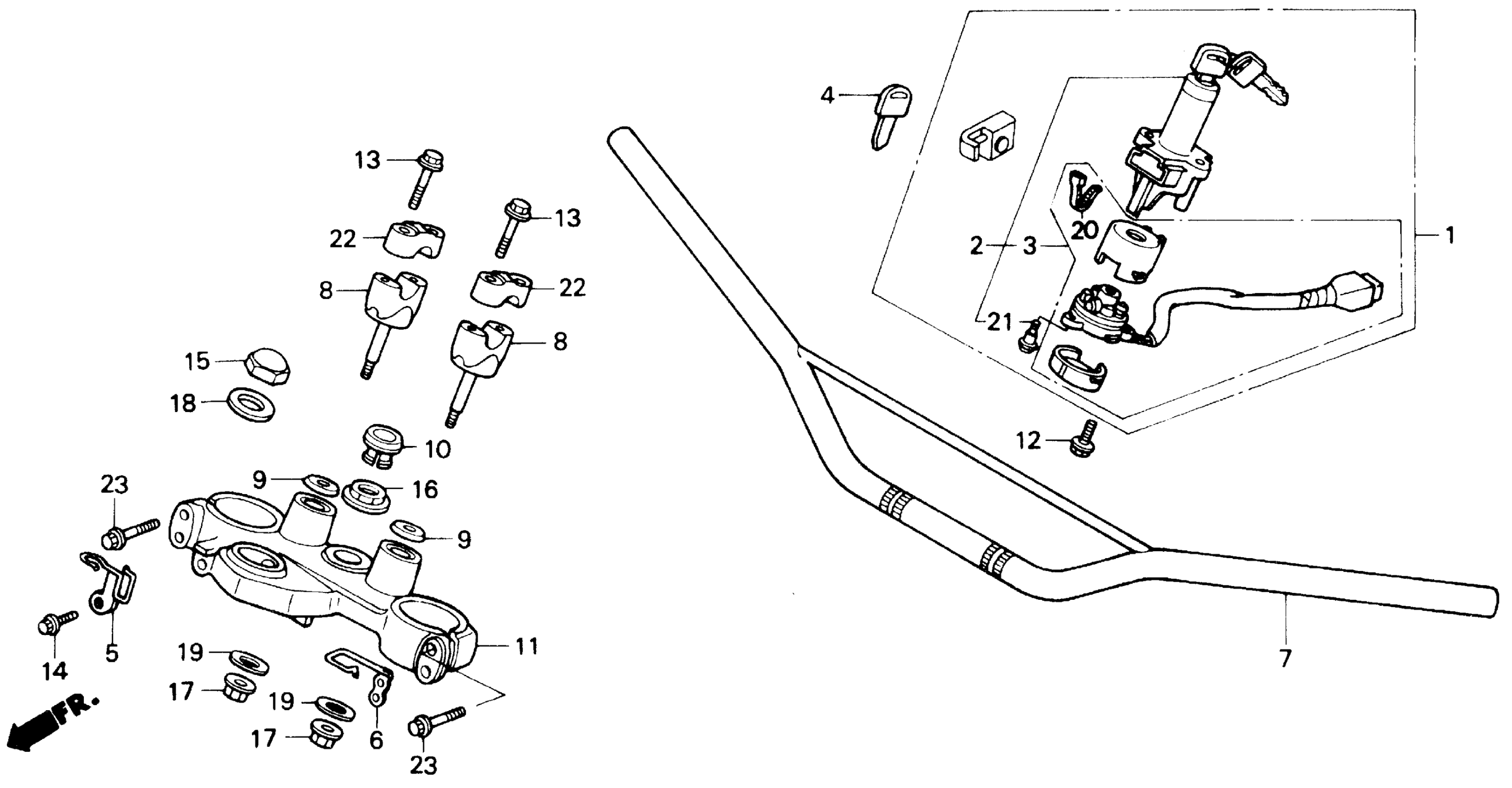

Honda NX650AC (88) MOTORCYCLE, JPN, VIN# JH2RD021-JK000003 TO JH2RD021-JK000473 HANDLEBAR Diagram

#

Description
Price

1

LOCK SET

35010-MN9-670

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-MN9-007.

35100-MN9-017

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK

35100-MN9-017

Unavailable

3

BASE, CONTACT This part replaces 35101-MN9-711.

35101-MN9-712

Unavailable

3

BASE, CONTACT

35101-MN9-712

Unavailable

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-KB7-810.

35121-KW3-771

$10.10

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-KB7-810.

35122-KW3-771

$10.10

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$10.10

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

5

CLIP, BRAKE HOSE (UPPER)

45461-MN9-000

Unavailable

6

GUIDE, CLUTCH CABLE

50296-MAN-710

Unavailable

6

GUIDE, CLUTCH CABLE This part replaces 50296-MN9-000.

50296-MAN-710

Unavailable

7

HANDLEBAR *NH105* (MAT BLACK)

53100-MN9-670ZA

Unavailable

8

HOLDER, HANDLE (LOWER)

53132-KL3-670

$21.95

9

CAP, HANDLEBAR

53135-KA3-730

Unavailable

11

BRIDGE, FORK TOP

53220-MN9-670

Unavailable

12

BOLT, FLANGE (8X19) | Use up to Frame SN JK000433

90104-MJ1-000

$6.31

12

BOLT, COMBINATION SWITCH SETTING | Use from Frame SN JK000434 This part replaces 90105-GJ1-860.

90105-KE1-721

Unavailable

12

BOLT, COMBINATION SWITCH SETTING | Use from Frame SN JK000434

90105-KE1-721

Unavailable

13

BOLT, FLANGE (8X36)

90111-362-000

$4.80

14

BOLT, FLANGE (6X10) This part replaces 90170-MG3-000.

95701-06010-00

$1.49

15

NUT, STEERING STEM (NOT AVAILABLE)

90304-MC9-670

Unavailable

17

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

17

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

18

WASHER, STEERING STEM

90503-349-690

Unavailable

19

WASHER, HANDLE HOLDER

90535-KB9-000

$6.14

20

BAND, SELF-LOCK

91058-MG9-681

$2.21

21

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

21

SCREW, TAPPING (3X16) This part replaces 91059-MK4-601.

91059-KY2-711

$2.97

22

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

23

BOLT, FLANGE (8X40)

96400-08040-00

$2.02
