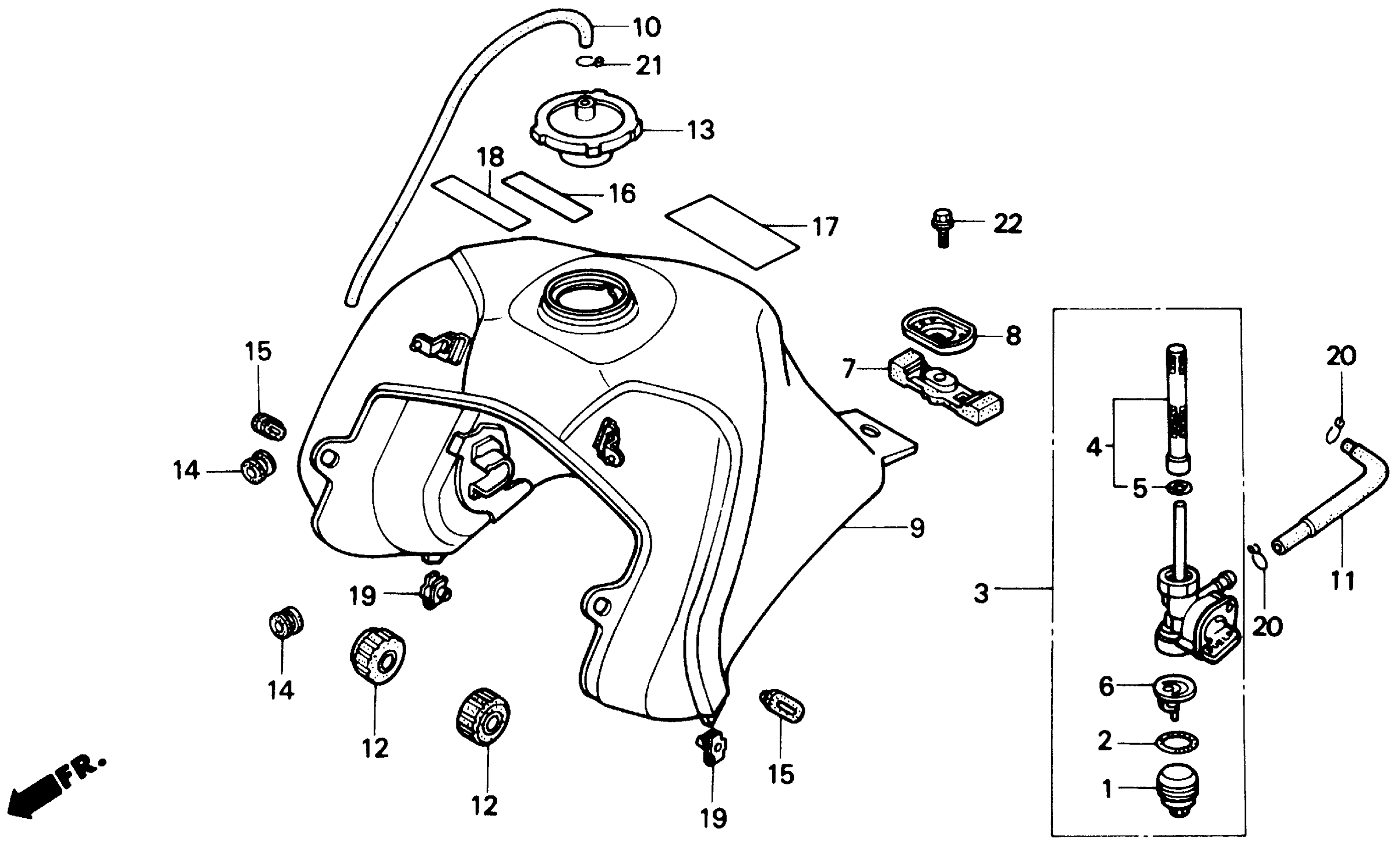

Honda NX650AC (88) MOTORCYCLE, JPN, VIN# JH2RD021-JK000003 TO JH2RD021-JK000473 FUEL TANK Diagram

#

Description
Price

1

CUP, FUEL STRAINER | Use up to Frame SN JK000471 This part replaces 16081-195-701.

16967-GA6-671

$23.28

1

CUP, FUEL STRAINER

16967-GA6-671

$23.28

2

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

3

PETCOCK ASSY. | Use up to Frame SN JK000433 This part replaces 16950-MM8-000.

16950-MM8-020

$114.42

3

PETCOCK ASSY. | Use up to Frame SN JK000433 This part replaces 16950-MM8-010.

16950-MM8-020

$114.42

3

PETCOCK ASSY. | Use up to Frame SN JK000433

16950-MM8-020

$114.42

3

PETCOCK ASSY. | Use from Frame SN JK000434 to JK000471 This part replaces 16950-MN9-000.

16950-MN9-015

Unavailable

3

PETCOCK ASSY. | Use from Frame SN JK000472 This part replaces 16950-MN9-005.

16950-MN9-015

Unavailable

3

PETCOCK ASSY. | Use from Frame SN JK000434

16950-MN9-015

Unavailable

4

SCREEN SET, FUEL STRAINER | Use from Frame SN JK000434

16952-KPM-003

Unavailable

4

SCREEN SET, FUEL STRAINER | Use from Frame SN JK000434 This part replaces 16952-MG2-005.

16952-KPM-003

Unavailable

4

FILTER SET, FUEL | Use up to Frame SN JK000433 This part replaces 16952-422-015.

16952-469-005

Unavailable

4

FILTER SET, FUEL | Use up to Frame SN JK000433

16952-469-005

Unavailable

5

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

5

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

6

FILTER, CUP

16959-471-831

$9.35

7

RUBBER, RR. FUEL TANK

17503-KG0-000

$20.54

8

WASHER, TANK MOUNTING

17508-MN9-000

Unavailable

9

TANK, FUEL *B123MU* (ASTRO BLUE METALLIC-U) This part replaces 17510-MN9-000ZA.

17510-MN9-020ZA

Unavailable

9

TANK, FUEL *B123MU* (ASTRO BLUE METALLIC-U) This part replaces 17510-MN9-010ZA.

17510-MN9-020ZA

Unavailable

9

TANK, FUEL *B123MU* (ASTRO BLUE METALLIC-U)

17510-MN9-020ZA

Unavailable

11

TUBE, FUEL (7.3)

17524-MN9-000

Unavailable

12

CUSHION, FR. FUEL TANK This part replaces 17611-MM9-000.

17611-MG2-000

$11.43

13

CAP, FUEL FILLER This part replaces 17620-KE1-003.

17620-KE1-023

$42.29

13

CAP, FUEL FILLER This part replaces 17620-KE1-013.

17620-KE1-023

$42.29

15

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

16

LABEL, ENGINE OIL CAUTION *NH0* (CHAMPIONSHIP WHITE)

87515-MM0-770ZB

Unavailable

17

MARK, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

87560-181-760ZB

Unavailable

18

LABEL, FUEL (TYPEW) This part replaces 87586-MR6-670ZB.

87586-MR6-670ZD

Unavailable

18

LABEL, FUEL (TYPEW)

87586-MR6-670ZD

Unavailable

19

NUT, CLIP (6MM)

90344-964-003

$3.85

20

CLIP, TUBE (B12)

95002-02120

$2.00

21

CLIP, TUBE (C9)

95002-50000

$1.49

22

BOLT, FLANGE (8X14)

95701-08014-08

$1.80
