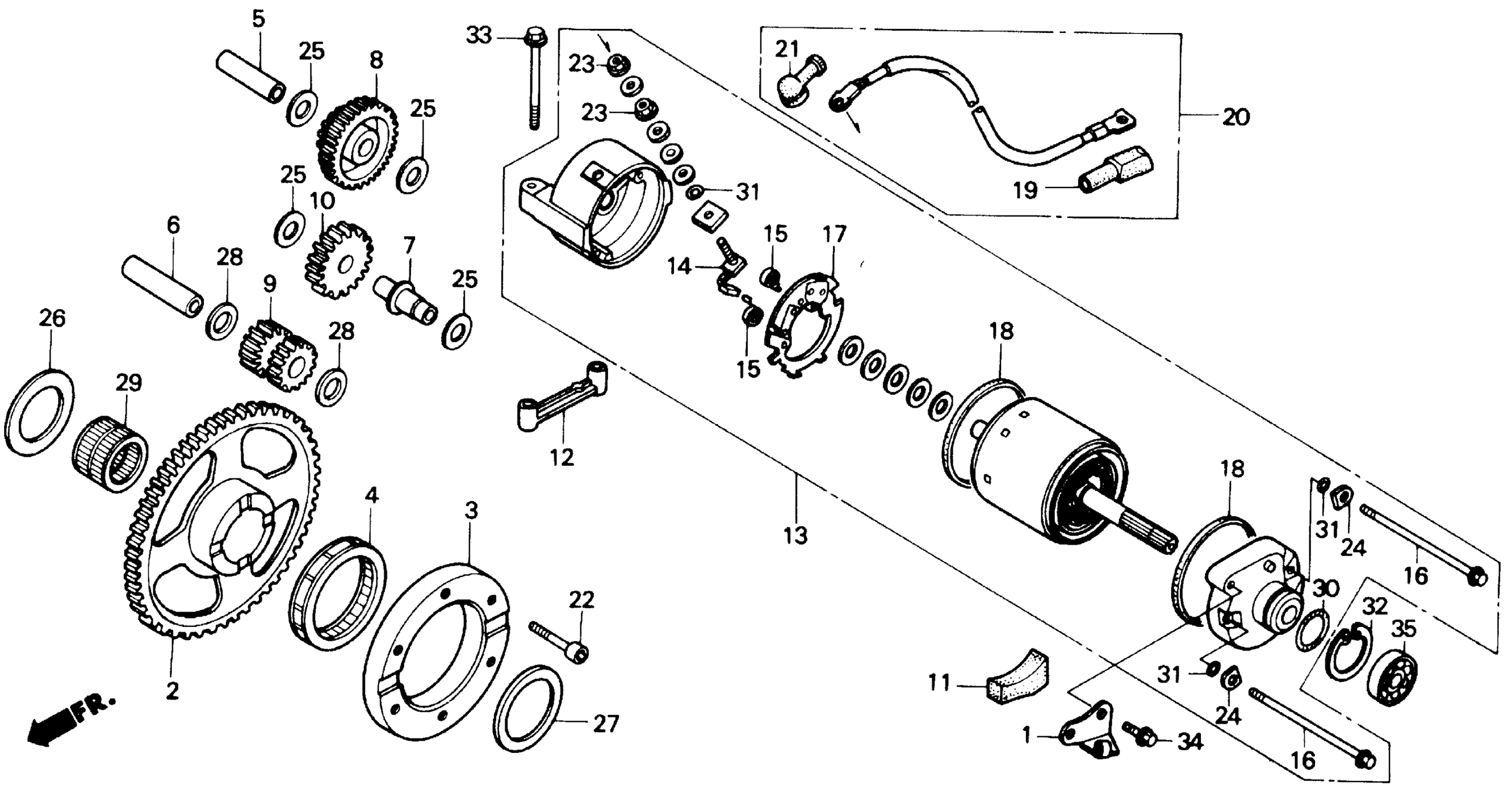

Honda NX650A (89) MOTORCYCLE, JPN, VIN# JH2RD020-KK100001 STARTING MOTOR Diagram

#

Description
Price

1

HOLDER, CLUTCH CABLE

22838-MN9-000

Unavailable

2

GEAR, STARTER DRIVEN (80T)

28110-MN9-000

$221.88

3

CLUTCH OUTER, ONE-WAY

28121-MN9-003

$109.12

4

CLUTCH, ONE-WAY This part replaces 28125-MK5-023.

28126-MK5-004

$85.84

4

CLUTCH, ONE-WAY

28126-MK5-004

$85.84

5

SHAFT C, IDLE GEAR

28132-MK5-000

$9.10

6

SHAFT A, IDLE GEAR

28133-MN9-000

$9.10

7

SHAFT B, IDLE GEAR

28134-MK5-000

Unavailable

8

GEAR C, IDLE (52T/13T)

28232-MN9-000

Unavailable

9

GEAR A, IDLE (13T/14T)

28233-MN9-000

Unavailable

10

GEAR B, IDLE (21T)

28234-MN9-000

Unavailable

11

RUBBER, STARTER MOTOR

31031-MK5-000

$5.38

12

SPACER

31190-MK4-600

$22.14

13

STARTER MOTOR ASSY. This part replaces 31200-MN9-003.

31200-MN9-013

$692.06

13

MOTOR ASSY., STARTER

31200-MN9-013

$692.06

14

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.19

15

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

16

BOLT, SETTING

31205-MN4-008

$5.29

17

HOLDER SET, BRUSH

31206-MN4-008

$20.95

18

RING

31207-KS5-901

$2.90

19

COVER A, STARTER MAGNETIC

32404-MK3-000

Unavailable

20

CABLE, STARTER MOTOR This part replaces 32410-MN9-000.

32410-MY2-620

Unavailable

20

CABLE, STARTER MOTOR

32410-MY2-620

Unavailable

21

COVER, STARTER MOTOR TERMINAL

32411-230-000

$5.96

21

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$5.96

22

BOLT, SOCKET (8MM)

90010-MK5-000

$3.12

23

NUT-WASHER (6MM)

90071-MB0-000

$1.88

24

WASHER, STEEL PLATE

90122-MN4-008

$2.80

25

WASHER, THRUST (12.2MM)

90401-MK5-000

$2.80

26

WASHER, THRUST (34.1MM)

90402-MK5-000

$12.10

27

WASHER, THRUST (34.1MM)

90403-MK5-000

$9.93

28

WASHER (14MM)

90451-155-000

$3.52

29

BEARING, NEEDLE (34X40X23.7) (TOYO)

91061-MN9-003

$38.57

30

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

30

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

31

O-RING

91320-MB0-000

$2.20

32

CIRCLIP (INNER) (32MM)

94520-32000

$1.61

33

BOLT, FLANGE (6X55)

95801-06055-00

Unavailable

34

BOLT, FLANGE (6X16)

96001-06016-07

$0.96

35

BEARING, RADIAL BALL (6201)

96100-62010-00

$7.52
