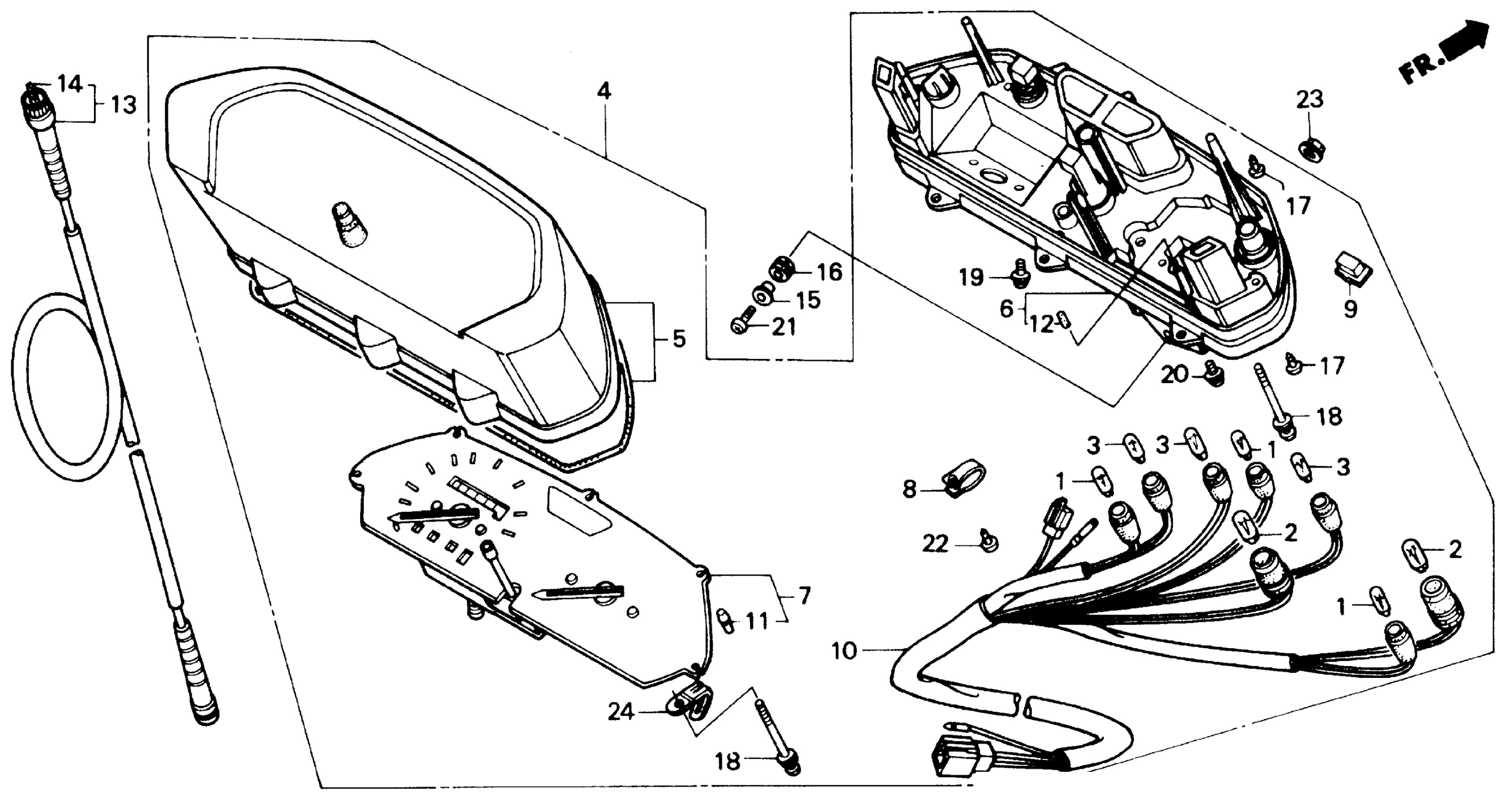

Honda NX650A (89) MOTORCYCLE, JPN, VIN# JH2RD020-KK100001 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB, WEDGE BASE (T6.5) (12V 3W)

34908-KM1-671

$7.08

2

BULB, WEDGE BASE (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

3

BULB, WEDGE BASE (12V 1.7W)

34908-MG9-951

$2.33

4

METER ASSY., COMBINATION

37100-MN9-671

Unavailable

5

CASE ASSY. (UPPER)

37102-MN9-791

Unavailable

6

CASE ASSY. (LOWER)

37103-MN9-771

Unavailable

6

CASE ASSY. (LOWER) This part replaces 37103-MN9-791.

37103-MN9-771

Unavailable

7

METER ASSY., SPEED & TACHO

37110-MN9-671

Unavailable

8

CLAMP

37215-MB6-831

$2.65

9

GROMMET

37216-GJ8-701

Unavailable

10

SOCKET

37222-MN9-611

Unavailable

10

SOCKET This part replaces 37222-MN9-791.

37222-MN9-611

Unavailable

11

RUBBER, CUSHION

37304-KM7-911

$9.11

12

RUBBER, CUSHION

37304-198-901

$3.89

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-MN9-000.

44830-MY2-620

Unavailable

13

CABLE ASSY., SPEEDOMETER

44830-MY2-620

Unavailable

14

CABLE (INNER)

44831-MN9-000

Unavailable

15

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

16

CUSHION, AIR CLEANER

80105-MG9-000

$2.47

17

SCREW, TAPPING (4X14)

90032-KW3-008

$3.12

18

SCREW, TAPPING (4X3) This part replaces 90032-ML7-671.

90133-SG0-A01

Unavailable

18

SCREW, TAPPING (4X3)

90133-SG0-A01

Unavailable

19

SCREW, FLANGE (4X10)

90101-GG2-008

Unavailable

20

SCREW-WASHER (3X8)

90102-KM9-008

Unavailable

21

SCREW, PAN (6X16)

93500-06016-0A

$1.49

22

SCREW, TAPPING (4X12)

93903-24380

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

CLIP (2X80)

94591-28000

Unavailable
