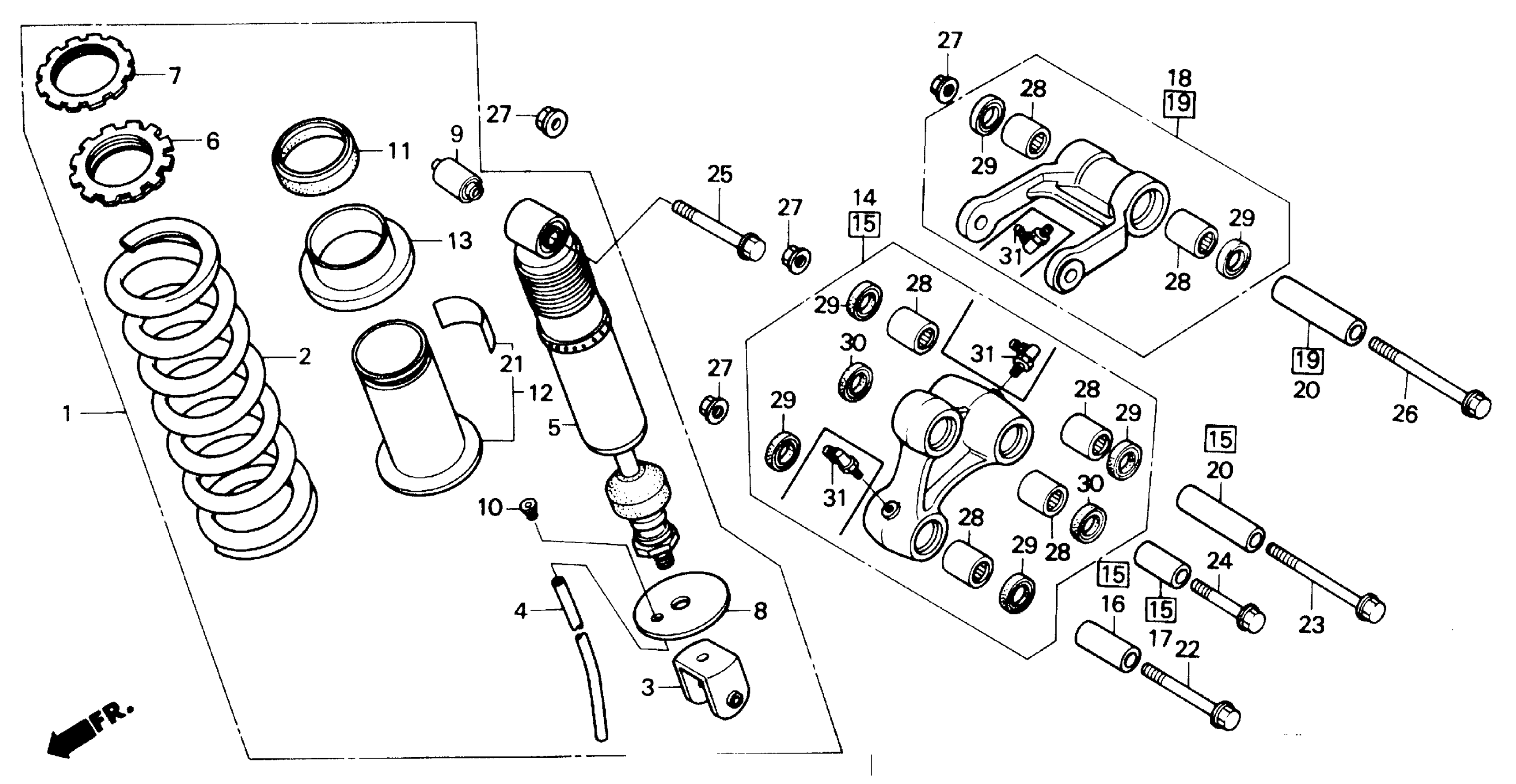

Honda NX650A (89) MOTORCYCLE, JPN, VIN# JH2RD020-KK100001 SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. *NH1* (SHOWA) (BLACK)

52400-MN9-871ZA

Unavailable

2

SPRING, RR. SHOCK ABSORBER *NH1* (SHOWA) (BLACK)

52401-MN9-702ZB

Unavailable

3

METAL, JOINT

52403-MM9-003

Unavailable

4

PIPE, DRAIN

52405-MK5-003

Unavailable

5

DAMPER, RR. (SHOWA)

52410-MN9-671

Unavailable

6

ADJUSTER, SPRING (SHOWA)

52422-MN9-701

$35.82

7

NUT, ADJUSTER (SHOWA)

52423-MN9-701

$27.77

8

STOPPER, SPRING SEAT (NOT AVAILABLE)

52424-KB7-003

Unavailable

9

BUSH, DAMPER (LOWER)

52451-MA0-000

$15.12

10

JOINT, PIPE

52456-KB7-003

Unavailable

11

DUST SEAL (SHOWA)

52457-MN9-701

Unavailable

12

GUIDE, SPRING (SHOWA)

52458-MN9-871

Unavailable

13

SEAT C, SPRING (SHOWA)

52459-KB7-003

Unavailable

15

ARM ASSY., CUSHION

52460-MN9-840

Unavailable

16

COLLAR, CUSHION ARM PIVOT

52463-MN9-000

Unavailable

17

COLLAR, DAMPER (LOWER)

52464-MN9-000

Unavailable

19

ROD ASSY., SHOCK CONNECTING

52470-MN9-840

Unavailable

20

COLLAR, CONNECTING ROD PIVOT

52473-MN9-000

Unavailable

21

LABEL, RR. DAMPER This part replaces 87516-KY7-911.

87516-MBL-610

$4.31

22

BOLT, FLANGE (10X70)

90128-GC5-000

$14.33

23

BOLT, FLANGE (10X100)

90108-MR8-000

Unavailable

23

BOLT, FLANGE (10X100) This part replaces 90153-MA1-000.

90108-MR8-000

Unavailable

24

BOLT, FLANGE (10X43)

90153-MC4-003

Unavailable

25

BOLT, FLANGE (10X66)

90182-MB2-003

$9.21

26

BOLT, FLANGE (10X100)

90188-MG7-003

$11.12

27

NUT, U (10MM)

90304-GE8-003

$3.67

28

BEARING, NEEDLE (17.5X24.5X22)

91079-KA3-831

$27.76

29

OIL SEAL (17.5X26X5)

91205-KT2-005

$5.79

30

SEAL, CUSHION ARM (17.5X26X2.5)

91261-MN9-005

Unavailable
