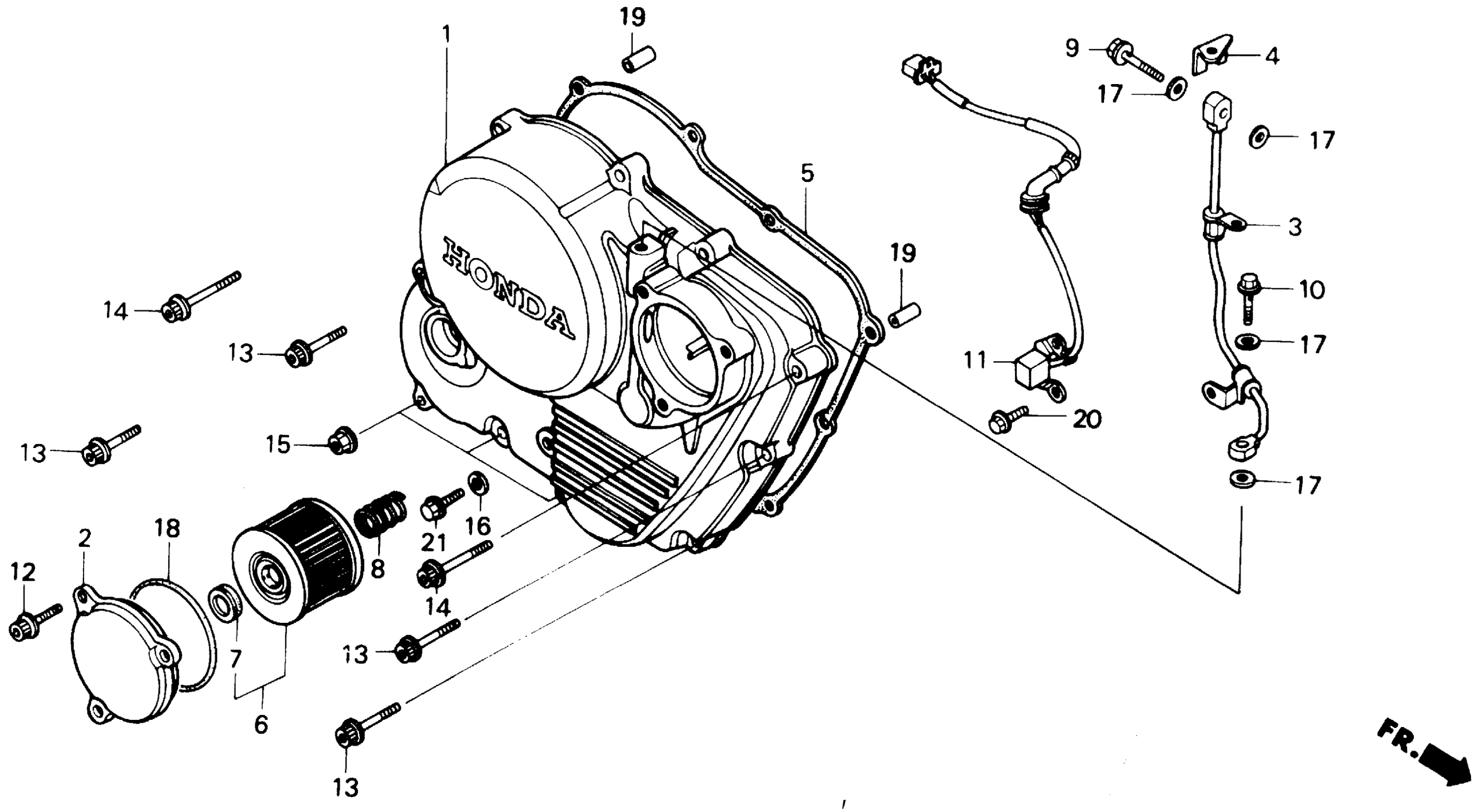

Honda NX650A (89) MOTORCYCLE, JPN, VIN# JH2RD020-KK100001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-MN9-000

Unavailable

2

COVER, OIL FILTER

11333-MK2-680

Unavailable

3

PIPE, OIL PASSAGE

11335-MN9-000

$65.93

4

STOPPER, OIL PIPE

11336-MN1-670

$12.46

5

GASKET, R. CRANKCASE COVER

11394-MN1-700

$20.28

5

GASKET, R. CRANKCASE COVER This part replaces 11394-MN9-000.

11394-MN1-700

$20.28

5

GASKET, R. CRANKCASE COVER This part replaces 11394-MN9-306.

11394-MN1-700

$20.28

6

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.54

6

ELEMENT, OIL FILTER

15410-KF0-315

$5.54

6

ELEMENT, OIL FILTER This part replaces 15412-KF0-010.

15410-KF0-315

$5.54

7

RUBBER, FILTER

15413-MC8-000

$3.35

8

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

9

BOLT, FLANGE (8X30)

15531-KN8-730

$7.87

10

BOLT, FLANGE (8X30)

15532-MA6-000

$9.21

11

GENERATOR ASSY., PULSE This part replaces 30300-MN9-003.

30300-MY2-620

Unavailable

11

GENERATOR ASSY., PULSE

30300-MY2-620

Unavailable

12

BOLT, FLANGE SOCKET (6X18)

90004-ML4-610

$2.90

13

BOLT, FLANGE SOCKET (6X25)

90091-KF0-000

$3.71

14

BOLT, FLANGE SOCKET (6X40)

90093-KF0-000

$4.35

15

NUT, U (6MM)

90301-MG3-000

$6.91

16

WASHER (11MM)

90425-300-000

$2.66

17

GASKET

90544-439-930

$2.13

18

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

19

PIN, DOWEL (8X20)

94301-08200

$2.25

20

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

21

BOLT, FLANGE (6X16)

95701-06016-07

$1.55
