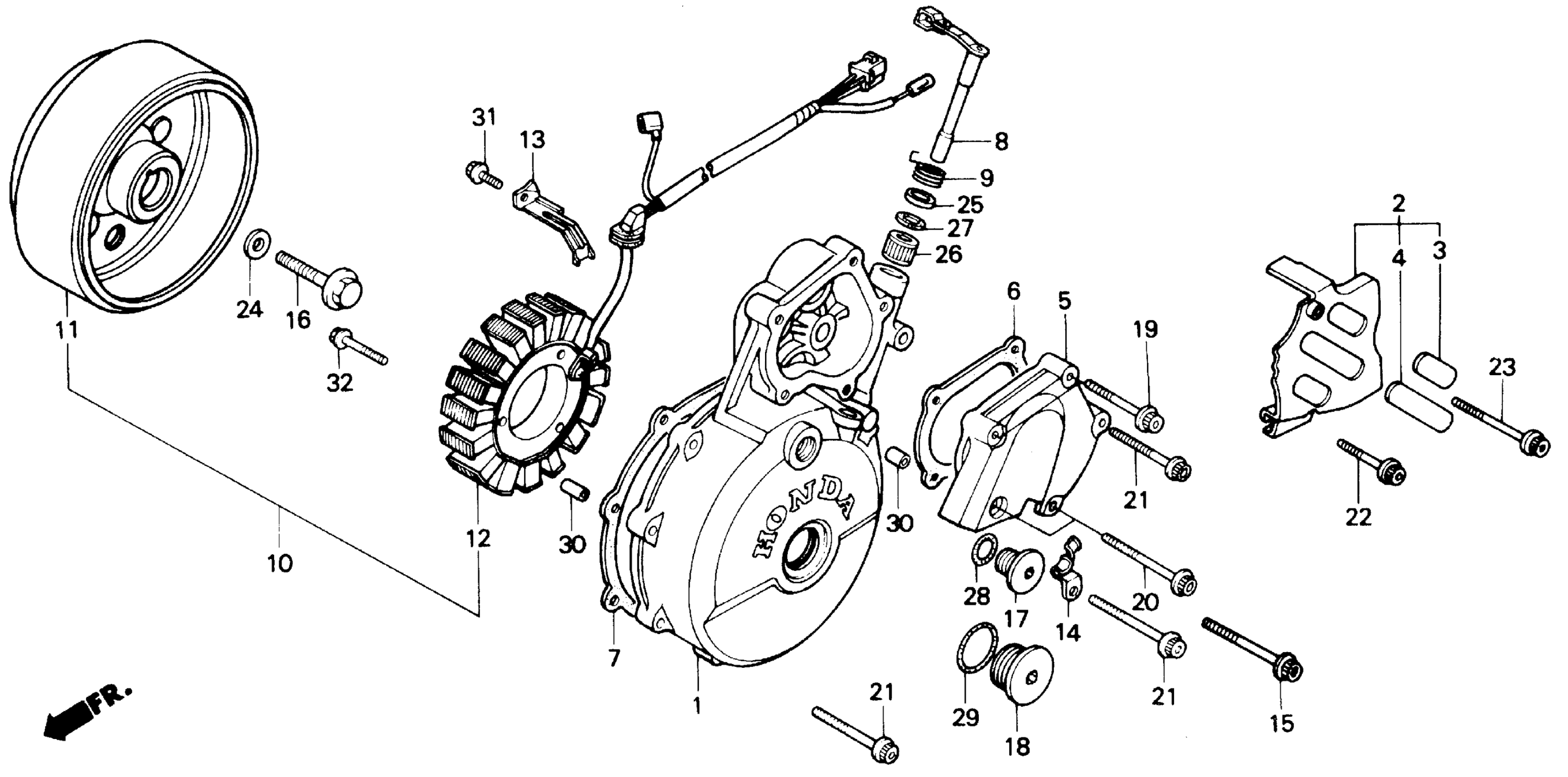

Honda NX650A (89) MOTORCYCLE, JPN, VIN# JH2RD020-KK100001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE This part replaces 11341-MN9-000.

11341-MN9-010

Unavailable

1

COVER, L. CRANKCASE

11341-MN9-010

Unavailable

2

COVER SET, L. RR.

11350-MW2-305

Unavailable

2

COVER SET, L. RR. This part replaces 11351-MN9-000.

11350-MW2-305

Unavailable

3

MARK A

11352-MN9-300

Unavailable

4

MARK B

11353-MN9-300

Unavailable

5

COVER, STARTER

11361-MN9-000

Unavailable

6

GSKT, STARTER COVER This part replaces 11367-MN9-000.

11367-MY2-624

$6.82

6

GSKT, STARTER COVER This part replaces 11367-MN9-306.

11367-MY2-624

$6.82

6

GSKT, STARTER COVER This part replaces 11367-MY2-621.

11367-MY2-624

$6.82

7

GASKET This part replaces 11395-MN9-000.

11395-MY2-622

$14.15

7

GASKET This part replaces 11395-MN9-920.

11395-MY2-622

$14.15

7

GASKET This part replaces 11395-MY2-620.

11395-MY2-622

$14.15

8

LEVER, CLUTCH

22810-MK5-000

$63.98

9

SPRING, CLUTCH LEVER

22815-MG3-000

$4.48

10

ALTERNATOR ASSY., FLYWHEEL TYPE (HITACHI) This part replaces 31100-MN9-015.

31100-MN9-025

Unavailable

10

ALTERNATOR ASSY., FLYWHEEL TYPE (HITACHI)

31100-MN9-025

Unavailable

11

FLYWHEEL (HITACHI)

31110-MN9-005

Unavailable

12

STATOR (HITACHI) This part replaces 31120-MN9-015.

31120-MN9-025

Unavailable

12

STATOR (HITACHI)

31120-MN9-025

Unavailable

13

CLAMP, WIRE

32111-MK5-000

$6.00

14

CLIP, NEUTRAL SWITCH WIRE

35610-MK5-000

$4.28

15

BOLT, SOCKET (6X40)

90007-KN8-730

$4.69

16

BOLT, FLANGE (12X50)

90023-471-000

$13.00

17

CAP (14MM) This part replaces 90084-HB3-000.

90084-MN8-010

$12.82

17

CAP (14MM)

90084-MN8-010

$12.82

18

CAP (30MM)

90087-HB5-000

$16.69

19

BOLT, FLANGE SOCKET (6X32)

90091-MG3-000

$3.71

20

BOLT, FLANGE SOCKET (6X70)

90092-KK1-000

Unavailable

21

BOLT, FLANGE SOCKET (6X40)

90093-KF0-000

$4.35

22

BOLT, SPECIAL FLANGE (6X20)

90097-MK5-000

Unavailable

23

BOLT, SPECIAL FLANGE (6X60)

90098-MK5-000

Unavailable

24

WASHER (12X30X4.5)

90402-PB2-000

$10.36

25

WASHER, BRAKE ARM

90525-GC4-700

$2.34

26

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

26

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

27

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

28

O-RING (13.8X2.5)

91303-377-000

$3.42

29

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

30

PIN, DOWEL (8X14)

94301-08140

$2.25

31

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

32

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
