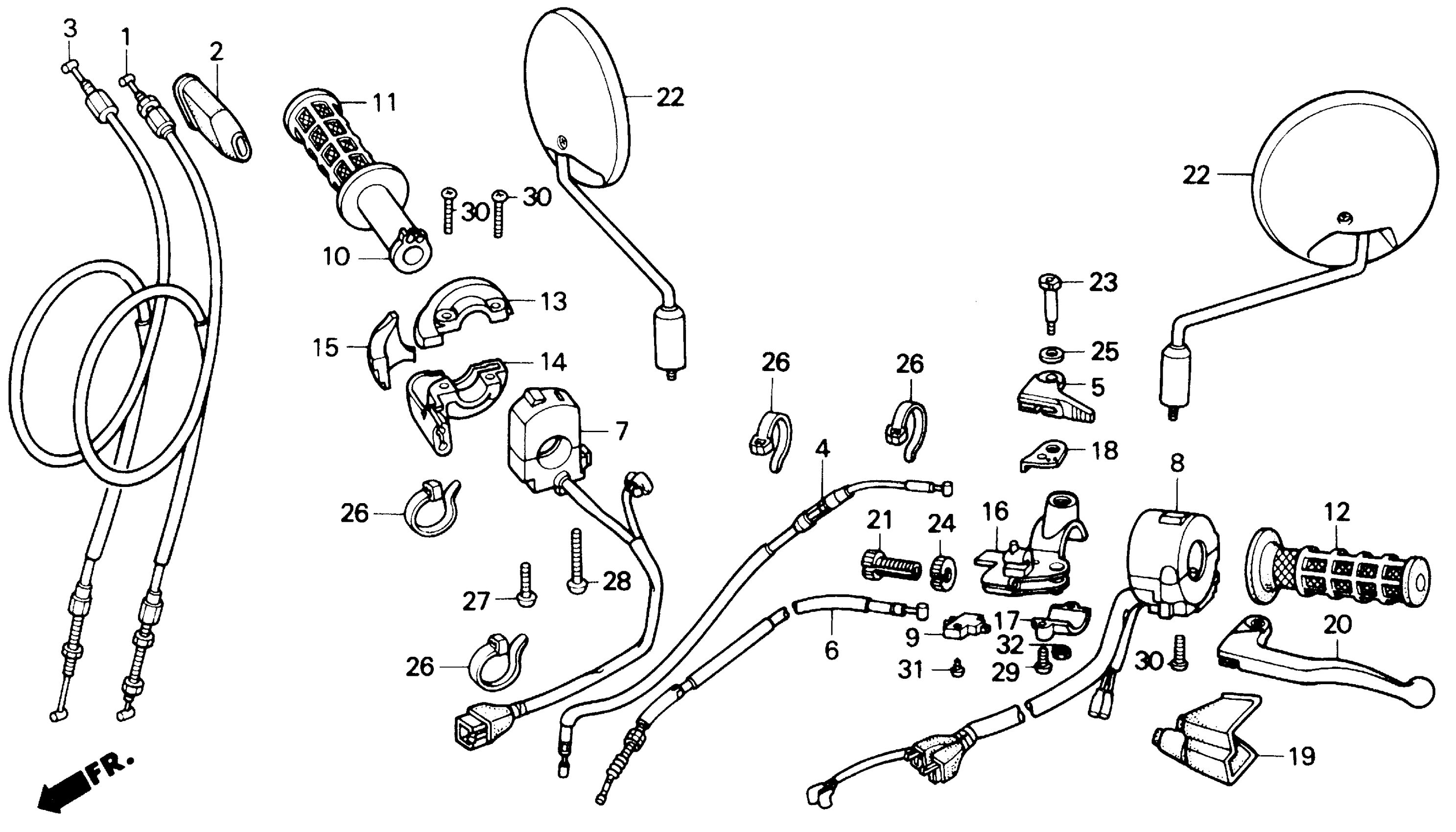

Honda NX650A (89) MOTORCYCLE, JPN, VIN# JH2RD020-KK100001 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MN9-000

Unavailable

2

COVER, THROTTLE CABLE

17913-KB7-000

$9.52

3

CABLE B, THROTTLE

17920-MN9-000

Unavailable

4

CABLE, CHOKE

17950-MN9-000

Unavailable

5

LEVER, CHOKE This part replaces 17961-MG2-000.

17961-MG2-010

$16.19

5

LEVER, CHOKE

17961-MG2-010

$16.19

6

CABLE, CLUTCH

22870-MN9-000

Unavailable

7

SWITCH, STARTER STOP This part replaces 35130-MN9-670.

35130-MN9-671

Unavailable

8

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-MN9-670

Unavailable

9

SWITCH ASSY., CLUTCH

35330-MK5-003

$15.95

10

PIPE, THROTTLE GRIP This part replaces 53141-429-000.

53141-429-010

$20.10

10

PIPE, THROTTLE GRIP

53141-429-010

$20.10

11

GRIP, R. HANDLE This part replaces 53165-MK5-010.

53165-MGW-305

$9.25

11

GRIP, R. HANDLE This part replaces 53165-MN9-000ZB.

53165-MGW-305

$9.25

12

GRIP, L. HANDLE (COO) This part replaces 53166-MK5-010.

53166-MGW-305

$9.31

12

GRIP, L. HANDLE (COO) This part replaces 53166-MN9-000ZB.

53166-MGW-305

$9.31

13

HOUSING, THROTTLE (UPPER)

53167-KB7-000

$37.99

14

HOUSING, THROTTLE (LOWER)

53168-MG7-000

$33.61

15

SLIDER, THROTTLE CABLE

53169-KB7-000

$7.37

16

BRACKET, L. HANDLE LEVER

53172-MK5-000

$26.34

17

HOLDER, L. LEVER BRACKET

53174-KE1-000

$14.11

18

PLATE, POINT This part replaces 53176-MK5-000.

53176-MM9-000

$3.77

18

PLATE, POINT

53176-MM9-000

$3.77

19

COVER, L. HANDLEBAR

53177-MG7-000

$8.78

20

LEVER, L. HANDLEBAR

53178-MG7-003

$32.62

21

BOLT, CABLE ADJUSTING

53192-KA4-710

$9.43

22

MIRROR ASSY., R. BACK This part replaces 88110-MN9-003.

88110-MV1-000

Unavailable

22

MIRROR ASSY., R. BACK

88110-MV1-000

Unavailable

23

BOLT, HANDLE LEVER PIVOT

90113-MG2-000

$5.63

24

NUT, FIXING This part replaces 90321-KA4-700.

90321-KF0-000

$8.76

24

NUT, FIXING

90321-KF0-000

$8.76

25

WASHER (8MM)

90405-463-000

$3.21

26

BAND, WIRE

90650-KW3-000

$4.16

27

SCREW, PAN (4X32)

93500-04032-0G

$0.43

28

SCREW, PAN (4X45)

93500-04045-0G

$0.78

29

SCREW, PAN (5X16)

93500-05016-0G

$0.83

30

SCREW, PAN (5X20)

93500-05020-0G

$0.75

31

SCREW, TAPPING (3X12)

93901-32320

$0.83

32

NUT, HEX. (6MM)

94001-06070-0S

$1.19
