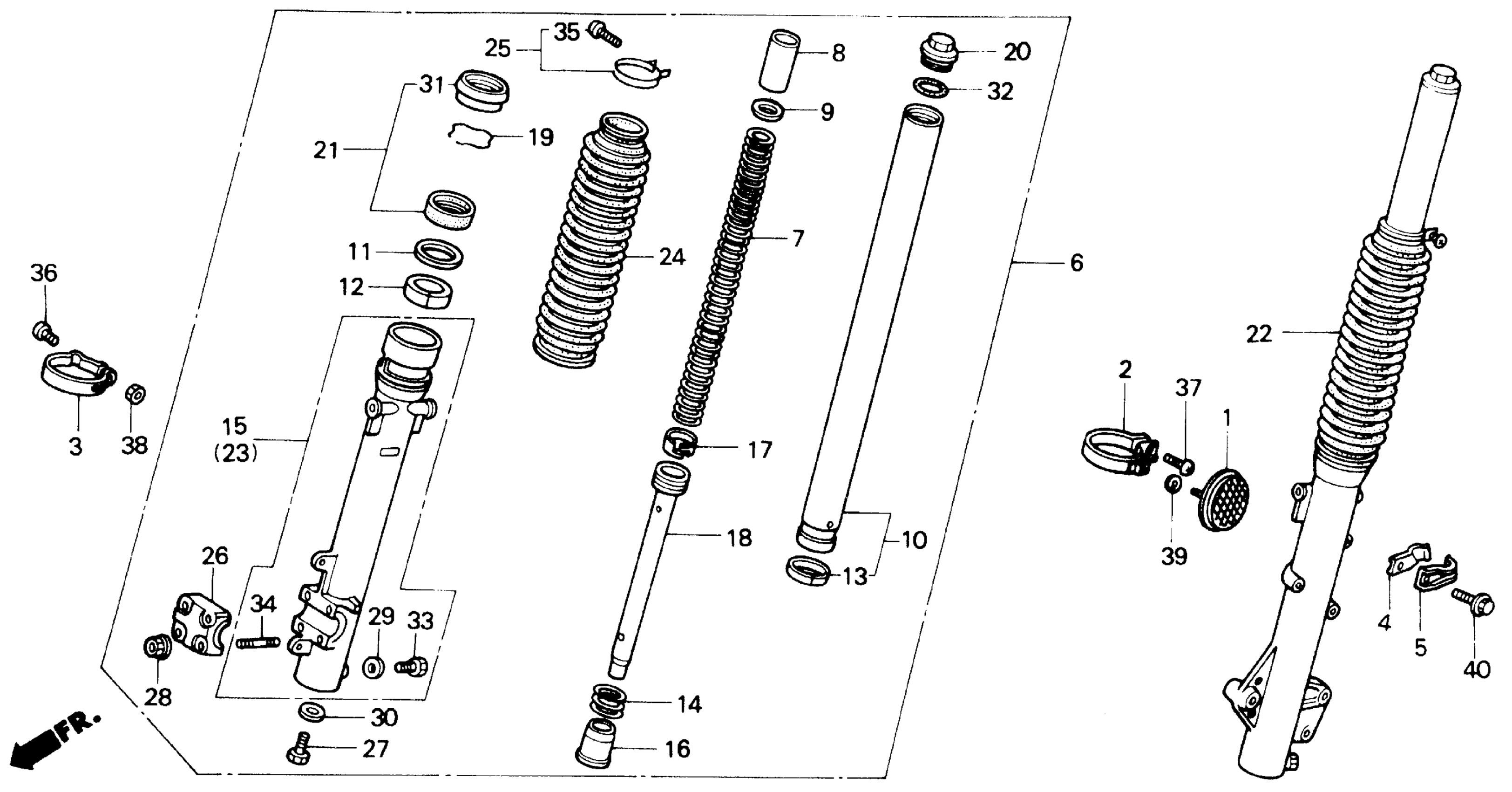

Honda NX650A (89) MOTORCYCLE, JPN, VIN# JH2RD020-KK100001 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX (NOT AVAILABLE) This part replaces 33742-MN9-670.

33741-KJ2-670

Unavailable

2

BAND, REFLEX REFLECTOR

33743-MN9-670

Unavailable

3

CLAMP, SPEEDOMETER CABLE

44832-MAN-620

Unavailable

3

CLAMP, SPEEDOMETER CABLE This part replaces 44832-MN9-000.

44832-MAN-620

Unavailable

4

CLAMP A, BRAKE HOSE

45464-MM9-000

Unavailable

5

CLAMP B, BRAKE HOSE

45465-MM9-000

Unavailable

6

FORK ASSY., R. FR. *NH146M/B72L* (SHOWA) (ACCURATE SILVER/NEBULA BLUE)

51400-MN9-671ZA

Unavailable

7

SPRING, FR. FORK (SHOWA)

51401-MN9-702

Unavailable

8

COLLAR, SPRING

51402-MG2-701

Unavailable

9

SEAT, SPRING

51403-KF0-003

$4.47

10

PIPE, FR. FORK (SHOWA)

51410-MN9-701

Unavailable

11

RING, BACK-UP

51412-KF0-003

Unavailable

12

BUSH, GUIDE (SHOWA)

51414-KCR-003

$12.58

12

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$12.58

13

BUSH, SLIDER

51415-MG2-701

$14.34

14

SPRING, FR. REBOUND

51416-KF0-003

$6.62

15

CASE, R. (LOWER) *NH146M* (SHOWA) (ACCURATE SILVER METALLIC)

51420-MN9-671ZA

Unavailable

16

PIECE, OIL LOCK (SHOWA)

51432-MN9-701

Unavailable

17

RING, PISTON

51437-KF0-003

Unavailable

18

PIPE, SEAT (SHOWA)

51440-MN9-701

Unavailable

19

RING, OIL SEAL STOPPER

51447-KA4-711

$4.20

20

BOLT, FR. FORK

51455-MM9-003

Unavailable

21

SEAL SET, FR. FORK

51490-KAE-003

$32.24

21

SEAL SET, FR. FORK This part replaces 51490-KF0-305.

51490-KAE-003

$32.24

22

FORK ASSY., L. FR. *NH146M/B72L* (SHOWA) (ACCURATE SILVER/NEBULA BLUE)

51500-MN9-671ZA

Unavailable

23

CASE, L. (LOWER) *NH146M* (SHOWA) (ACCURATE SILVER METALLIC)

51520-MN9-671ZA

Unavailable

24

BOOT, FR. FORK *B72L* (NEBULA BLUE) (NOT AVAILABLE)

51611-MM9-013ZC

Unavailable

25

BAND, FR. FORK BOOT

51612-KF0-003

$9.79

26

HOLDER, AXLE *NH146M* (ACCURATE SILVER METALLIC)

51634-MK5-003ZC

Unavailable

27

BOLT, SOCKET (8X27)

90116-383-721

$4.77

28

NUT, U (6MM)

90301-473-003

$3.79

29

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.25

30

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

31

DUST SEAL, FR. FORK

91254-KF0-003

$19.14

32

O-RING (33.2X2.4)

91356-KF0-003

$3.51

33

BOLT, HEX. (6X8)

92101-06008-0A

$1.25

34

BOLT, STUD (6X25)

92900-06025-0E

$0.94

35

SCREW, PAN (3X20)

93500-03020-0A

$0.75

36

SCREW, PAN (5X20)

93500-05020-0A

$0.75

37

SCREW, PAN (5X20)

93500-05020-0G

$0.75

38

NUT, HEX. (5MM)

94001-05000-0S

$2.42

39

WASHER, SPRING (6MM)

94111-06800

$1.03

40

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable
