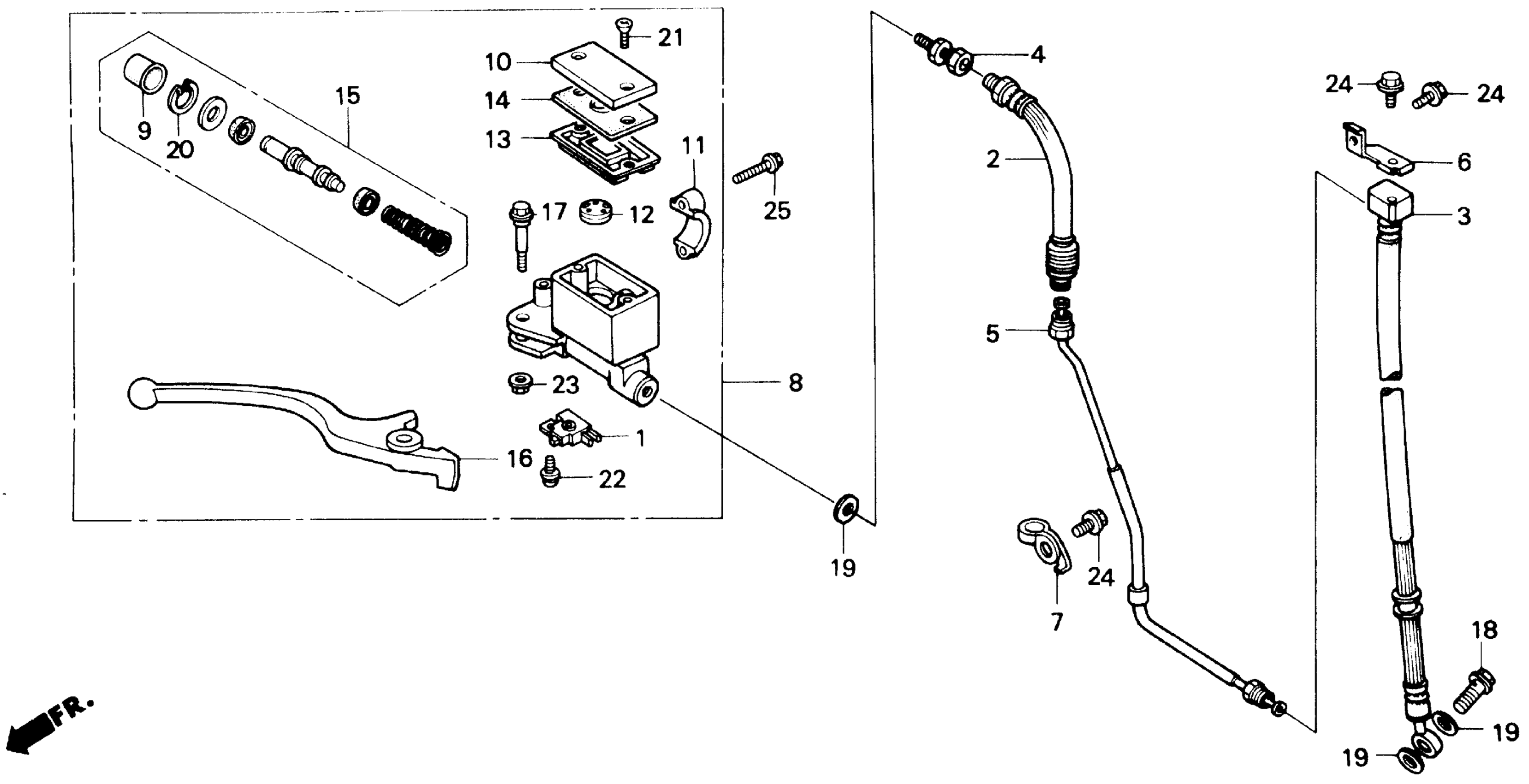

Honda NX650A (89) MOTORCYCLE, JPN, VIN# JH2RD020-KK100001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE, BRAKE (UPPER)

45125-MN9-013

Unavailable

3

HOSE, BRAKE (LOWER) (NOT AVAILABLE)

45126-MN9-000

Unavailable

4

JOINT, BRAKE HOSE (NOT AVAILABLE)

45127-MG3-013

Unavailable

5

PIPE, FR. BRAKE (NOT AVAILABLE)

45135-MN9-000

Unavailable

6

STAY,BRAKE HOSE This part replaces 45462-MN9-000.

45462-MAN-620

Unavailable

7

CLAMP, FR. BRAKE HOSE

45463-MM9-000

Unavailable

8

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-MN9-405)

45500-MN9-671

Unavailable

9

BOOT

45504-410-003

$12.16

10

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

11

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

12

SEPARATOR

45518-MG3-016

$12.02

13

DIAPHRAGM

45520-MG7-006

$10.61

14

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

15

MASTER CYLINDER SET

45530-MN9-305

$50.74

16

LEVER, R. HANDLE

53175-MN9-670

Unavailable

17

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

18

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

18

BOLT, OIL (10X22)

90145-KM3-751

$11.02

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

CIRCLIP

90651-MA5-671

$2.66

21

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

22

SCREW-WASHER (4X12)

93893-04012-08

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

25

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
