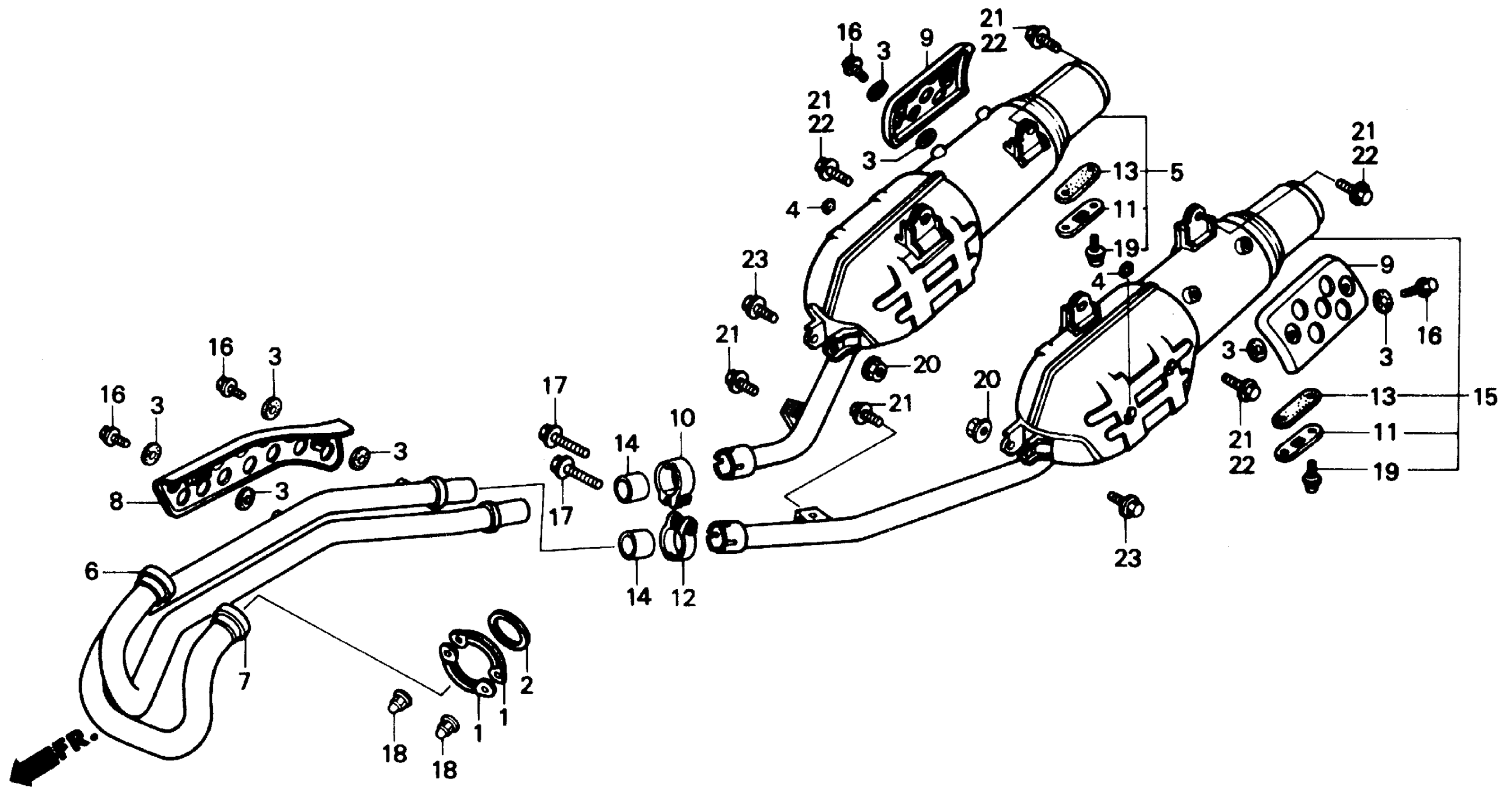

Honda NX650A (89) MOTORCYCLE, JPN, VIN# JH2RD020-KK100001 EXHAUST MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MN1-670

$21.68

2

GASKET, EX. PIPE

18291-MN5-650

$3.77

2

GASKET, EX. PIPE This part replaces 18291-MN9-000.

18291-MN5-650

$3.77

3

GASKET, PROTECTOR

18292-MM9-740

$3.03

4

RUBBER, PROTECTOR GASKET This part replaces 18293-GE8-000.

18293-147-000

$4.04

4

RUBBER, PROTECTOR GASKET

18293-147-000

$4.04

5

MUFFLER, R. EX.

18310-MN9-672

Unavailable

6

PIPE A, EX. This part replaces 18320-MN9-670.

18320-MY2-620

Unavailable

6

PIPE A, EX.

18320-MY2-620

Unavailable

7

PIPE B, EX. This part replaces 18321-MN9-670.

18321-MY2-620

Unavailable

7

PIPE B, EX.

18321-MY2-620

Unavailable

8

PROTECTOR, EX. PIPE *NH106* (HEATPROOF BLACK)

18325-MN9-870ZA

Unavailable

9

PROTECTOR, MUFFLER

18355-MN9-000

Unavailable

10

BAND, EX. PIPE

18373-KAB-000

$20.35

10

BAND, EX. PIPE This part replaces 18373-MN1-670.

18373-KAB-000

$20.35

11

LID, MUFFLER

18373-429-010

$9.15

12

BAND, L. EX. PIPE

18374-MN1-670

$14.42

13

GASKET, MUFFLER LID

18374-MN1-880

$4.21

13

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

14

GASKET, MUFFLER

18391-KJ3-700

$27.56

15

MUFFLER, L. EX.

18410-MN9-672

Unavailable

16

BOLT, FLANGE (6X10)

90104-MN9-000

Unavailable

17

BOLT, FLANGE (8X32)

90216-MM9-000

$4.66

18

NUT, CAP (8MM)

90304-ME1-670

$5.94

19

BOLT-WASHER (6X12)

93401-06012-07

$1.62

19

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

19

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

20

NUT, FLANGE (8MM)

94050-08000

$1.49

21

BOLT, FLANGE (8X16)

96300-08016-07

$1.49

22

BOLT, FLANGE (8X30)

96300-08030-07

Unavailable

23

BOLT, FLANGE (8X50)

96300-08050-07

$2.39
