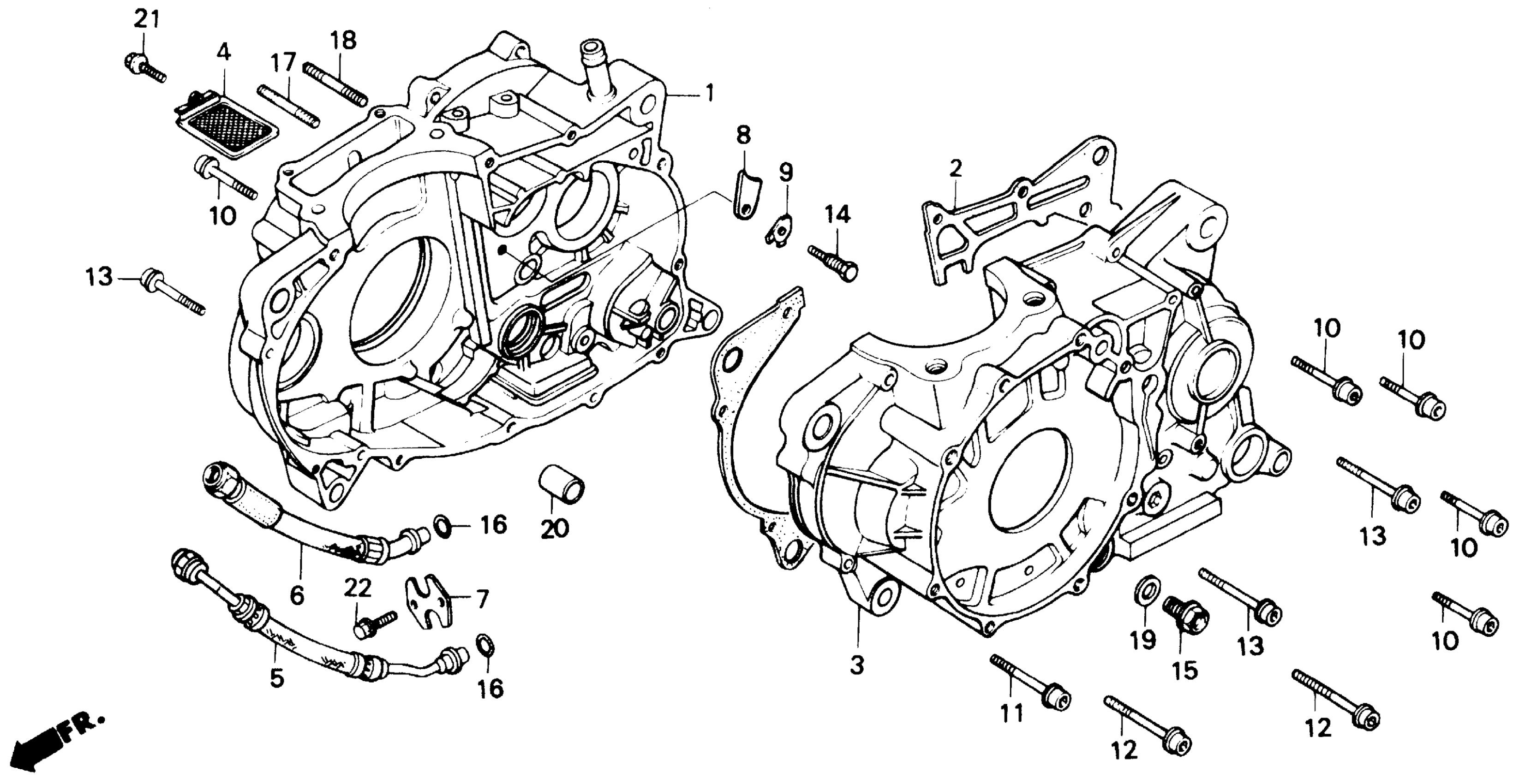

Honda NX650A (89) MOTORCYCLE, JPN, VIN# JH2RD020-KK100001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-MN9-870

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-MK2-000.

11191-MN1-702

$21.60

2

GASKET, CRANKCASE This part replaces 11191-MK2-306.

11191-MN1-702

$21.60

2

GASKET, CRANKCASE This part replaces 11191-MN1-700.

11191-MN1-702

$21.60

2

GASKET, CRANKCASE This part replaces 11191-MN9-920.

11191-MN1-702

$21.60

3

CRANKCASE, L.

11200-MN9-000

Unavailable

4

SCREEN, OIL FILTER (KOYO)

15421-MN1-671

$9.90

5

HOSE A, OIL This part replaces 15610-MN9-003.

15610-MY2-622

Unavailable

5

HOSE A, OIL This part replaces 15610-MY2-621.

15610-MY2-622

Unavailable

6

HOSE B, OIL This part replaces 15620-MN9-000.

15620-MN1-670

$108.25

7

PLATE

15630-MG3-000

Unavailable

8

PLATE

23521-MG3-000

Unavailable

9

WASHER, LOCK (8MM)

23523-MG2-790

$2.80

10

BOLT, SOCKET (6X32)

90006-KN8-730

Unavailable

11

BOLT, SOCKET (6X40)

90007-KN8-730

$4.28

12

BOLT, SOCKET (6X45)

90008-KN8-730

Unavailable

13

BOLT, SOCKET (6X50)

90009-KN8-730

Unavailable

14

BOLT, SPECIAL (8MM)

90088-MG3-000

$5.74

15

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$2.00

15

BOLT, DRAIN PLUG

90131-896-650

$2.00

16

GASKET, RUBBER (10.5MM)

91302-MG2-792

$3.77

17

BOLT, STUD (6X22)

92900-06022-0E

$1.32

18

BOLT, STUD (6X50)

92700-06050-0E

$1.41

19

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

20

PIN, DOWEL (14X20)

94301-14200

$2.25

21

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

22

BOLT, FLANGE (6X16)

96001-06016-07

$0.96
