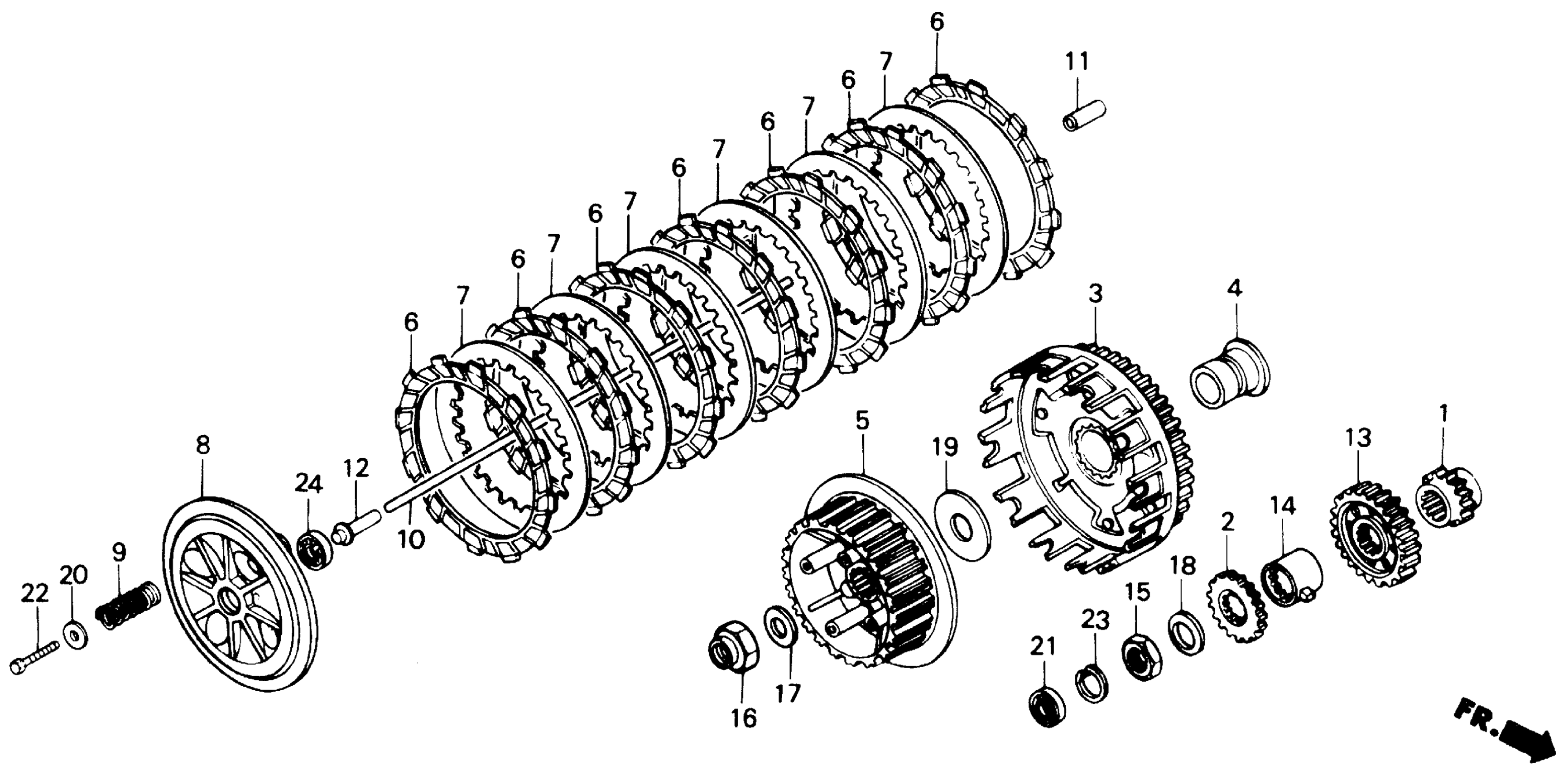

Honda NX650A (89) MOTORCYCLE, JPN, VIN# JH2RD020-KK100001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, TIMING (19T)

14312-MN1-670

$47.83

2

GEAR, PUMP DRIVE (28T)

15130-MN1-670

$50.93

3

CLUTCH OUTER

22100-MN9-000

$478.75

4

GUIDE, CLUTCH (OUTER)

22116-MN1-670

$21.56

5

CENTER, CLUTCH (28T)

22120-KN8-000

$136.18

6

DISK, CLUTCH FRICTION

22201-MK2-000

$25.24

7

PLATE, CLUTCH

22321-MG3-000

$19.41

8

PLATE, CLUTCH PRESSURE

22350-MG3-000

$95.03

9

SPRING, CLUTCH

22401-MK2-003

$3.81

10

ROD, CLUTCH LIFTER

22850-MG3-000

$40.11

11

PIECE, CLUTCH LIFTER ROD

22852-MK5-000

$7.41

12

LIFTER, CLUTCH

22853-KN8-000

$16.84

13

GEAR, PRIMARY DRIVE (34T)

23121-MN9-000

$122.25

14

BOSS, PULSER

30220-MK5-000

$30.16

15

NUT (18MM)

90235-MN1-670

$8.66

16

NUT, LOCK (18MM)

90236-HA0-000

$10.45

17

WASHER (18MM)

90432-KE5-000

$4.85

18

WASHER, LOCK

90432-428-000

$7.57

19

WASHER, THRUST (22MM)

90452-471-000

$4.76

20

WASHER (6X19) (NOT AVAILABLE)

90481-259-000

Unavailable

21

OIL SEAL (14X22X5) (ARAI)

91201-HM3-A61

$2.99

21

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-003.

91201-HM3-A61

$2.99

21

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-004.

91201-HM3-A61

$2.99

21

OIL SEAL (14X22X5) (ARAI) This part replaces 91201-KF0-005.

91201-HM3-A61

$2.99

22

BOLT, HEX. (6X25)

92201-06025-0A

Unavailable

23

CIRCLIP, INNER (24MM)

94520-24000

$1.49

24

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
