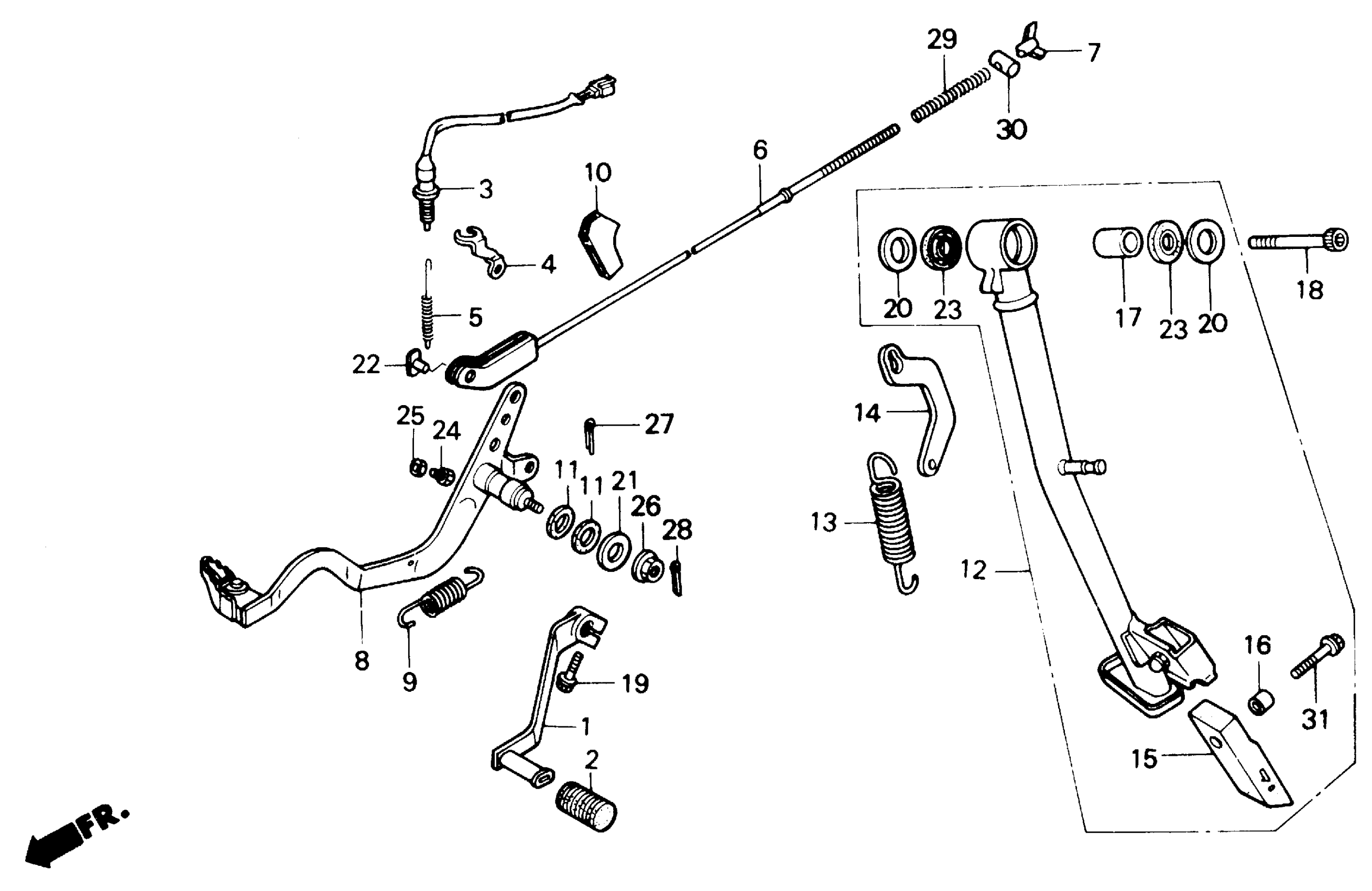

Honda NX650A (89) MOTORCYCLE, JPN, VIN# JH2RD020-KK100001 BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24705-MAN-600

Unavailable

1

PEDAL, GEARSHIFT This part replaces 24710-MN9-670.

24705-MAN-600

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

SWITCH ASSY., RR. STOP This part replaces 35350-MN9-000.

35350-MY2-620

Unavailable

3

SWITCH ASSY., RR. STOP

35350-MY2-620

Unavailable

4

STAY, RR. STOP SWITCH

35356-MN9-000

$10.71

5

SPRING, STOP SWITCH

35357-MN9-010

Unavailable

6

ROD, RR. BRAKE

43451-MN9-671

Unavailable

7

NUT, BRAKE ADJUST

43459-434-000

$15.27

8

PEDAL, BRAKE

46500-MN9-670

Unavailable

9

SPRING, BRAKE PEDAL

46514-MN9-000

Unavailable

10

COVER, MIDDLE ARM

46523-MN9-670

Unavailable

11

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

12

BAR ASSY., SIDE STAND

50540-MN9-000

Unavailable

13

SPRING, SIDE STAND

50541-KW3-000

Unavailable

14

PLATE, SIDE STAND SPRING

50546-KW3-000

Unavailable

15

RUBBER, STAND

50548-KW3-003

Unavailable

16

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

17

COLLAR, SIDE STAND

50550-KW3-000

Unavailable

18

BOLT, SOCKET (10X45)

90101-KW3-000

Unavailable

19

BOLT, FLANGE (6X20)

90102-MN1-670

$2.92

20

WASHER, THRUST

90501-KW3-000

Unavailable

21

WASHER, HANDLE HOLDER

90535-KB9-000

$6.14

22

PIN C, JOINT This part replaces 90712-GS9-670.

95015-53000

$3.06

22

PIN C, JOINT

95015-53000

$3.06

23

DUST SEAL, PIVOT

91262-KW3-003

Unavailable

24

BOLT, RECESSED (6X20)

92301-06020-0A

$1.49

25

NUT, HEX. (6MM)

94002-06000-0S

$1.49

26

NUT, FLANGE (8MM)

94050-08000

$1.49

27

PIN, SPLIT (2.0X12)

94201-20120

$1.49

28

PIN, LOCK (8MM)

94251-08000

$1.49

29

SPRING A, BRAKE ROD

95014-73100

$1.49

30

JOINT B, BRAKE ARM

95015-32001

$1.49

31

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
