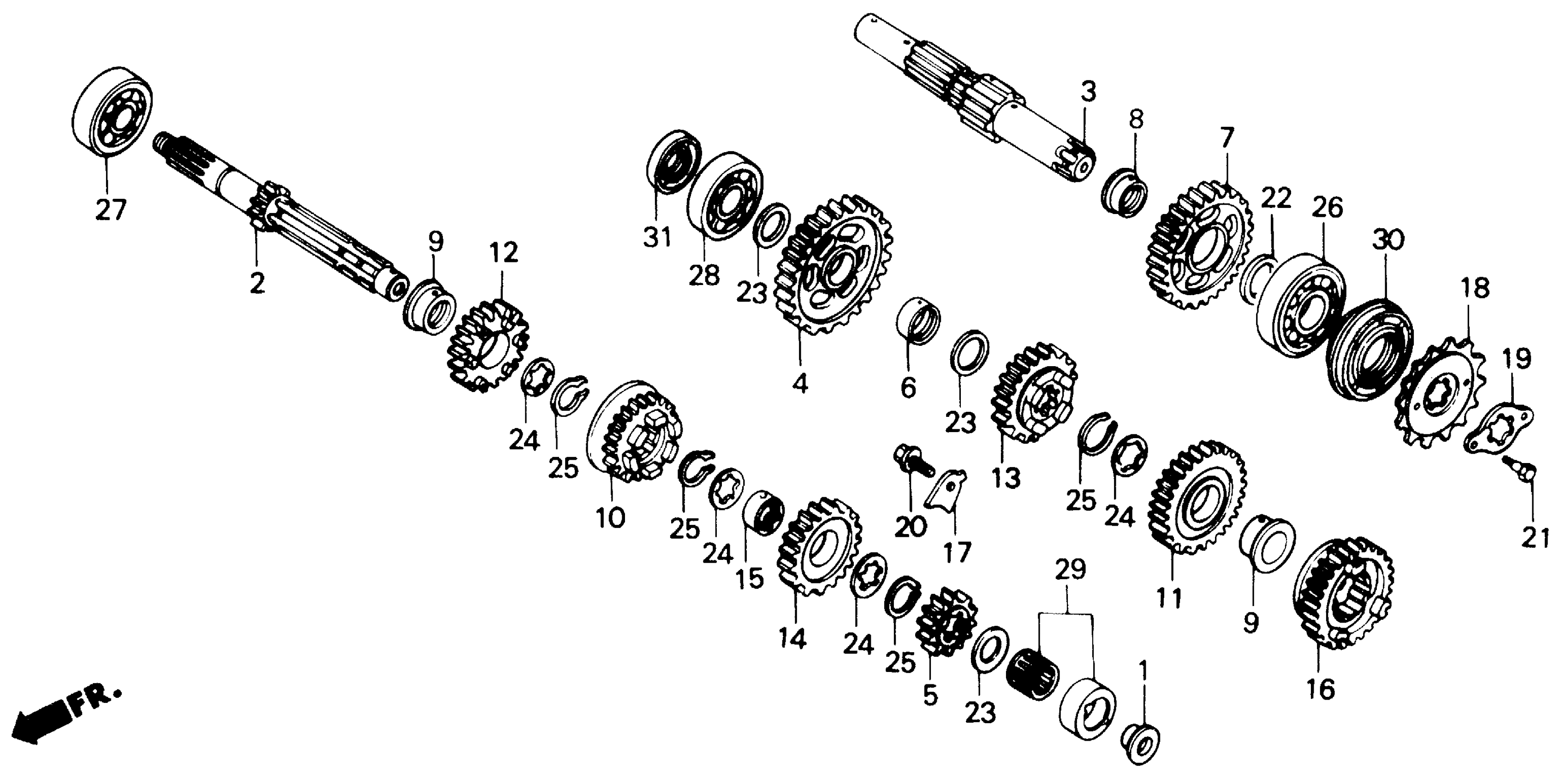

Honda NX650A (88) MOTORCYCLE, JPN, VIN# JH2RD020-JK000005 TO JH2RD020-JK001565 TRANSMISSION Diagram

#

Description
Price

1

GUIDE, LIFTER ROD

15171-KN8-000

$14.89

2

MAINSHAFT (12T)

23211-MAN-690

$163.64

2

MAINSHAFT (12T) This part replaces 23211-MN9-000.

23211-MAN-690

$163.64

3

COUNTERSHAFT This part replaces 23220-MN9-000.

23220-MN9-010

Unavailable

3

COUNTERSHAFT

23220-MN9-010

Unavailable

4

GEAR, COUNTERSHAFT LOW (32T)

23411-MN9-000

$165.10

5

GEAR, MAINSHAFT SECOND (16T) This part replaces 23421-MN9-000.

23421-MN9-010

$68.54

5

GEAR, MAINSHAFT SECOND (16T)

23421-MN9-010

$68.54

6

BUSH (20MM)

23422-MG2-000

$23.00

7

GEAR, COUNTERSHAFT SECOND (28T)

23431-MN9-000

$147.77

8

BUSH (25MM)

23432-MK2-000

$27.93

9

BUSH (25MM)

23432-MN1-670

$27.93

10

GEAR, MAINSHAFT THIRD (20T)

23441-MN9-000

$169.61

11

GEAR, COUNTERSHAFT THIRD (25T)

23451-MN9-000

$137.66

12

GEAR, MAINSHAFT FOURTH (23T)

23461-MN9-000

$137.67

13

GEAR, COUNTERSHAFT FOURTH (23T)

23471-MN9-000

$180.02

14

GEAR, MAINSHAFT FIFTH (25T)

23481-MN9-000

$137.66

15

BUSH, SPLINE (28MM)

23485-369-000

$29.59

16

GEAR, COUNTERSHAFT FIFTH (21T)

23491-MN9-000

$154.59

17

PLATE, BEARING SETTING

23531-MG2-790

$4.46

18

SPROCKET, DRIVE (15T)

23801-MN9-000

Unavailable

19

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

20

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

21

BOLT, FLANGE (6X12)

90118-958-003

$3.24

22

WASHER, THRUST (25MM)

90412-ZE5-000

$4.71

23

PLATE, THRUST (20MM)

90451-MG3-000

$4.13

24

WASHER, THRUST (25MM)

90451-413-000

$3.26

25

CIRCLIP (25MM)

90601-107-000

$3.74

26

BEARING, RADIAL BALL (6305)

91002-MG2-790

Unavailable

26

BEARING, RADIAL BALL (6305) (TOYO)

91002-MG2-791

$41.07

27

BEARING, RADIAL BALL (5205A)

91002-422-008

$68.41

28

BEARING, RADIAL BALL (6204U) This part replaces 91003-MK2-680.

96140-62040-10

$21.84

28

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

29

BEARING, NEEDLE (20MM)

91022-MG2-791

$46.80

30

OIL SEAL (25X45X7) (ARAI)

91204-MG3-003

$9.80

31

OIL SEAL (20X35X5.5) (ARAI)

91204-216-003

$6.31
