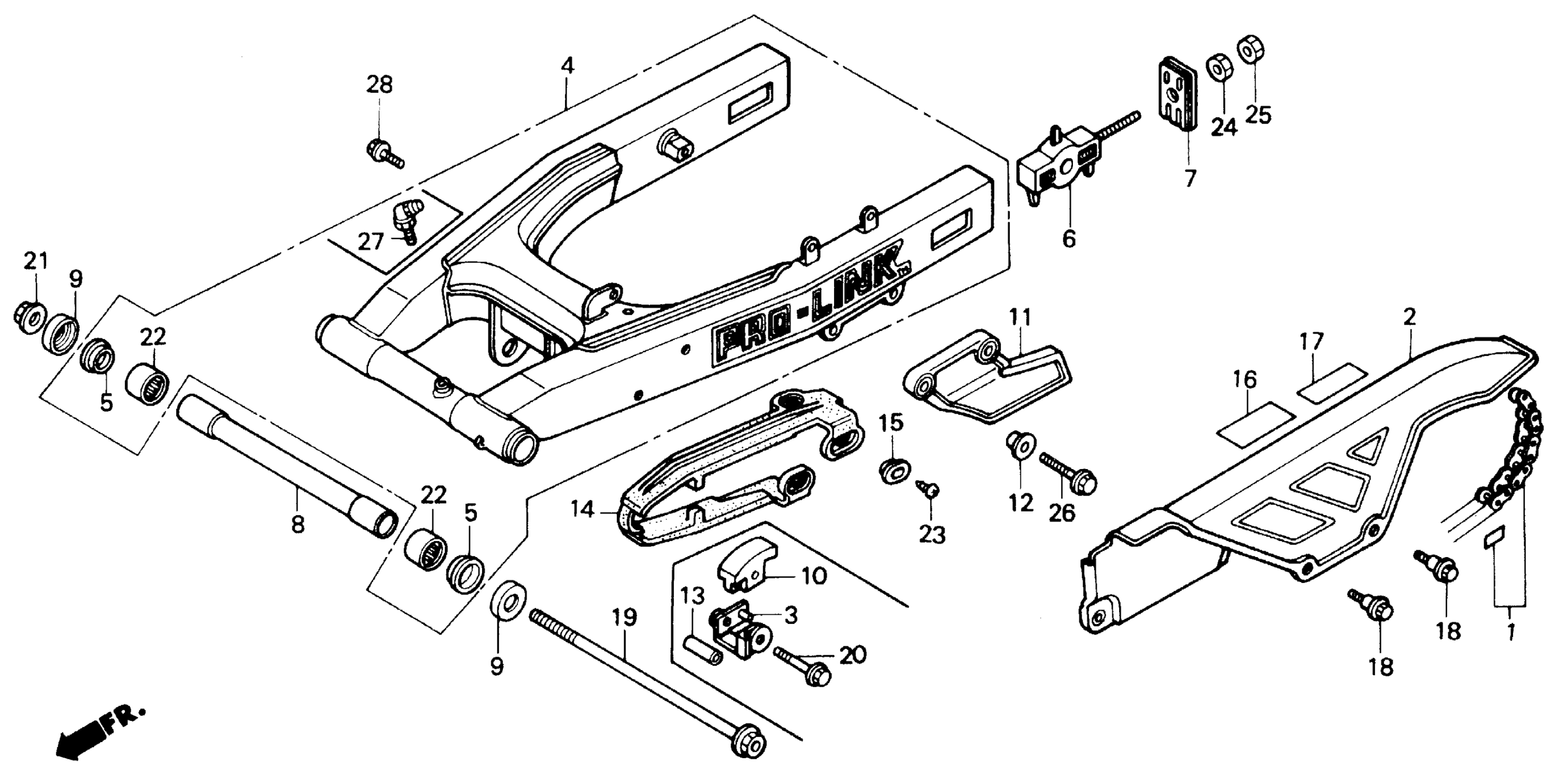

Honda NX650A (88) MOTORCYCLE, JPN, VIN# JH2RD020-JK000005 TO JH2RD020-JK001565 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (DID520VS-108L) (DAIDO)

405A3-MN9-003

Unavailable

1

CHAIN SET, DRIVE (RK520SMO-108L) (TAKASAGO) This part replaces 405A3-MN9-005.

40550-MN9-405

Unavailable

1

CHAIN SET, DRIVE (RK520SMO-108L) (TAKASAGO)

40550-MN9-405

Unavailable

2

CASE, DRIVE CHAIN

40510-KS5-000

Unavailable

3

STAY, TENSIONER | Use up to Frame SN JK000650

50143-MA0-770

Unavailable

4

FORK ASSY*NH146M* This part replaces 52100-MN9-670ZA.

52100-MN9-660ZA

Unavailable

5

BUSH, PIVOT THRUST

52109-430-300

$16.01

6

COLLAR, CHAIN TENSIONER This part replaces 52120-KV0-000.

52120-KV0-700

Unavailable

6

COLLAR, CHAIN TENSIONER

52120-KV0-700

Unavailable

7

PLATE, CHAIN TENSIONER

52121-MJ0-000

$22.28

8

COLLAR, SWINGARM CENTER This part replaces 52141-MN9-000.

52141-MY2-000

Unavailable

8

COLLAR, SWINGARM CENTER

52141-MY2-000

Unavailable

9

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

9

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

10

SLIDER, CHAIN (NOT AVAILABLE) | Use up to Frame SN JK000650

52155-MG2-891

Unavailable

11

GUARD, CHAIN

52156-KB7-000

Unavailable

12

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

13

COLLAR, CHAIN ROLLER | Use up to Frame SN JK000650

52159-169-000

Unavailable

14

SLIDER, CHAIN This part replaces 52170-MN9-000.

52170-MW2-780

Unavailable

15

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

16

MARK, TIRE CAUTION

87505-MN9-670

Unavailable

17

MARK, DRIVE CHAIN CAUTION

87509-MK5-601

Unavailable

18

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

19

BOLT, RR. SWINGARM PIVOT

90121-MN9-000

Unavailable

20

BOLT, FLANGE (6X45) | Use up to Frame SN JK000650 This part replaces 90176-MG3-000.

95801-06045-00

$2.06

20

BOLT, FLANGE (6X45) | Use up to Frame SN JK000650

95801-06045-00

$2.06

21

NUT, U (14MM)

90305-GE8-003

$3.86

22

BEARING, NEEDLE (20X26X20) (NTN)

91070-GC4-601

$24.72

23

SCREW, TAPPING (5X8)

93901-25010

$1.49

24

NUT, HEX. (8MM)

94002-08200-0S

$1.49

25

NUT, HEX. (8MM)

94001-08000-0S

$1.49

25

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.49

26

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

26

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

27

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56

28

BOLT, FLANGE (6X12)

96300-06012-07

$1.49

28

BOLT, FLANGE (6X12) This part replaces 96500-06012-07.

96300-06012-07

$1.49
