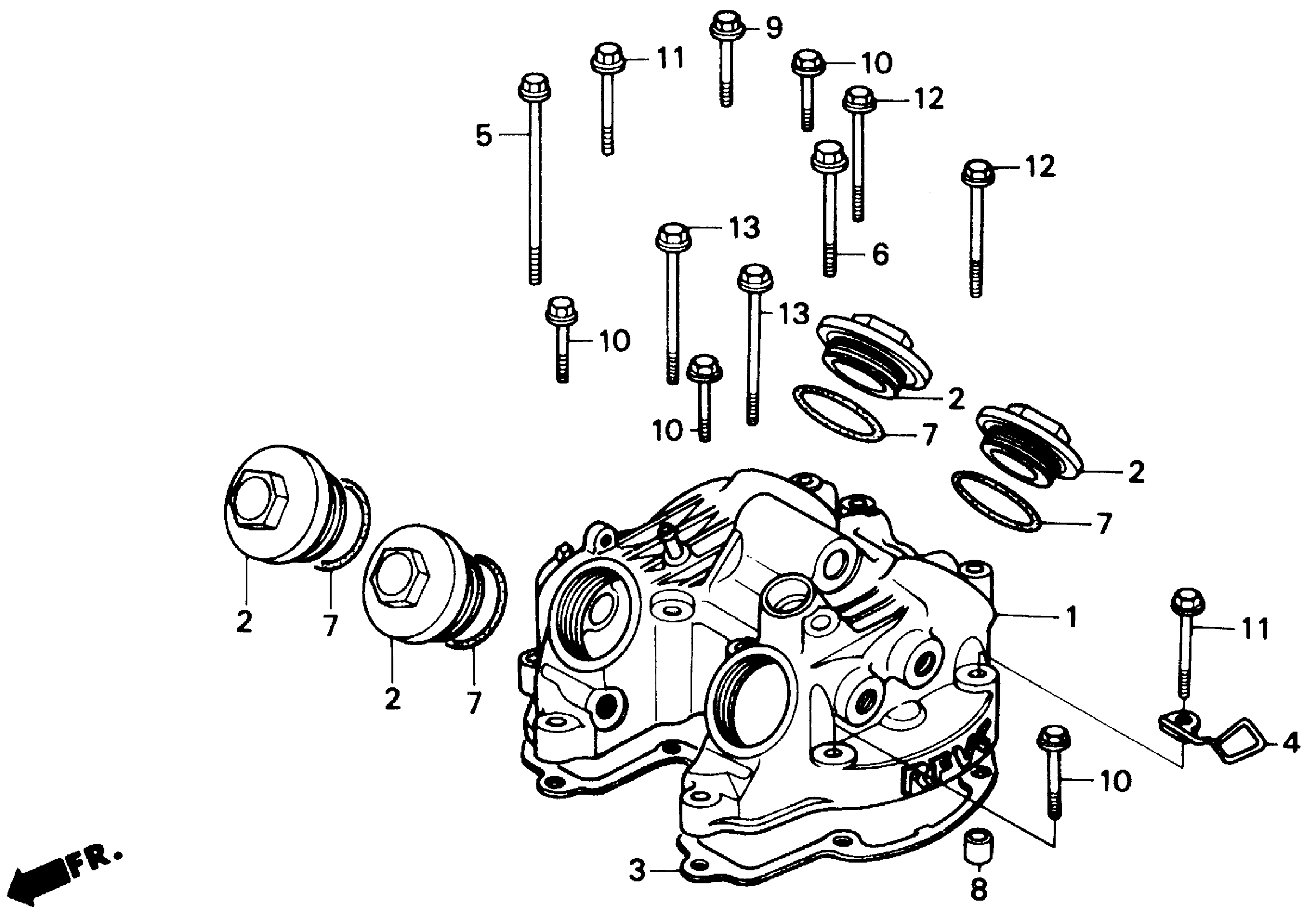

Honda NX650A (88) MOTORCYCLE, JPN, VIN# JH2RD020-JK000005 TO JH2RD020-JK001565 CYLINDER HEAD COVER Diagram

COVER, CYLINDER HEAD

12311-MN9-000

Unavailable

CAP, TAPPET ADJUSTING HOLE

12361-KF0-010

$21.68

GASKET, HEAD COVER

12391-MG2-790

$50.21

CLAMP, CLUTCH CABLE

22875-MN9-740

Unavailable

BOLT, FLANGE (6X115)

90025-MK4-600

$7.88

BOLT, FLANGE (8X70)

90044-MK4-600

$5.43

O-RING (39.5X2.6)

91352-MG2-792

$8.66

PIN, DOWEL (8X20)

94301-08200

$2.25

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
