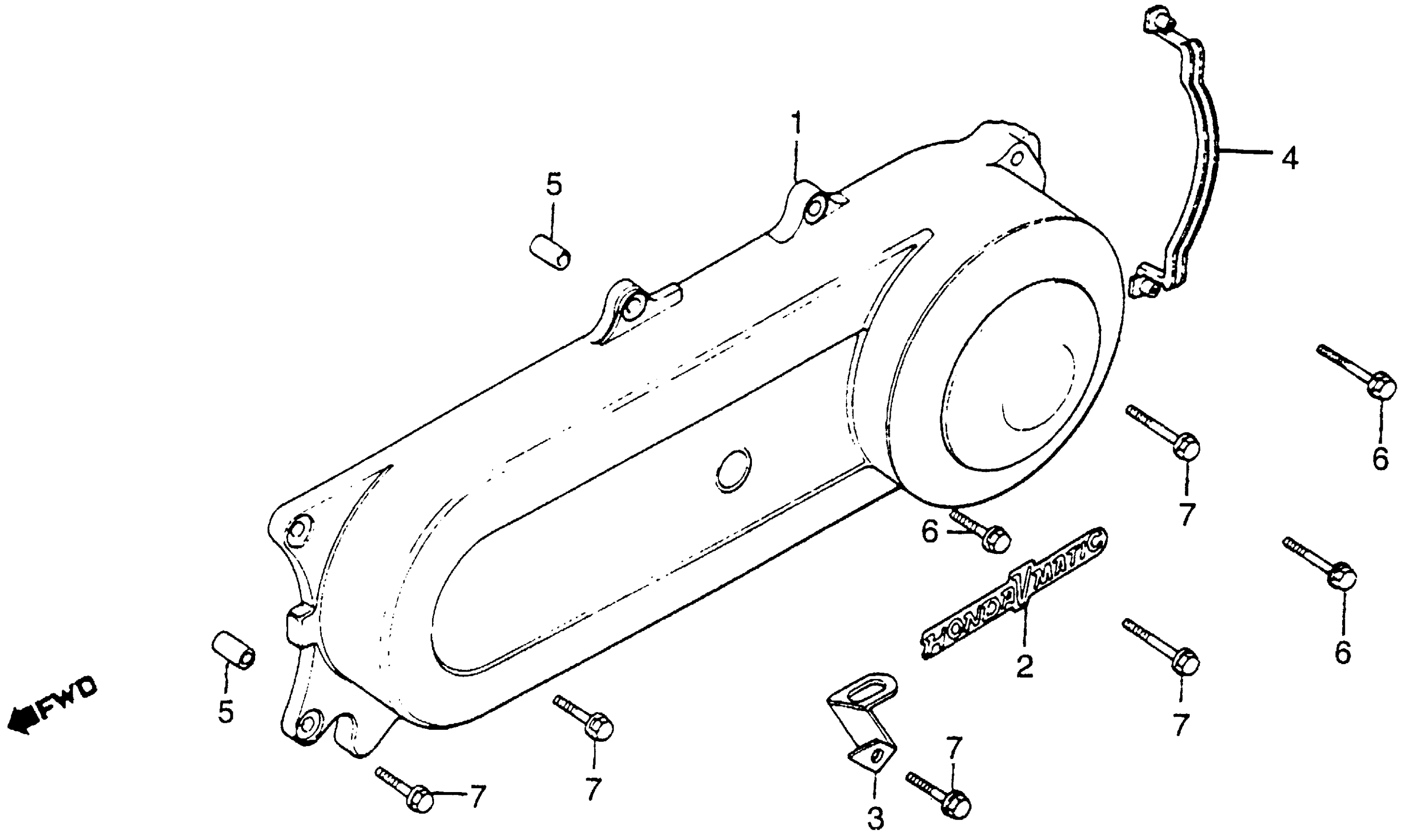

Honda NX50MA (82) EXPRESS SR, JPN, VIN# JH2AB040-CS100002 LEFT SIDE COVER Diagram

COVER, L. SIDE (NOT AVAILABLE)

11341-187-850

Unavailable

EMBLEM, L. SIDE COVER

11345-187-670

Unavailable

CLAMP, TUBE (NOT AVAILABLE)

11346-187-000

Unavailable

RUBBER, L. COVER SEAL (NOT AVAILABLE)

11352-187-000

Unavailable

PIN A, DOWEL (10X14)

94301-10140

$2.28

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X28) This part replaces 96018-06028-00.

96001-06028-00

$2.06
