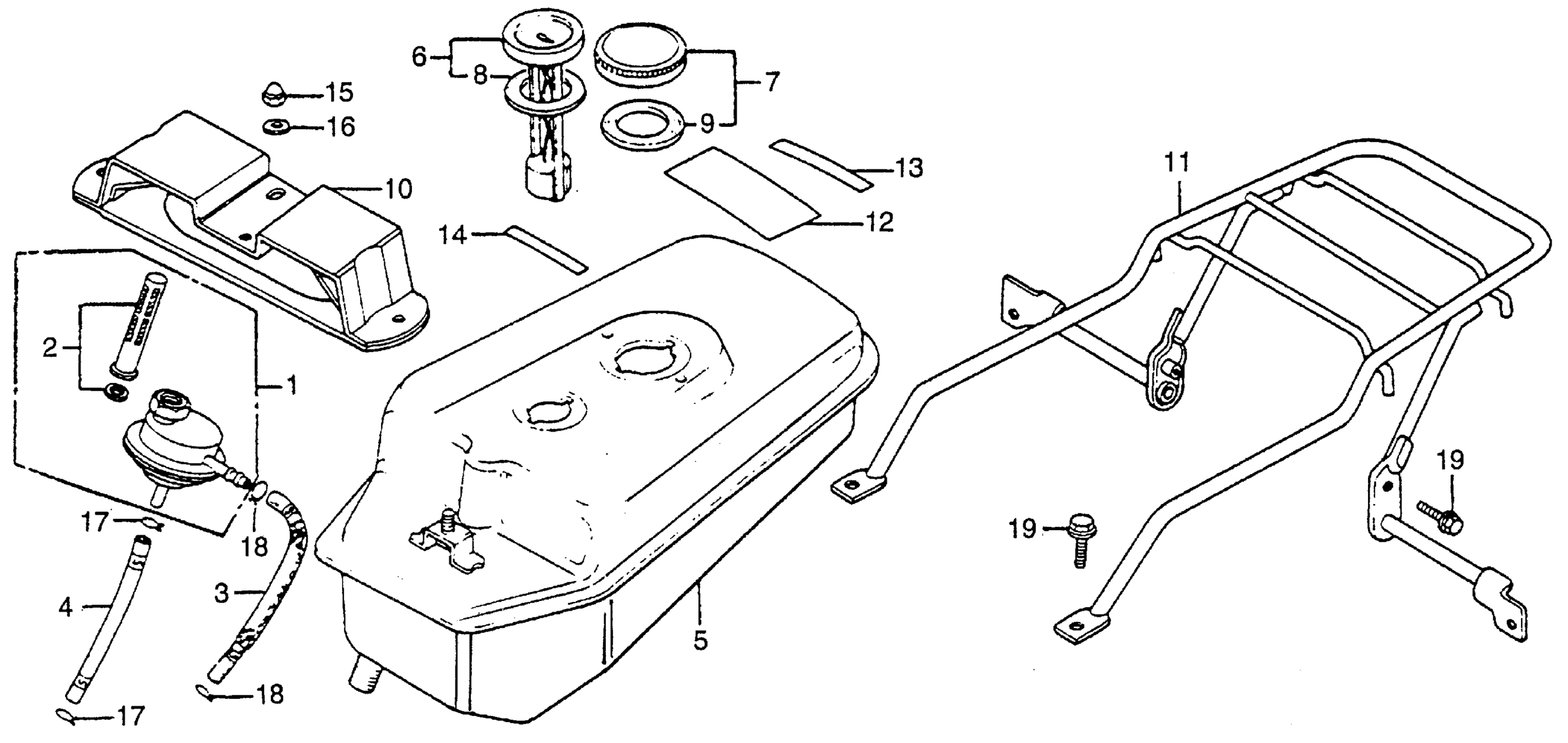

Honda NX50MA (82) EXPRESS SR, JPN, VIN# JH2AB040-CS100002 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-187-671

Unavailable

2

SCREEN SET, FUEL STRAINER This part replaces 16952-GA6-005.

16952-GF0-005

Unavailable

2

SCREEN SET, FUEL STRAINER

16952-GF0-005

Unavailable

2

SCREEN SET, FUEL STRAINER This part replaces 16952-187-671.

16952-GF0-005

Unavailable

3

TUBE A, FUEL (NOT AVAILABLE)

16953-187-030

Unavailable

4

TUBE B, FUEL (NOT AVAILABLE)

16954-187-000

Unavailable

5

TANK, FUEL This part replaces 17500-187-010ZN.

17500-187-505ZN

Unavailable

5

TANK, FUEL This part replaces 17500-187-010ZP.

17500-187-505ZP

Unavailable

5

TANK, FUEL This part replaces 17500-187-020ZN.

17500-187-505ZN

Unavailable

6

METER, FUEL (NOT AVAILABLE) This part replaces 17505-187-671.

17505-187-673

Unavailable

6

METER, FUEL (NOT AVAILABLE)

17505-187-673

Unavailable

7

CAP,FUEL FILLER This part replaces 17620-GA7-023.

17620-KEV-901

$19.41

7

CAP,FUEL FILLER This part replaces 17620-187-671.

17620-KEV-901

$19.41

7

CAP,FUEL FILLER This part replaces 17620-187-672.

17620-KEV-901

$19.41

7

CAP,FUEL FILLER This part replaces 17620-187-842.

17620-KEV-901

$19.41

8

GASKET C, FUEL METER

17624-187-000

Unavailable

8

GASKET C, FUEL METER

17624-187-020

Unavailable

9

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

9

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

10

BRIDGE, SEAT (NOT AVAILABLE)

77210-187-670

Unavailable

11

CARRIER, LUGGAGE (NOT AVAILABLE)

81200-187-670

Unavailable

12

LABEL, CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87505-187-670ZA

Unavailable

13

LABEL B, CAUTION *NH1* (BLACK) (NOT AVAILABLE)

87509-187-670ZA

Unavailable

14

LABEL, FUEL *NH1* (BLACK) (NOT AVAILABLE)

87512-147-670ZA

Unavailable

15

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

15

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

15

NUT, CAP (6MM)

94021-06020

$1.73

15

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

15

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

CLIP, TUBE (B7)

95002-02070

$1.80

18

CLIP, TUBE (B8)

95002-02080

$1.80

19

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

19

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
