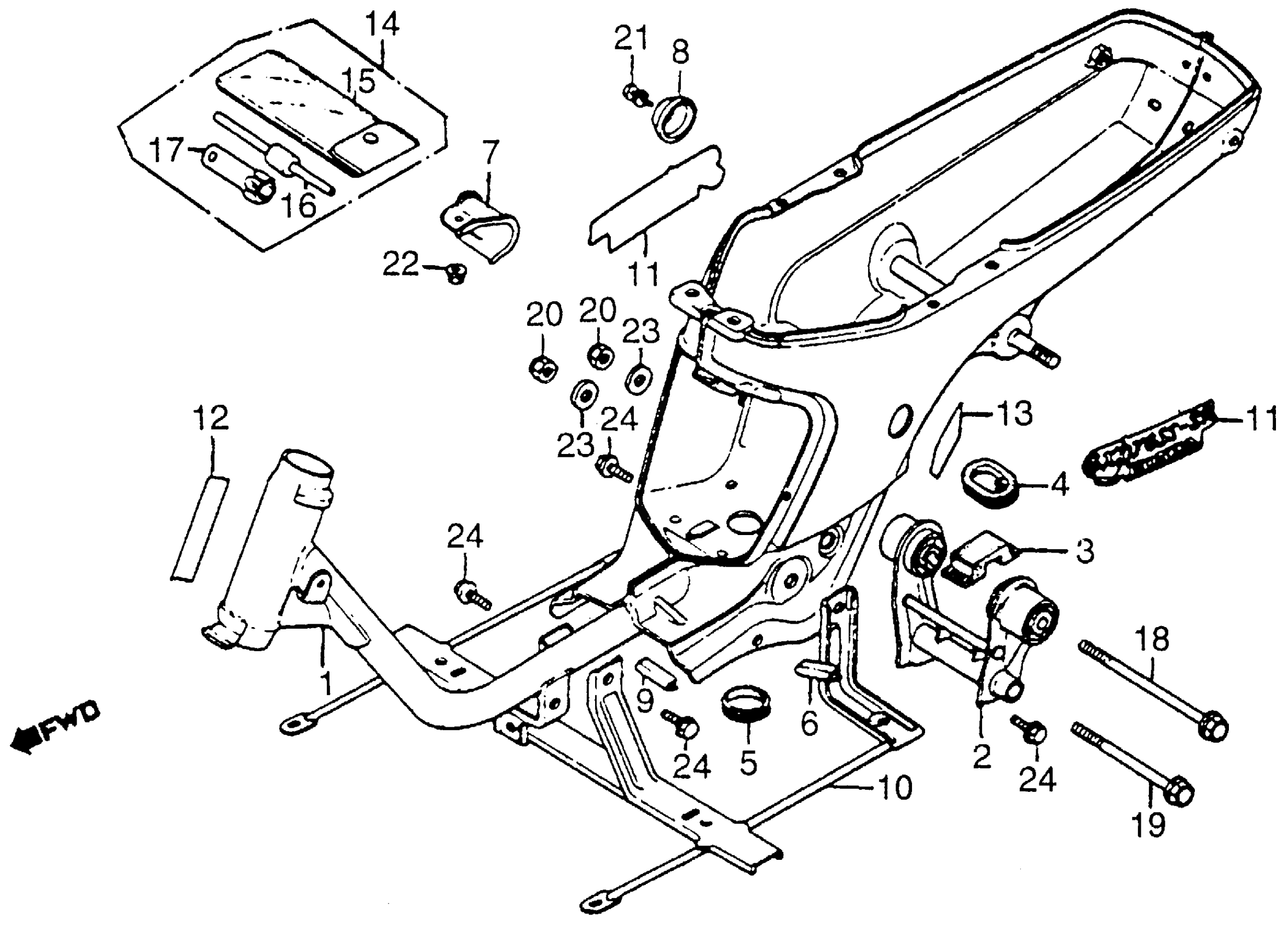

Honda NX50MA (82) EXPRESS SR, JPN, VIN# JH2AB040-CS100002 FRAME TOOLS Diagram

#

Description
Price

1

FRAME *PB31* (BLUE ANGEL) (NOT AVAILABLE)

50100-187-670ZA

Unavailable

1

FRAME *R110* (MONZA RED)

50100-187-670ZB

Unavailable

2

BRACKET ASSY., ENGINE HANGER (NOT AVAILABLE)

50350-187-000

Unavailable

3

RUBBER, ENGINE HANGER STOPPER (NOT AVAILABLE)

50352-187-000

Unavailable

4

GROMMET, TUBE (NOT AVAILABLE)

50356-187-000

Unavailable

5

GROMMET B, WIRE CORD (NOT AVAILABLE)

50357-187-000

Unavailable

6

TRIM, OPENING (NOT AVAILABLE)

50358-187-000

Unavailable

7

STAY, TOOL SETTING (NOT AVAILABLE)

50359-187-000

Unavailable

8

CAP, RR. CUSHION BAR *PB31* (BLUE ANGEL) (NOT AVAILABLE)

50360-187-000ZK

Unavailable

8

CAP, RR. CUSHION BAR *R110* (MONZA RED)

50360-187-000ZL

Unavailable

9

TRIM B, OPENING (NOT AVAILABLE)

50361-187-000

Unavailable

10

BAR, STEP CROSS (NOT AVAILABLE)

50615-187-010

Unavailable

12

PLATE, REGISTERED NUMBER (NOT AVAILABLE)

87501-187-000

Unavailable

13

LABEL, OIL CAUTION (NOT AVAILABLE)

87507-192-600

Unavailable

14

TOOL SET (NOT AVAILABLE)

89010-187-000

Unavailable

15

BAG, TOOL

89101-063-000

$2.51

16

BAR, HANDLE

89210-187-000

Unavailable

17

WRENCH, BOX (P21) (NOT AVAILABLE)

89216-357-000

Unavailable

18

BOLT A, ENGINE HANGER (NOT AVAILABLE)

90103-187-000

Unavailable

19

BOLT B, ENGINE HANGER (NOT AVAILABLE)

90104-187-000

Unavailable

20

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

21

SCREW-WASHER (6X10)

93891-06010-00

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

WASHER, PLAIN (10MM)

94101-10000

$1.49

24

BOLT, FLANGE (8X14) This part replaces 95700-08014-00.

95701-08014-00

$1.49

24

BOLT, FLANGE (8X14)

95701-08014-00

$1.49
