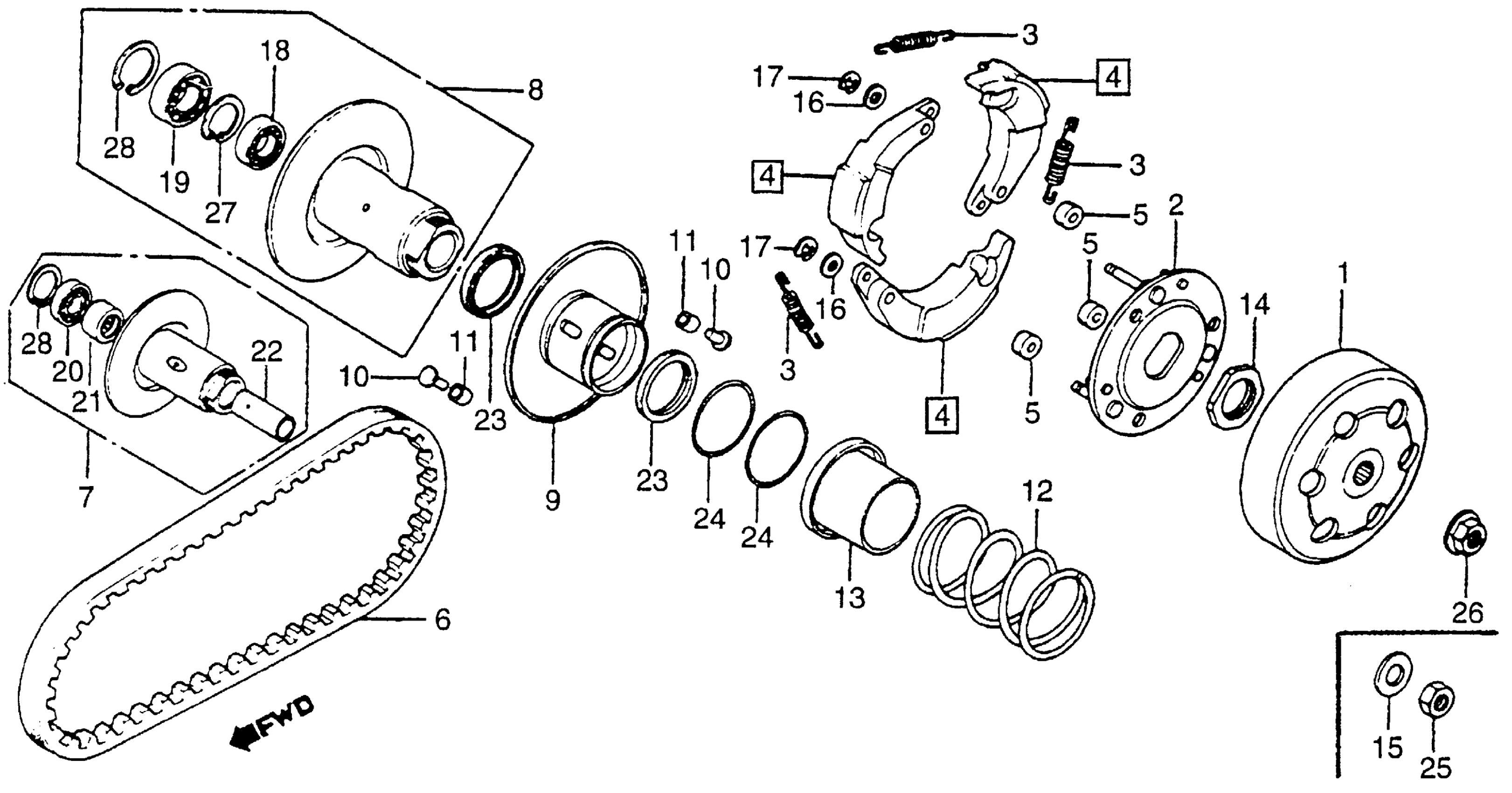

Honda NX50MA (82) EXPRESS SR, JPN, VIN# JH2AB040-CS100002 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-GA7-700

Unavailable

2

PLATE, DRIVE (NOT AVAILABLE)

22350-187-000

Unavailable

3

SPRING, CLUTCH (NOT AVAILABLE)

22401-187-010

Unavailable

4

WEIGHT SET, CLUTCH This part replaces 22535-187-305.

22535-187-315

Unavailable

4

WEIGHT SET, CLUTCH

22535-187-315

Unavailable

5

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

6

BELT A, DRIVE (BANDO) (NOT AVAILABLE) This part replaces 23100-187-003.

23100-187-004

Unavailable

6

BELT A, DRIVE (BANDO) (NOT AVAILABLE)

23100-187-004

Unavailable

7

FACE ASSY., DRIVEN This part replaces 23200-GA7-700.

23205-GA7-305

Unavailable

9

FACE, MOVABLE DRIVEN

23220-187-003

Unavailable

10

PIN, GUIDE ROLLER

23225-187-003

Unavailable

11

ROLLER, GUIDE

23226-187-003

Unavailable

12

SPRING, DRIVEN FACE (NOT AVAILABLE)

23233-GA7-700

Unavailable

13

COLLAR, SEAL

23237-GA7-700

Unavailable

14

NUT, SPECIAL (28MM) This part replaces 90202-GA7-700.

90202-187-000

$7.32

14

NUT, SPECIAL (28MM)

90202-187-000

$7.32

16

WASHER, THRUST (6MM)

90442-044-000

$2.21

17

CIRCLIP (6MM) This part replaces 90603-044-000.

90454-GB2-000

$1.79

18

BEARING, RADIAL BALL (6901U) (TOYO)

91001-GA7-701

$24.49

19

BEARING, RADIAL BALL (6902U) (TOYO)

91002-GA7-701

$24.58

19

BEARING, RADIAL BALL (6902U) (NTN) This part replaces 91002-GA7-702.

91002-GA7-701

$24.58

23

SEAL, DRIVEN FACE (ARAI)

91211-187-003

$6.98

24

O-RING, PINION CAP (36.7X1.9)

91351-642-000

$4.22

26

NUT, FLANGE (10MM)

94050-10000

$1.59

27

CIRCLIP (INNER) (24MM)

94520-24000

$1.49

28

CIRCLIP (INNER) (28MM)

94520-28000

$1.49
