- NX50MA (82) EXPRESS SR, JPN, VIN# JH2AB040-CS100002
DRIVE FACE + KICK STARTER

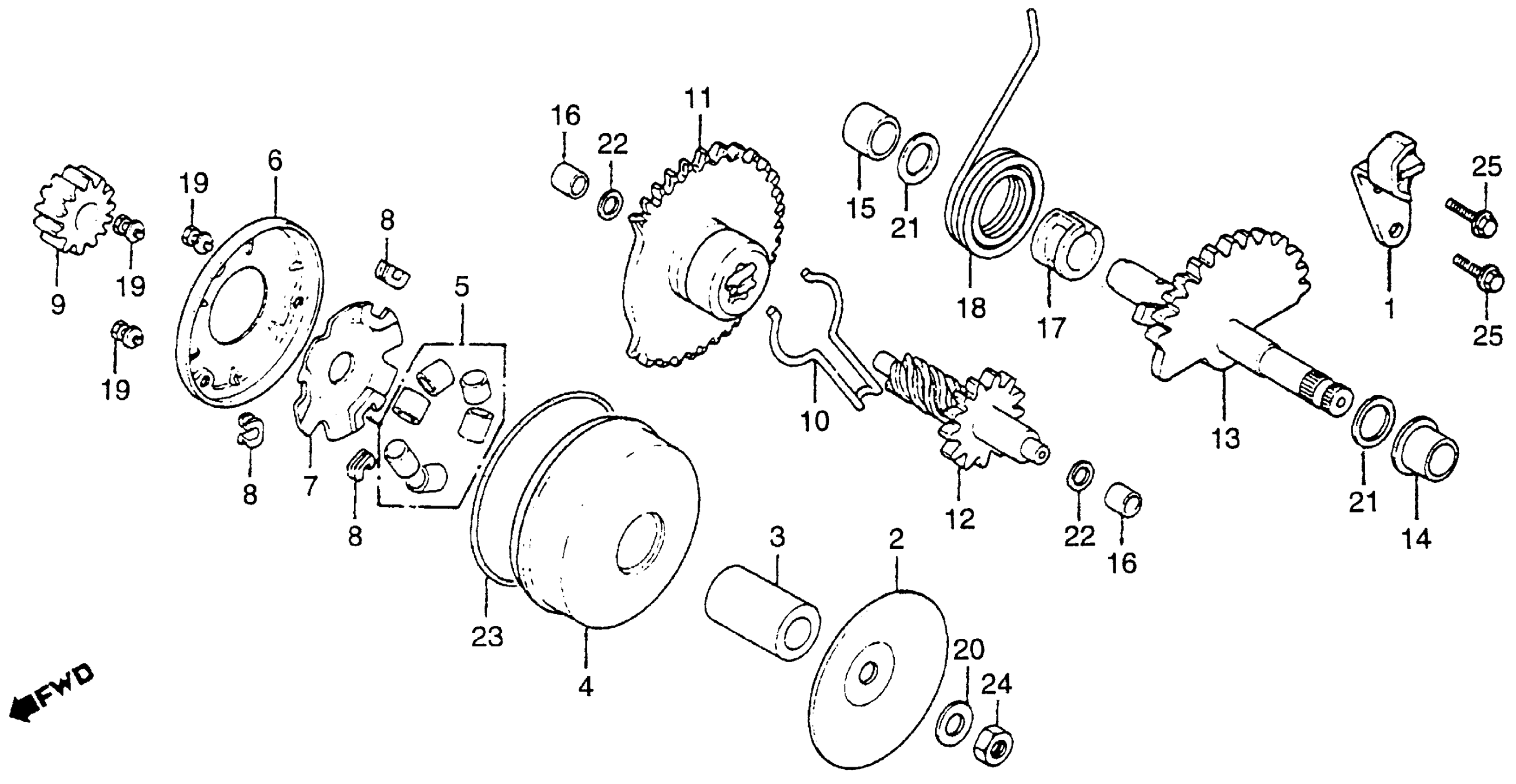

Honda NX50MA (82) EXPRESS SR, JPN, VIN# JH2AB040-CS100002 DRIVE FACE + KICK STARTER Diagram
#
Description
Price
1
STOPPER, KICK RETURN
11205-187-013
Unavailable
2
FACE, DRIVE This part replaces 22102-187-000.
22102-197-611
Unavailable
2
FACE, DRIVE
22102-197-611
Unavailable
3
BOSS, DRIVE FACE
22105-187-000
Unavailable
4
FACE, MOVABLE DRIVE
22110-187-000
Unavailable
5
ROLLER SET, WEIGHT
22123-187-305
Unavailable
6
SEAL, MOVABLE FACE This part replaces 22126-GA7-700.
22126-187-910
Unavailable
6
SEAL, MOVABLE FACE
22126-187-910
Unavailable
7
PLATE, LAMP (NOT AVAILABLE)
22131-187-000
Unavailable
8
PIECE, SLIDE (NOT AVAILABLE)
22132-187-000
Unavailable
9
GEAR, KICK STARTER DRIVEN (NOT AVAILABLE)
28221-187-000
Unavailable
10
SPRING, STARTER GEAR FRICTION (NOT AVAILABLE)
28223-187-000
Unavailable
11
GEAR, STARTER IDLE
28230-187-020
Unavailable
12
SHAFT, STARTER IDLE (NOT AVAILABLE)
28240-187-010
Unavailable
13
SPINDLE, KICK STARTER (NOT AVAILABLE)
28250-187-000
Unavailable
14
BUSH A, KICK SPINDLE (NOT AVAILABLE)
28253-187-003
Unavailable
15
BUSH B, KICK SPINDLE
28254-187-003
Unavailable
16
BUSH (10X14X8.5)
28255-187-003
Unavailable
17
COLLAR, KICK SPINDLE (NOT AVAILABLE)
28262-187-000
Unavailable
18
SPRING, KICK STARTER (NOT AVAILABLE)
28281-187-010
Unavailable
23
O-RING (78X2.5)
91302-187-000
Unavailable
