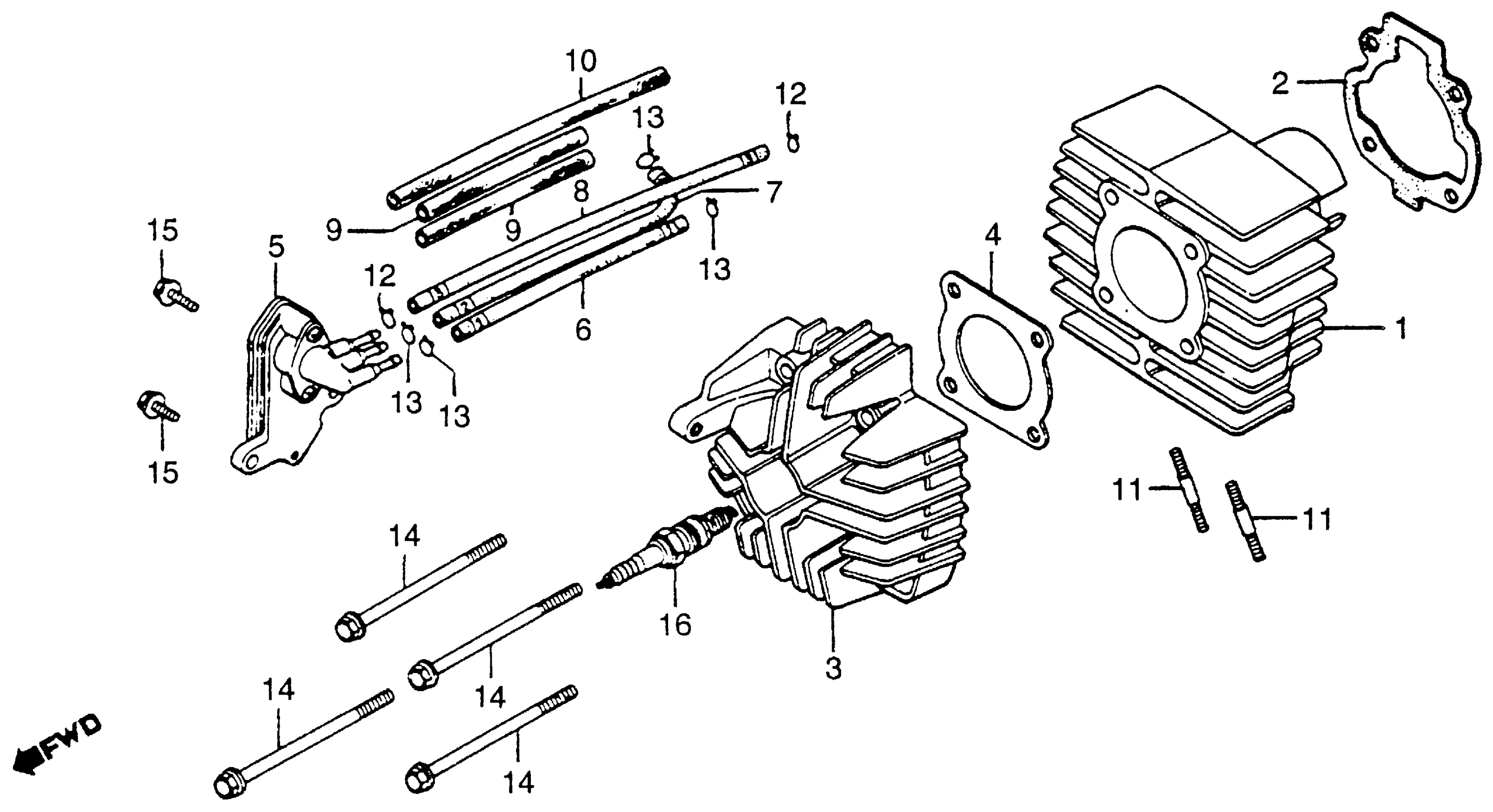

Honda NX50MA (82) EXPRESS SR, JPN, VIN# JH2AB040-CS100002 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER ASSY. A (NOT AVAILABLE)

121A0-187-000

Unavailable

1

CYLINDER ASSY. B (NOT AVAILABLE)

121A1-187-000

Unavailable

1

CYLINDER ASSY. A (NOT AVAILABLE) This part replaces 12100-187-305.

121A0-187-000

Unavailable

1

CYLINDER ASSY. B (NOT AVAILABLE) This part replaces 12101-187-305.

121A1-187-000

Unavailable

2

GASKET, CYLINDER This part replaces 12191-147-306.

12191-147-701

$6.93

2

GASKET, CYLINDER This part replaces 12191-147-700.

12191-147-701

$6.93

2

GASKET, CYLINDER

12191-147-701

$6.93

3

CYLINDER HEAD (NOT AVAILABLE)

12200-187-000

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-GM8-000.

12251-GN2-000

$5.57

4

GASKET, CYLINDER HEAD

12251-GN2-000

$5.57

4

GASKET, CYLINDER HEAD This part replaces 12251-147-000.

12251-GN2-000

$5.57

5

BOX ASSY., CONTROL (NOT AVAILABLE)

16600-187-013

Unavailable

6

TUBE 1, CONTROL VALVE (NOT AVAILABLE)

16605-187-000

Unavailable

7

TUBE 2, CONTROL VALVE (NOT AVAILABLE)

16606-187-000

Unavailable

8

TUBE 3, CONTROL VALVE (NOT AVAILABLE)

16607-187-000

Unavailable

9

TUBE A, CONTROL VALVE (NOT AVAILABLE)

16611-187-000

Unavailable

10

TUBE B, CONTROL VALVE (NOT AVAILABLE)

16621-187-000

Unavailable

11

BOLT, STUD (6X16) This part replaces 92700-06028-0B.

92900-06016-0B

$1.49

12

CLIP, TUBE (B8)

95002-02080

$1.80

13

CLIP, TUBE (B10)

95002-02100

$1.90

14

BOLT, FLANGE (6X100) This part replaces 95800-06100-00.

95801-06100-00

$1.74

14

BOLT, FLANGE (6X100)

95801-06100-00

$1.74

15

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

15

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

16

SPARK PLUG (BPR4HS) (NGK) | (Optional). This part replaces 98076-54717.

98076-54747

$2.53

16

SPARK PLUG (W14FPR-L) (DENSO) | (Optional). This part replaces 98076-54727.

98076-54756

Unavailable

16

SPARK PLUG (BPR4HS) (NGK) | (Optional).

98076-54747

$2.53

16

SPARK PLUG (W14FPR-L) (DENSO) | (Optional).

98076-54756

Unavailable

16

SPARK PLUG (BR5HS) (NGK)

98076-55716

$2.20

16

SPARK PLUG (W16FPR) (DENSO) This part replaces 98076-55726.

98076-55756

Unavailable

16

SPARK PLUG (W16FPR) (DENSO)

98076-55756

Unavailable

16

SPARK PLUG (BPR6HS) (NGK) | (Optional).

98076-56717

$2.52

16

SPARK PLUG (W20FR-L) (DENSO) | (Optional).

98076-5672G

$2.54

16

SPARK PLUG (W20FR-L) (DENSO) | (Optional). This part replaces 98076-56726.

98076-5672G

$2.54
