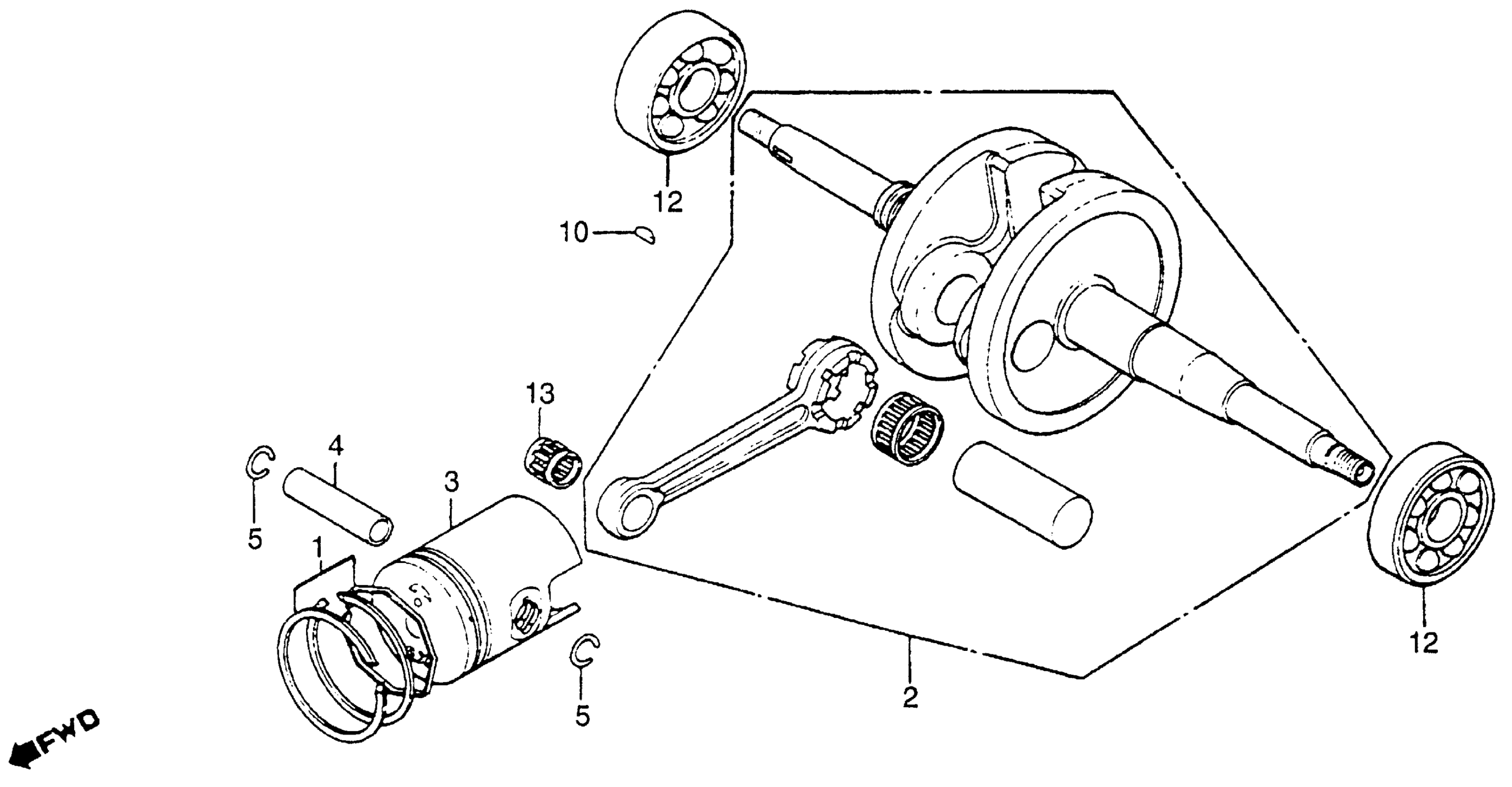

Honda NX50MA (82) EXPRESS SR, JPN, VIN# JH2AB040-CS100002 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD) (TEIKOKU)

130A1-GA6-003

Unavailable

1

RING SET, PISTON (STD) (TEIKOKU) This part replaces 130A1-GA6-005.

130A1-GA6-003

Unavailable

1

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional).

130A2-GA6-003

Unavailable

1

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional). This part replaces 130A2-GA6-005.

130A2-GA6-003

Unavailable

1

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional).

130A3-GA6-003

Unavailable

1

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional). This part replaces 130A3-GA6-005.

130A3-GA6-003

Unavailable

1

RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE) | (Optional).

130A4-GA6-003

Unavailable

1

RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE) | (Optional). This part replaces 130A4-GA6-005.

130A4-GA6-003

Unavailable

1

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional).

130A5-GA6-003

Unavailable

1

RING SET, PISTON (1.00) (NIPPON) (NOT AVAILABLE) | (Optional). This part replaces 130A5-GA6-005.

130A5-GA6-003

Unavailable

2

CRANKSHAFT

13000-187-000

Unavailable

3

PISTON (OS 0.25) | (Optional).

131A0-187-003

Unavailable

3

PISTON (OS 0.50) | (Optional).

131B0-187-003

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

131C0-187-003

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

131D0-187-003

Unavailable

3

PISTON B

13103-187-023

Unavailable

4

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$9.55

4

PIN, PISTON

13111-GS7-000

$9.55

4

PIN, PISTON This part replaces 13111-122-000.

13111-GS7-000

$9.55

5

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

10

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

10

KEY, WOODRUFF (3MM) This part replaces 90741-147-000.

90741-035-000

$4.19

12

BEARING, RADIAL BALL (6004)

91001-148-013

Unavailable

13

BEARING, CONNECTING ROD (TOYO)

91102-GA7-008

$13.19

13

BEARING, CONNECTING ROD (TOYO) This part replaces 91102-122-004.

91102-GA7-008

$13.19

13

BEARING, CONNECTING ROD (TOYO) This part replaces 91102-122-008.

91102-GA7-008

$13.19
