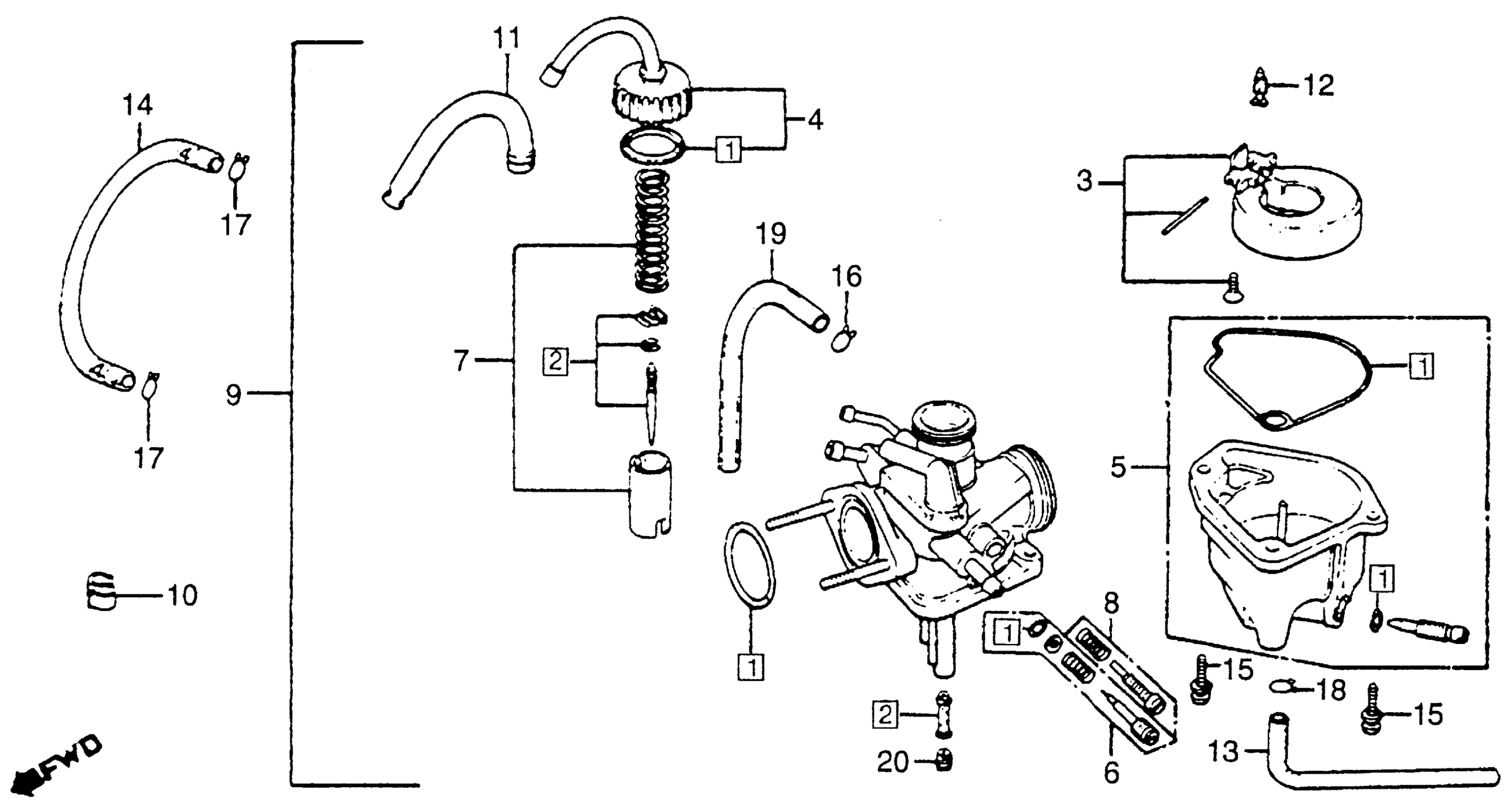

Honda NX50MA (82) EXPRESS SR, JPN, VIN# JH2AB040-CS100002 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-GF8-305

$19.18

1

GASKET SET This part replaces 16010-187-003.

16010-GF8-305

$19.18

2

NEEDLE SET, JET

16012-187-731

Unavailable

3

FLOAT SET

16013-147-004

$44.62

4

TOP SET (NOT AVAILABLE)

16014-187-013

Unavailable

5

CHAMBER SET, FLOAT

16015-187-671

Unavailable

6

SCREW SET A (NOT AVAILABLE)

16016-187-003

Unavailable

7

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-187-731

Unavailable

8

SCREW SET B

16028-GC8-004

$16.35

8

SCREW SET B This part replaces 16028-187-003.

16028-GC8-004

$16.35

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-187-673

Unavailable

10

CLIP, OVERFLOW TUBE (NOT AVAILABLE)

16103-187-000

Unavailable

11

CAP, CABLE (NOT AVAILABLE)

16118-187-003

Unavailable

12

VALVE, FLOAT

16155-883-005

$20.11

13

TUBE, FUEL This part replaces 16199-187-003.

16199-KG4-405

$9.49

14

TUBE 4, CONTROL VALVE (NOT AVAILABLE)

16608-187-000

Unavailable

15

SCREW-WASHER (4X12)

93892-04012-08

$1.49

16

CLIP, TUBE (B7)

95002-02070

$1.80

17

CLIP, TUBE (B10)

95002-02100

$1.90

18

CLIP, TUBE (B6.5)

95002-02650

$1.49

19

BULK HOSE, VACUUM (3.5X1000) (3.5X130)

95005-35001-20M

$9.67

20

JET, MAIN (#65) | (Optional). This part replaces 99101-187-0650.

99101-ZG0-0650

$6.17

20

JET, MAIN (#80)

99101-187-0800

Unavailable
