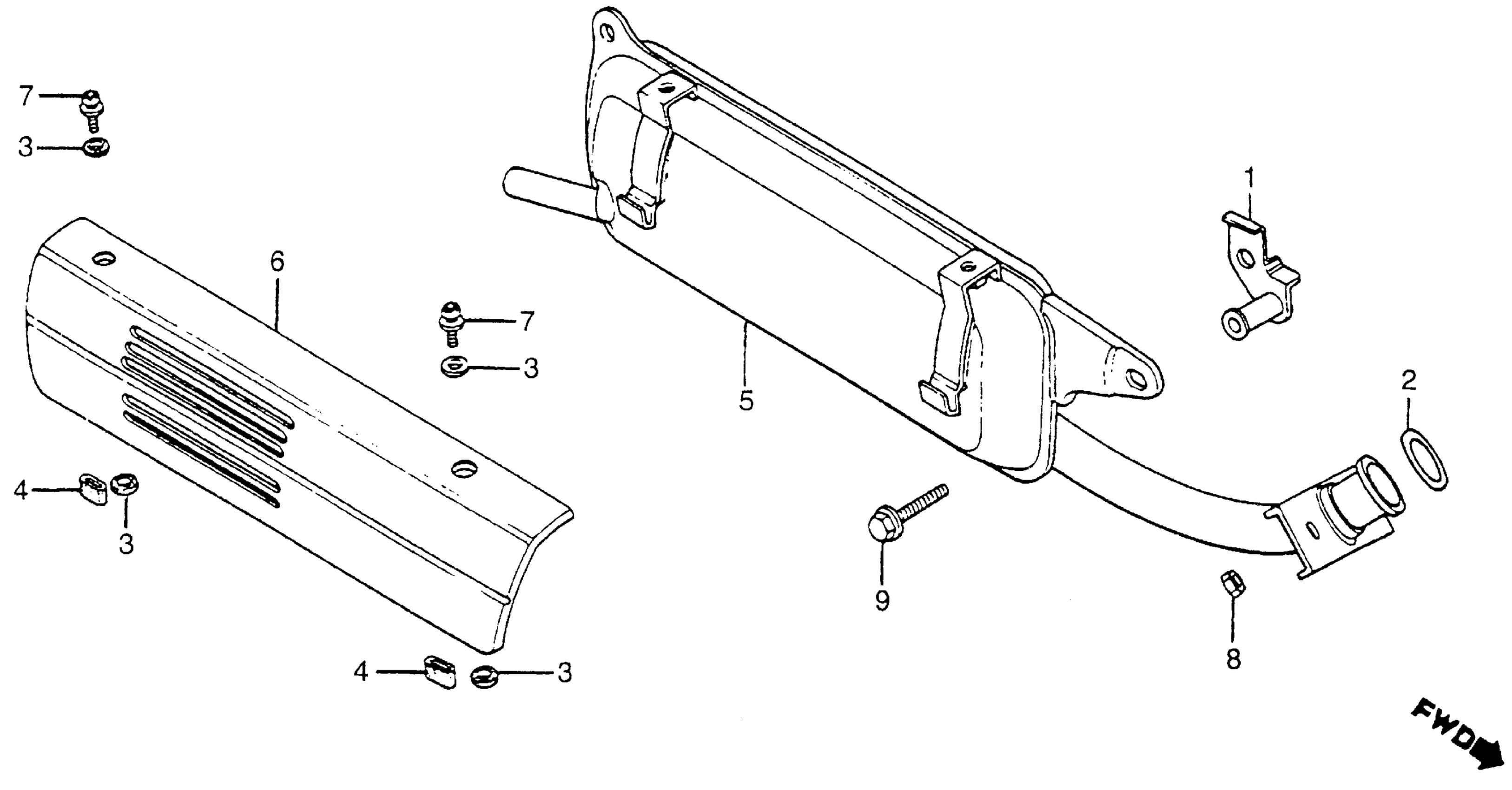

Honda NX50MA (81) EXPRESS SR, JPN, VIN# JH2AB040-BS000007 TO JH2AB040-BS019996 MUFFLER Diagram

#

Description
Price

1

STAY, CARBURETOR COVER

17232-187-010

Unavailable

2

GASKET, EX. PIPE This part replaces 18291-147-000.

18292-GY1-610

$6.34

2

GASKET, EX. PIPE This part replaces 18291-147-306.

18292-GY1-610

$6.34

2

GASKET, EX. PIPE

18292-GY1-610

$6.34

3

GASKET, MUFFLER PROTECTOR

18292-GY1-860

$2.94

3

GASKET, MUFFLER PROTECTOR This part replaces 18292-KS3-920.

18292-GY1-860

$2.94

3

GASKET, MUFFLER PROTECTOR This part replaces 18292-147-000.

18292-GY1-860

$2.94

4

RUBBER, PROTECTOR GASKET

18293-147-000

$4.04

5

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-187-000.

18300-187-007

Unavailable

5

MUFFLER, EX. (NOT AVAILABLE)

18300-187-007

Unavailable

6

PROTECTOR, MUFFLER *NH1* (BLACK) (NOT AVAILABLE) | Use up to Frame SN BS011896 This part replaces 18318-187-000ZC.

18318-187-010ZC

Unavailable

6

PROTECTOR, MUFFLER *NH1* (BLACK) (NOT AVAILABLE)

18318-187-010ZC

Unavailable

7

SCREW-WASHER (5X10)

93891-05010-00

$1.49

8

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

8

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

8

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

8

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

8

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

8

NUT, HEX. (6MM)

94001-06200-0S

$1.49

8

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

9

BOLT, FLANGE (8X60) This part replaces 95700-08060-00.

95701-08060-00

$1.49

9

BOLT, FLANGE (8X60)

95701-08060-00

$1.49
