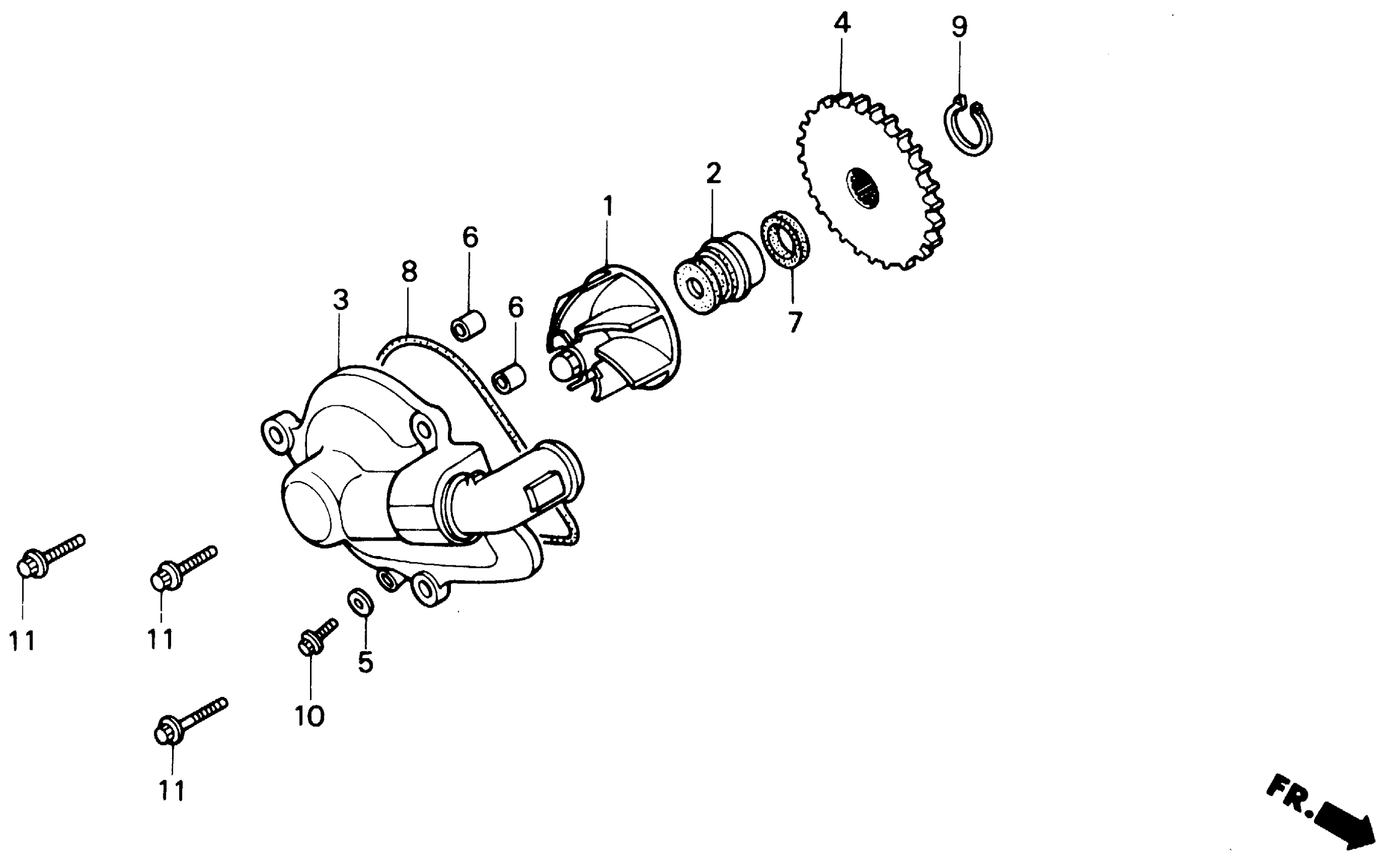

Honda NX250A (90) MOTORCYCLE, JPN, VIN# JH2MD210-LK200002 WATER PUMP Diagram

IMPELLER, WATER PUMP

19214-KV3-000

Unavailable

SEAL, MECHANICAL This part replaces 19217-PA5-003.

19217-PH9-013

Unavailable

COVER, WATER PUMP (NOT AVAILABLE)

19220-KW3-000

Unavailable

GEAR, WATER PUMP DRIVEN (26T)

19245-KW3-000

Unavailable

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

PIN, DOWEL (8X8)

90702-MB0-000

$3.80

OIL SEAL (17.2X26X6) (KOYO)

91205-KW3-003

Unavailable

O-RING (69X2)

91302-MS2-003

$4.13

O-RING (69X2) This part replaces 91355-HA2-671.

91302-MS2-003

$4.13

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
