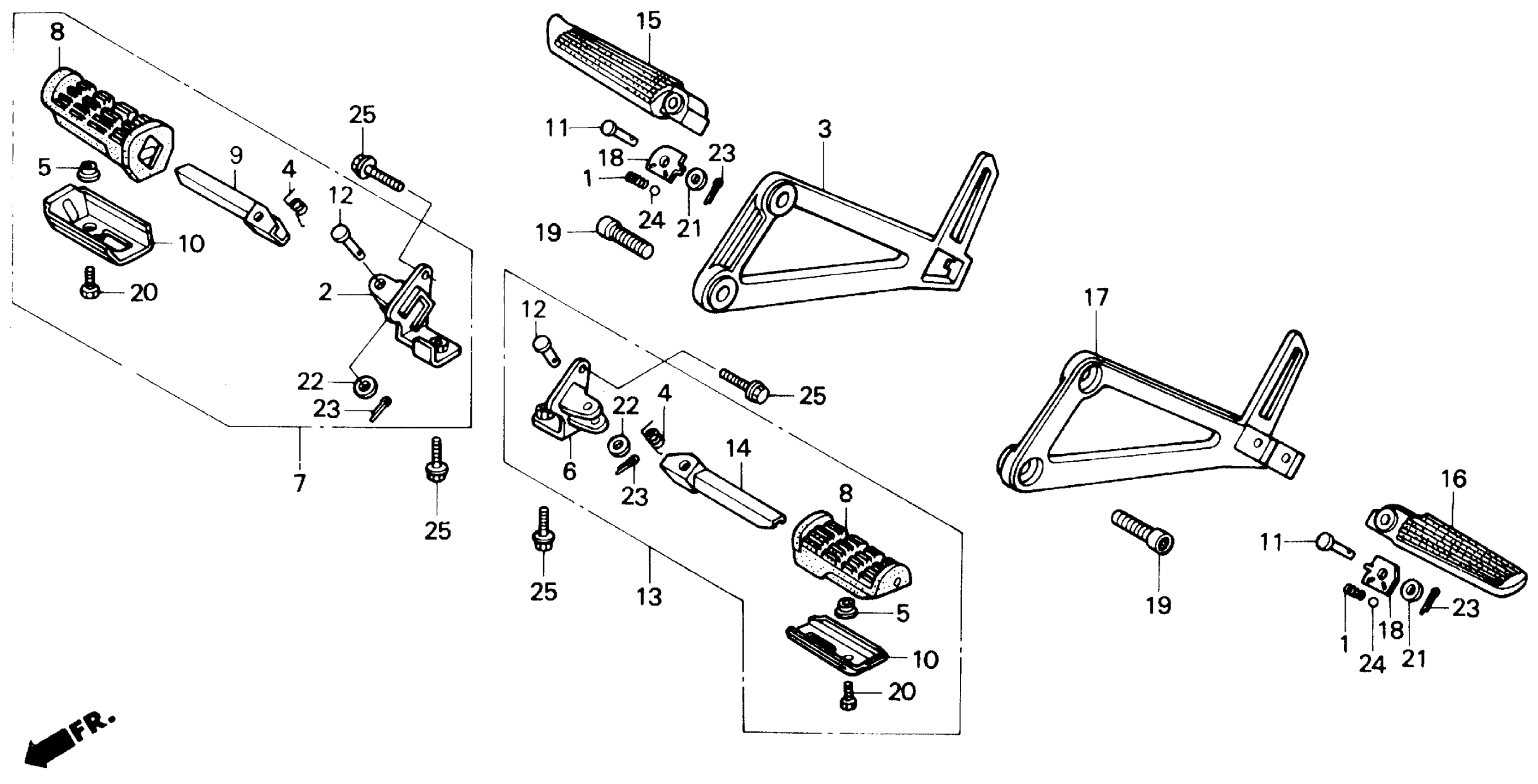

Honda NX250A (90) MOTORCYCLE, JPN, VIN# JH2MD210-LK200002 STEP Diagram

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

BRACKET, R. STEP *NH196* (ROSS WHITE)

50610-KW3-020ZC

Unavailable

BRACKET, R. PILLION STEP

50612-KW3-000

Unavailable

SPRING, STEP RETURN

50617-MB2-000

Unavailable

COLLAR (6.5X11X3)

50618-KE8-000

$2.75

BRACKET, L. STEP *NH196* (ROSS WHITE)

50620-KW3-020ZC

Unavailable

BAR ASSY., R. MAIN STEP *NH196* (ROSS WHITE)

50630-KW3-010ZC

Unavailable

RUBBER, STEP

50632-MB2-000

Unavailable

BAR, R. STEP

50635-KS5-000

Unavailable

PLATE B, STEP

50636-KS5-000

Unavailable

PIN, STEP BAR JOINT

50639-MB2-000

Unavailable

PIN, STEP BAR JOINT This part replaces 50639-MJ0-940.

50639-MJ0-000

Unavailable

BAR ASSY., L. MAIN STEP *NH196* (ROSS WHITE)

50640-KW3-010ZC

Unavailable

BAR, L. STEP

50645-KS5-000

Unavailable

ARM, R. PILLION STEP

50660-MM4-000

Unavailable

ARM, L. PILLION STEP

50670-MM4-000

Unavailable

BRACKET, L. PILLION STEP

50712-KW3-000

Unavailable

PLATE, PILLION STEP CLICK

50718-MM4-010

Unavailable

BOLT, SOCKET (8X20)

90157-MF5-000

$6.31

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

WASHER, CONTROL

16579-ZG1-750

Unavailable

WASHER, PLAIN (8MM)

94102-08000

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

BOLT, FLANGE (10X25) This part replaces 96300-10020-00.

96300-10025-00

$2.39

BOLT, FLANGE (10X25)

96300-10025-00

$2.39
