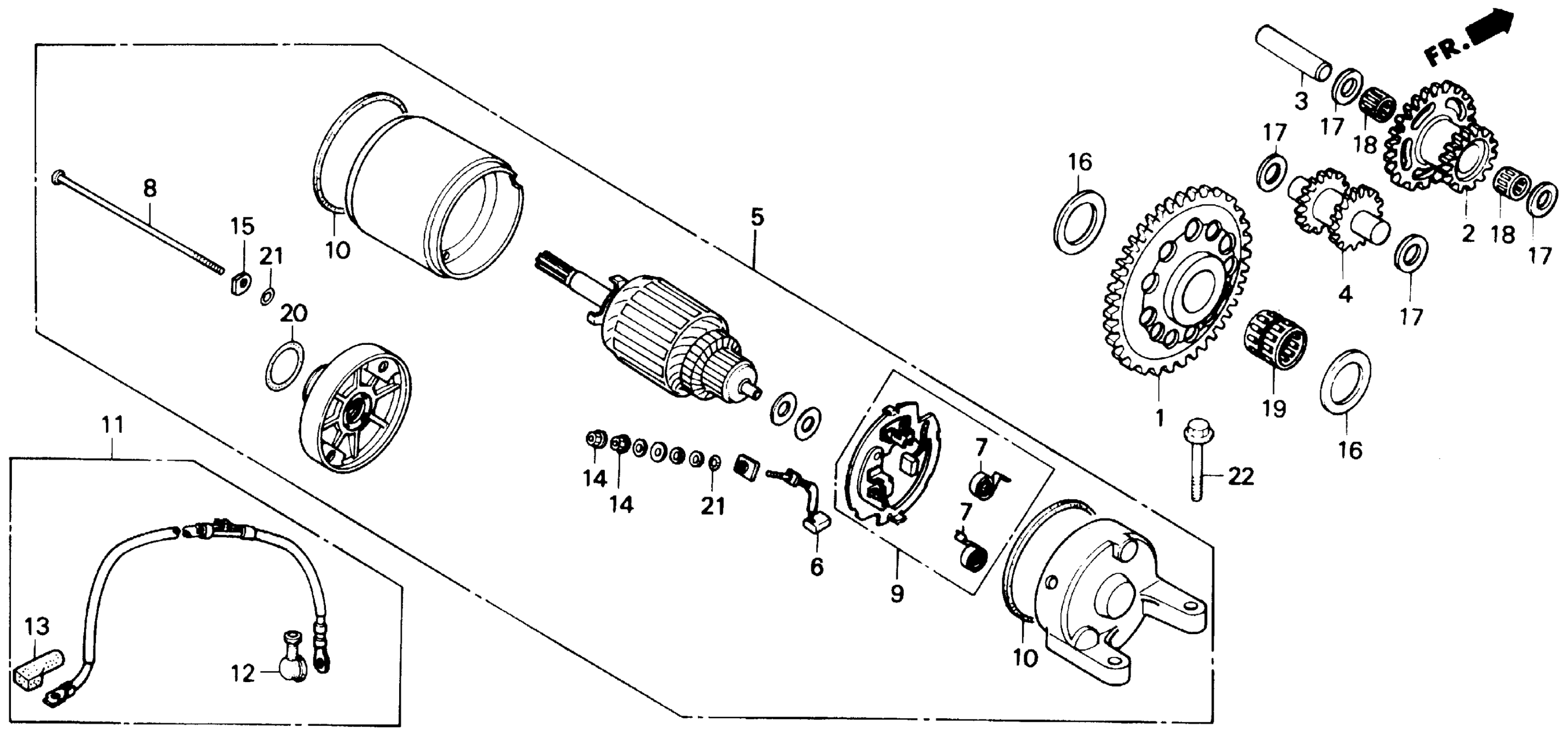

Honda NX250A (90) MOTORCYCLE, JPN, VIN# JH2MD210-LK200002 STARTING MOTOR Diagram

#

Description
Price

1

GEAR, STARTING DRIVEN (60T)

28110-KW3-000

Unavailable

2

GEAR, REDUCTION STARTER (69T/20T)

28131-KR0-000

Unavailable

3

SHAFT, REDUCTION GEAR

28132-KR0-000

Unavailable

4

GEAR, STARTER IDLE (12T/12T)

28141-KR0-010

Unavailable

5

STARTER MOTOR ASSY. This part replaces 31200-KW3-008.

31200-KW3-018

Unavailable

5

STARTER MOTOR ASSY.

31200-KW3-018

Unavailable

6

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$24.71

7

SPRING, CARBON BRUSH

31204-KS5-901

$2.92

8

BOLT, SETTING

31205-KL8-711

$4.51

9

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31206-KW1-901

$26.42

10

RING

31207-KS5-901

$3.12

11

CABLE, STARTER MOTOR

32410-KW3-000

Unavailable

12

COVER, TERMINAL

32411-KG1-920

Unavailable

13

COVER, TERMINAL

32412-KW3-000

Unavailable

14

NUT-WASHER (6MM)

90071-MB0-000

$1.97

15

WASHER, STEEL PLATE

90122-MN4-008

$2.97

16

WASHER, THRUST (26MM) (NOT AVAILABLE)

90407-415-000

$5.64

17

WASHER (10X21)

90452-187-000

$2.36

18

BEARING, NEEDLE (10X14X10) (NTN) This part replaces 91021-MC8-004.

91021-MC8-008

Unavailable

18

BEARING, NEEDLE (10X14X10) (NTN)

91021-MC8-008

Unavailable

19

BEARING, NEEDLE (26X31X24) (NTN)

91102-KR0-003

$30.16

20

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

20

O-RING (24.4X3.1)

91312-MG7-003

$6.34

21

O-RING

91320-MB0-000

$2.43

22

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
