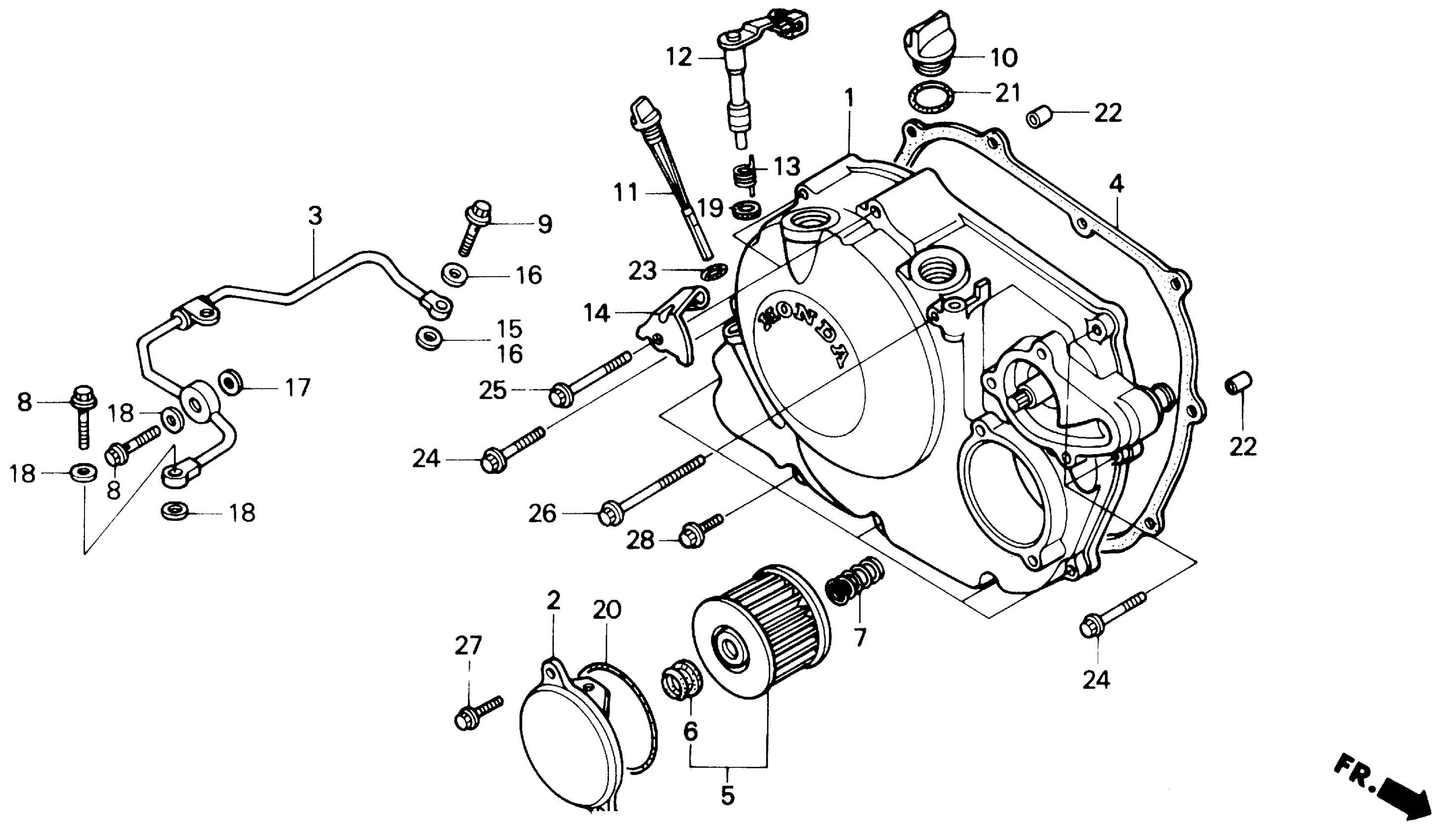

Honda NX250A (90) MOTORCYCLE, JPN, VIN# JH2MD210-LK200002 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE | Use up to Engine SN 2201662 This part replaces 11330-KW3-000.

11330-KW3-010

Unavailable

1

COVER, R. CRANKCASE

11330-KW3-010

Unavailable

2

COVER, OIL FILTER (NOT AVAILABLE)

11333-KW3-000

Unavailable

3

PIPE, OIL PASSAGE

11335-KW3-000

Unavailable

4

GASKET, R. CRANKCASE COVER This part replaces 11394-KW3-000.

11394-KW3-880

Unavailable

4

GASKET, R. CRANKCASE COVER

11394-KW3-880

Unavailable

5

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.54

5

ELEMENT, OIL FILTER

15410-KF0-315

$5.54

6

RUBBER, FILTER

15413-MC8-000

$3.35

7

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

8

BOLT, FLANGE (8X28)

15532-KK0-770

$7.00

9

BOLT, FLANGE (7X25)

15533-KW3-000

Unavailable

10

CAP, OIL This part replaces 15611-381-000.

25611-733-000

$6.34

11

DIPSTICK, OIL

15650-KW3-010

Unavailable

12

LEVER, CLUTCH

22810-KW3-000

Unavailable

13

SPRING, CLUTCH LEVER

22815-KM7-700

$4.17

14

RECEIVER, CLUTCH CABLE

22825-KW3-000

Unavailable

15

WASHER (7MM)

90401-KK6-000

Unavailable

16

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

17

WASHER, SEALING (8MM)

90475-KW3-000

Unavailable

18

WASHER C (8MM)

90475-703-000

$1.49

19

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

20

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

21

O-RING (16MM)

91303-800-000

$2.23

22

PIN, DOWEL (8X14)

94301-08140

$2.25

23

O-RING (8.4X2.4)

94608-10000

$1.49

24

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

25

BOLT, FLANGE (6X65)

96001-06065-07

$1.97

26

BOLT, FLANGE (6X70)

96001-06070-07

$2.15

27

BOLT, FLANGE (6X16)

96001-06016-07

$1.49

28

BOLT, FLANGE (6X28)

96001-06028-07

$1.51
