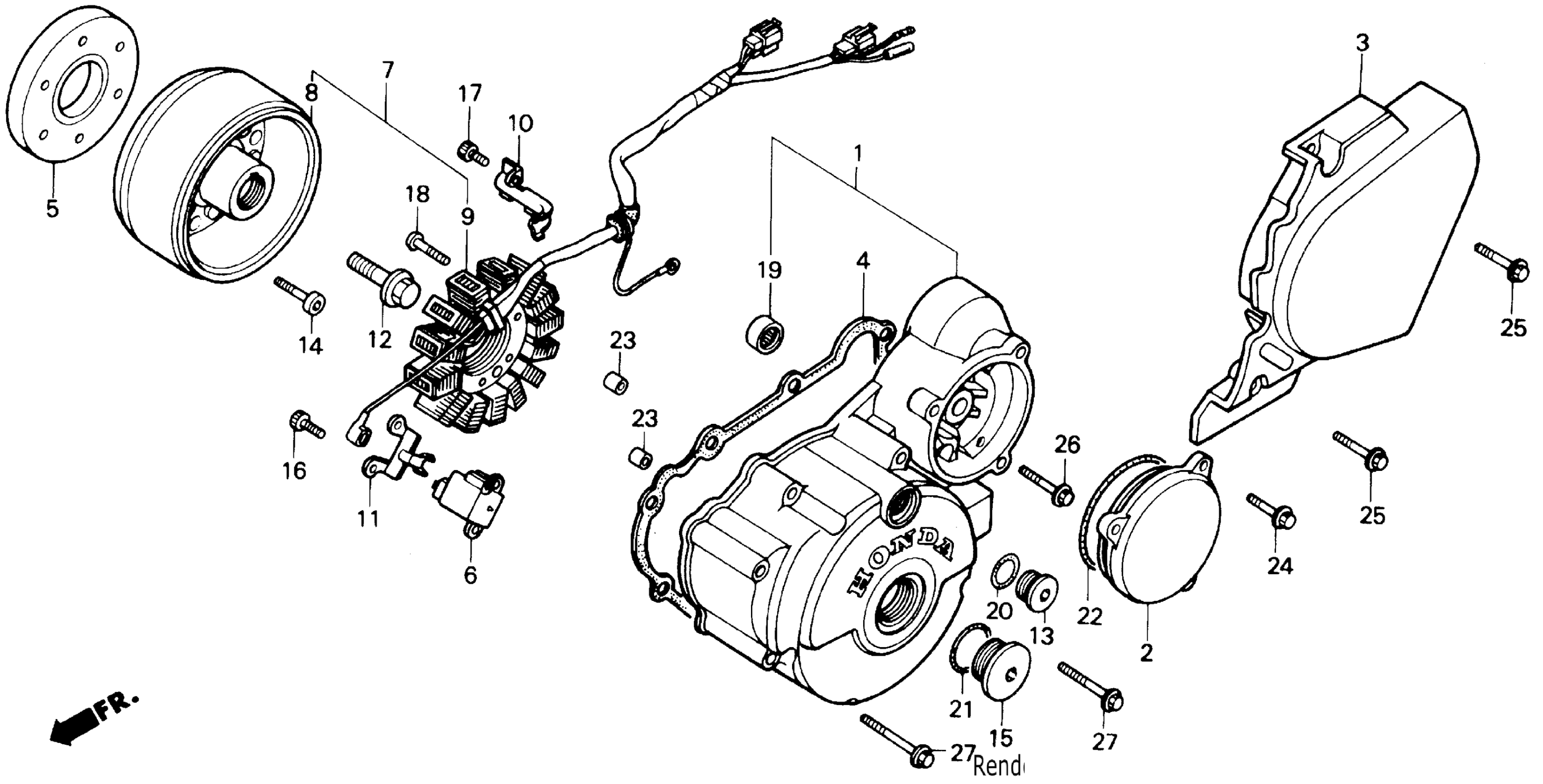

Honda NX250A (90) MOTORCYCLE, JPN, VIN# JH2MD210-LK200002 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11341-KW3-010

Unavailable

2

COVER, REDUCTION GEAR

11355-KS5-000

Unavailable

3

COVER, L. RR. CRANKCASE

11360-KW3-010

Unavailable

4

GASKET, L. This part replaces 11395-KW3-000.

11395-KW3-882

$15.22

4

GASKET, L. This part replaces 11395-KW3-880.

11395-KW3-882

$15.22

5

CLUTCH, STARTING ONE-WAY This part replaces 28125-KW3-005.

28125-KW3-006

$150.54

5

CLUTCH, STARTING ONE-WAY

28125-KW3-006

$150.54

6

GENERATOR ASSY., PULSE (TEC)

30300-HA0-033

$40.74

7

GENERATOR ASSY., FLYWHEEL TYPEA.C. (DENSO) (NOT AVAILABLE)

31100-KW3-014

Unavailable

8

FLYWHEEL (DENSO)

31110-KW3-014

Unavailable

9

STATOR (DENSO)

31120-KW3-004

Unavailable

10

CLAMP, ALTERNATOR WIRE This part replaces 32111-KW3-000.

32111-KW3-010

Unavailable

10

CLAMP, ALTERNATOR WIRE

32111-KW3-010

Unavailable

11

CLAMP, PULSE GENERATOR WIRE

32112-KW3-000

$4.13

12

BOLT, FLANGE (12X50)

90023-471-000

$13.00

13

CAP (14MM)

90084-MN8-010

$12.82

14

BOLT, SOCKET (6MM)

90085-413-781

$4.06

15

CAP (30MM)

90087-KW3-000

$20.93

16

BOLT, SOCKET (5X14)

90089-HB3-000

$3.31

17

BOLT, SOCKET (5X12)

90089-KR0-000

$2.92

18

BOLT, STOPPER TENSIONER SHAFT

90092-KE5-000

$4.74

19

BEARING, NEEDLE (10X14X10)

91021-KR0-000

Unavailable

20

O-RING (13.8X2.5)

91303-377-000

$3.42

21

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

22

O-RING (70X3.0)

91362-461-000

$6.93

23

PIN, DOWEL (8X14)

94301-08140

$2.25

24

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

25

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

26

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

27

BOLT, FLANGE (6X65)

96001-06065-07

$1.97
