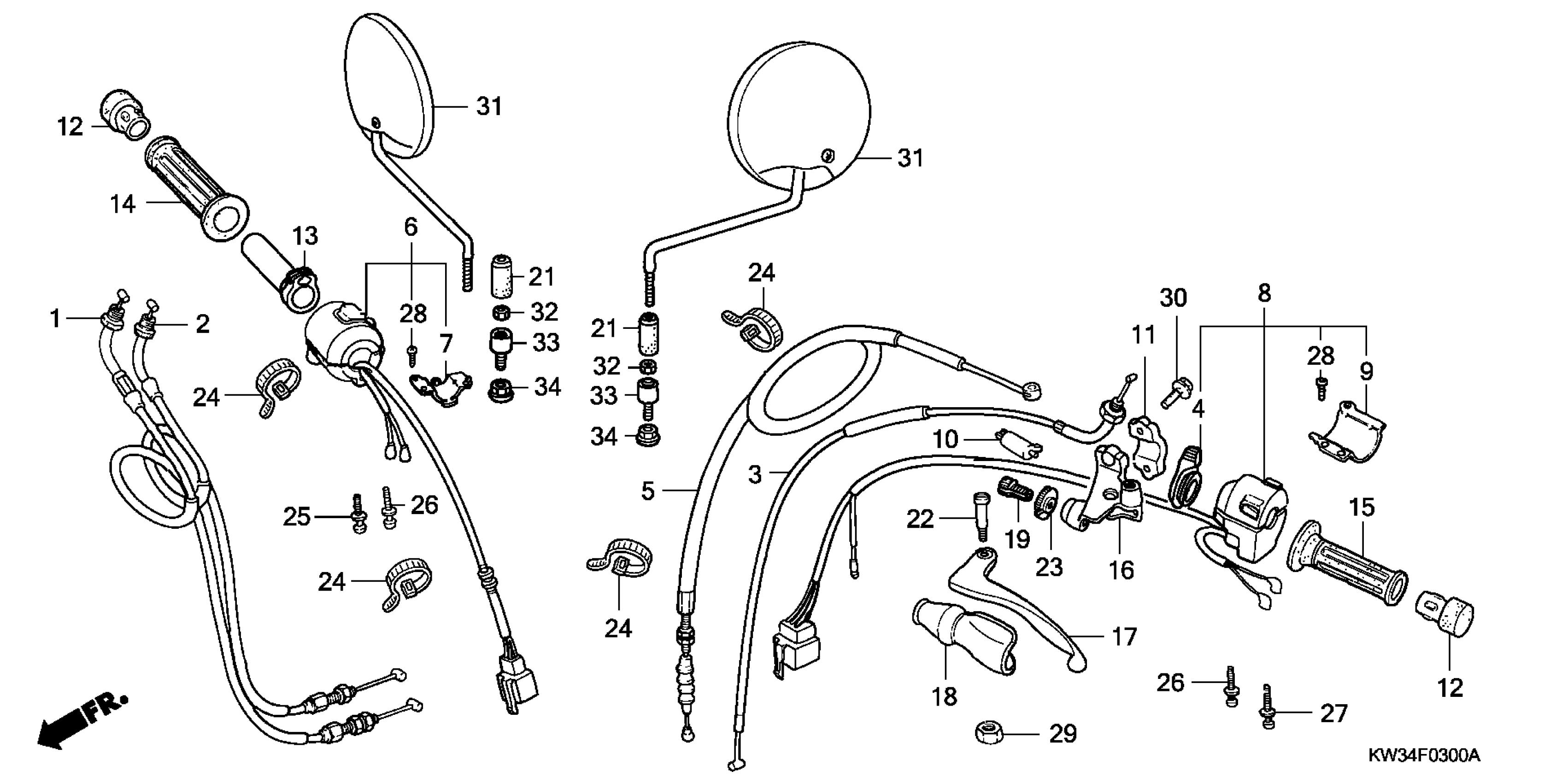

Honda NX250A (90) MOTORCYCLE, JPN, VIN# JH2MD210-LK200002 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-KW3-000

Unavailable

2

CABLE B, THROTTLE This part replaces 17920-KW3-000.

17920-KW3-610

Unavailable

2

CABLE B, THROTTLE

17920-KW3-610

Unavailable

3

CABLE, CHOKE

17950-KBK-000

Unavailable

3

CABLE, CHOKE This part replaces 17950-KW3-000.

17950-KBK-000

Unavailable

4

LEVER, CHOKE

17962-KE8-701

Unavailable

5

CABLE, CLUTCH

22870-KW3-000

Unavailable

6

SWITCH ASSY., STARTER STOP (NOT AVAILABLE)

35130-KW3-670

Unavailable

7

PLATE, STOP SWITCH SETTING

35152-KE8-703

$7.03

8

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-KW3-670

Unavailable

9

PLATE, TURN SIGNAL SWITCH SETTING

35204-KE8-702

$9.04

10

SWITCH, FR. LEVER

35330-413-003

$20.11

11

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

12

END, HANDLEBAR

53105-GR1-710

$8.37

13

PIPE, THROTTLE GRIP

53141-KT8-710

Unavailable

14

GRIP, R. HANDLE

53165-KT8-710

$8.03

15

GRIP, L. HANDLE

53166-KT8-710

$8.25

16

BRACKET, HANDLE LEVER This part replaces 53172-KEA-J50.

53172-KT7-751

$26.12

16

BRACKET, HANDLE LEVER This part replaces 53172-KT7-750.

53172-KT7-751

$26.12

16

BRACKET, HANDLE LEVER

53172-KT7-751

$26.12

17

LEVER, L. HANDLE

53178-KV0-000

$16.46

18

BOOT, HANDLE LEVER

53180-425-010

Unavailable

19

BOLT, WIRE ADJUSTING

53192-268-000

$6.23

20

MIRROR ASSY., BACK (NOT AVAILABLE)

88110-MM9-013

Unavailable

21

COVER, LOCK NUT

88112-MM9-000

$8.84

22

BOLT, HANDLE LEVER PIVOT

90113-KT7-000

Unavailable

23

NUT, FIXING

90321-MA6-750

$9.59

24

BAND, WIRE

90650-KW3-000

$4.28

25

SCREW, PAN (5X20)

93500-05020-0G

$0.82

26

SCREW, PAN (5X30)

93500-05030-0G

Unavailable

27

SCREW, PAN (5X45)

93500-05045-0G

Unavailable

28

SCREW, TAPPING (3X8)

93901-32120

$0.82

29

NUT, HEX. (6MM)

94002-06000-0S

$1.31

30

BOLT, FLANGE (6X20)

96001-06020-07

$1.25

31

MIRROR

88210-MM9-000

$25.78

32

NUT, LOCK (LEFT HAND THREAD)

90301-KBA-900

$1.24

33

RUBBER, MOUNTING

88255-MM9-000

Unavailable

34

NUT, FLANGE (10MM)

90303-428-900

$3.19

34

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.19
