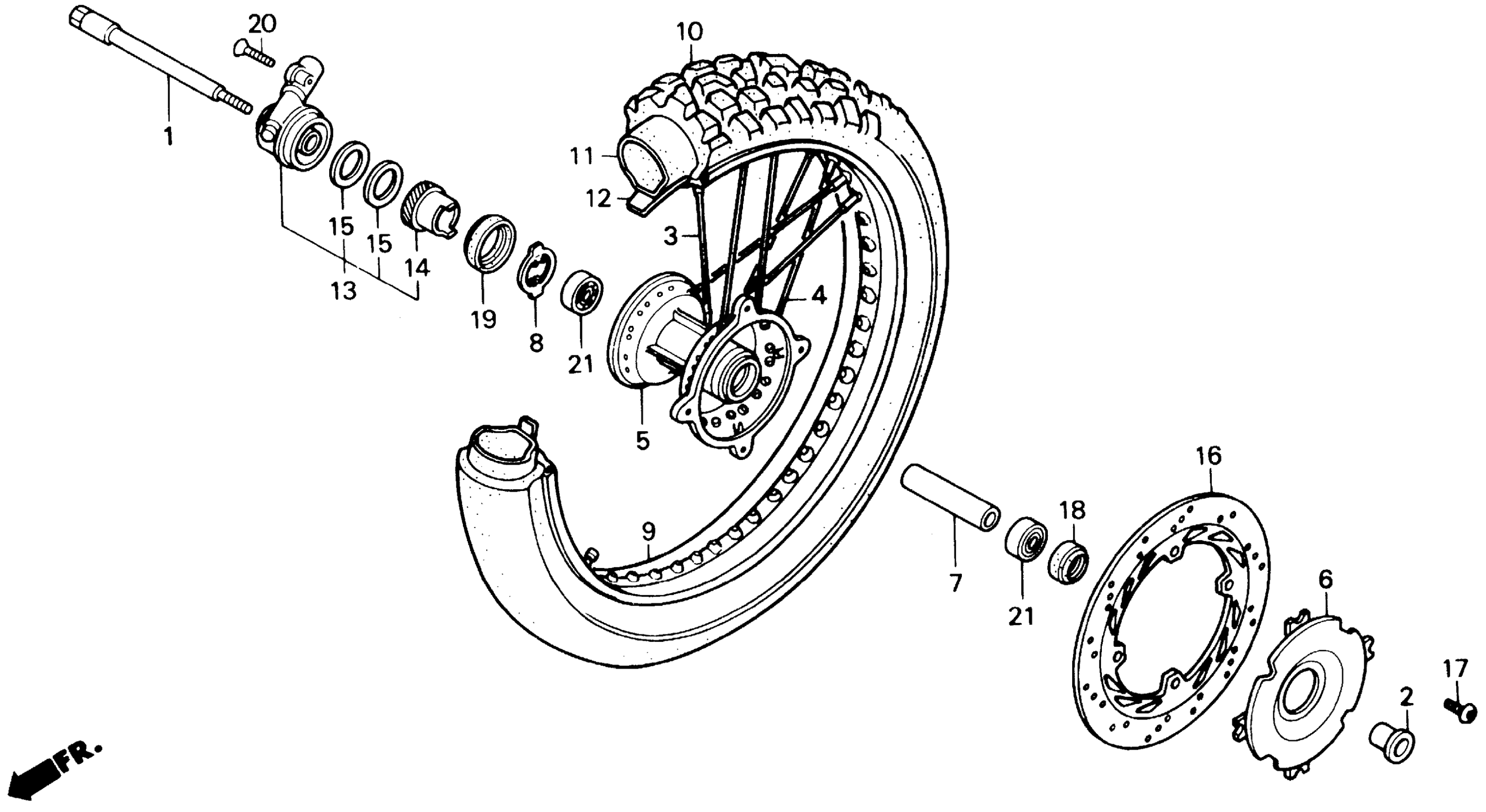

Honda NX250A (90) MOTORCYCLE, JPN, VIN# JH2MD210-LK200002 FRONT WHEEL Diagram

#

Description
Price

1

AXLE, FR. WHEEL

44301-KW3-000

Unavailable

2

COLLAR, FR. WHEEL

44311-MG3-000

$18.02

3

SPOKE SET A, FR.

446A0-KW3-900

Unavailable

4

SPOKE SET B, FR.

446B0-KW3-900

Unavailable

5

HUB, FR. WHEEL

44601-KW3-900

Unavailable

6

COVER, FR. WHEEL HUB *NH1* (BLACK)

44610-KW3-000ZB

$14.05

6

COVER, FR. HUB *NH1* (BLACK)

44610-KW3-010ZB

$14.05

7

COLLAR, FR. WHEEL DISTANCE

44620-MG3-000

$14.26

8

RETAINER, GEAR BOX

44680-MA0-000

$7.41

9

RIM, FR. WHEEL

44701-KW3-900

Unavailable

10

TIRE, FR. (90/100-19) (55P TW39) (BS) (NOT AVAILABLE)

44711-KW3-003

Unavailable

10

TIRE, FR. (90/100-19) (55P K460) (DUNLOP) (NOT AVAILABLE)

44711-KW3-004

Unavailable

11

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 08400-41310.

44712-110-003

Unavailable

11

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-KW3-003.

44712-110-003

Unavailable

11

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-KW3-004.

44712-110-003

Unavailable

11

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-401-681.

44712-110-003

Unavailable

11

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-413-009.

44712-110-003

Unavailable

12

FLAP, TIRE (DUNLOP) This part replaces 44713-KW3-003.

42713-KZ3-611

$5.90

12

FLAP, TIRE (DUNLOP) This part replaces 44713-KW3-004.

42713-KZ3-611

$5.90

12

FLAP, TIRE (DUNLOP) This part replaces 44713-300-004.

42713-KZ3-611

$5.90

13

BOX ASSY., SPEEDOMETER GEAR This part replaces 44800-KW3-000.

44800-KW3-700ZB

Unavailable

13

BOX ASSY., SPEEDOMETER GEAR

44800-KW3-700ZB

Unavailable

14

GEAR, SPEEDOMETER

44806-KW3-000

$31.13

15

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

16

DISK, FR. BRAKE

45351-KW3-900

Unavailable

17

BOLT, DISK (6X17)

90105-KN5-000

$3.89

18

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

19

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

19

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

19

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

20

SCREW, OVAL (5X20)

93700-05020-0A

$1.49

21

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85
