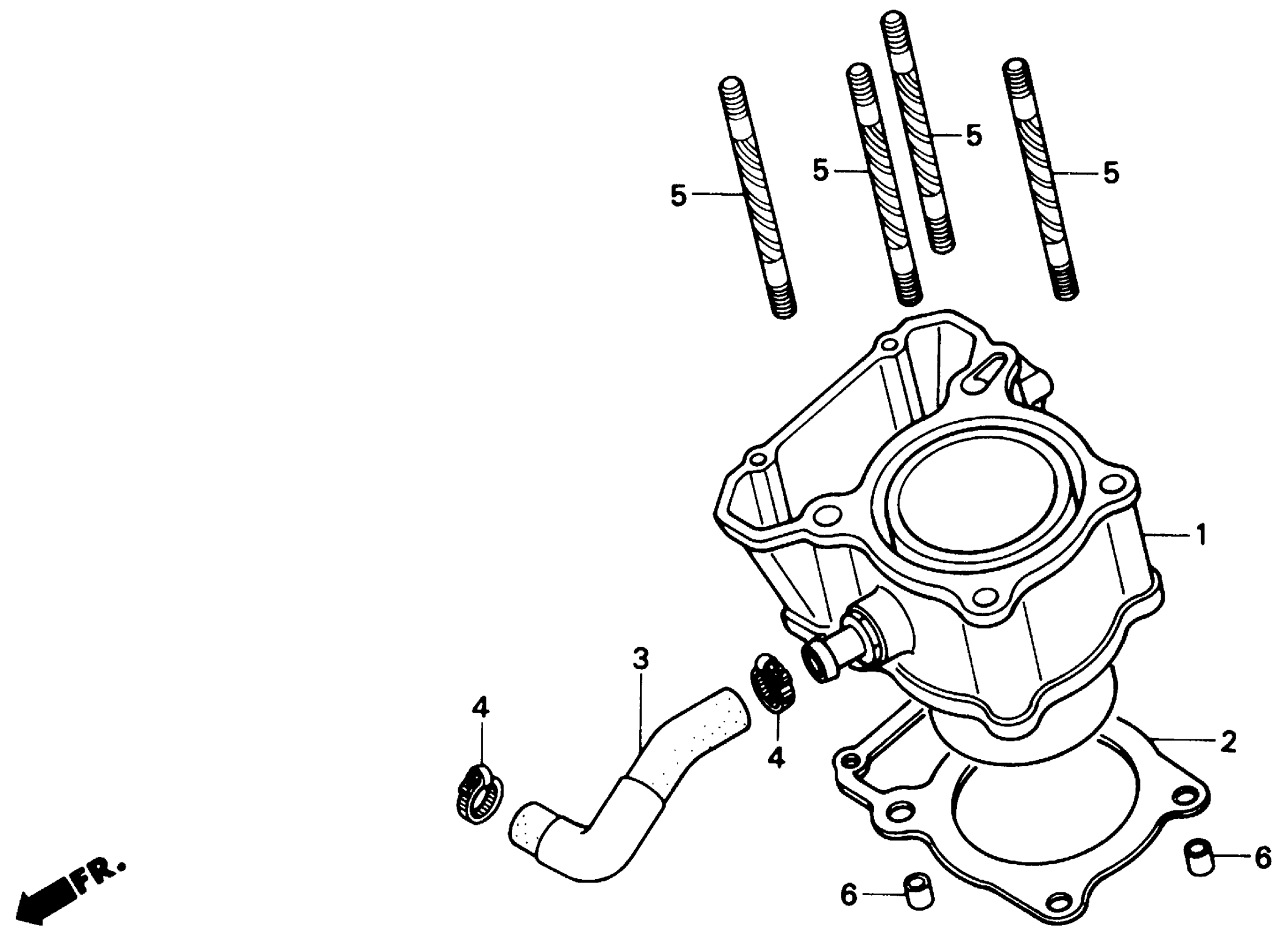

Honda NX250A (90) MOTORCYCLE, JPN, VIN# JH2MD210-LK200002 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12110-KW3-000

Unavailable

2

GASKET, CYLINDER

12191-KBK-611

Unavailable

2

GASKET, CYLINDER This part replaces 12191-KW3-000.

12191-KBK-611

Unavailable

3

HOSE, WATER

19121-KW3-000

Unavailable

4

CLAMP, HOSE (22-29MM) This part replaces 19513-MM4-003.

19517-ML7-691

$11.62

4

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

5

BOLT, STUD (10X153) (NOT AVAILABLE) This part replaces 90032-MM5-000.

90032-MM5-641

Unavailable

5

BOLT, STUD (10X153)

90032-MM5-641

Unavailable

6

PIN, DOWEL (12X20)

94301-12200

$2.29
