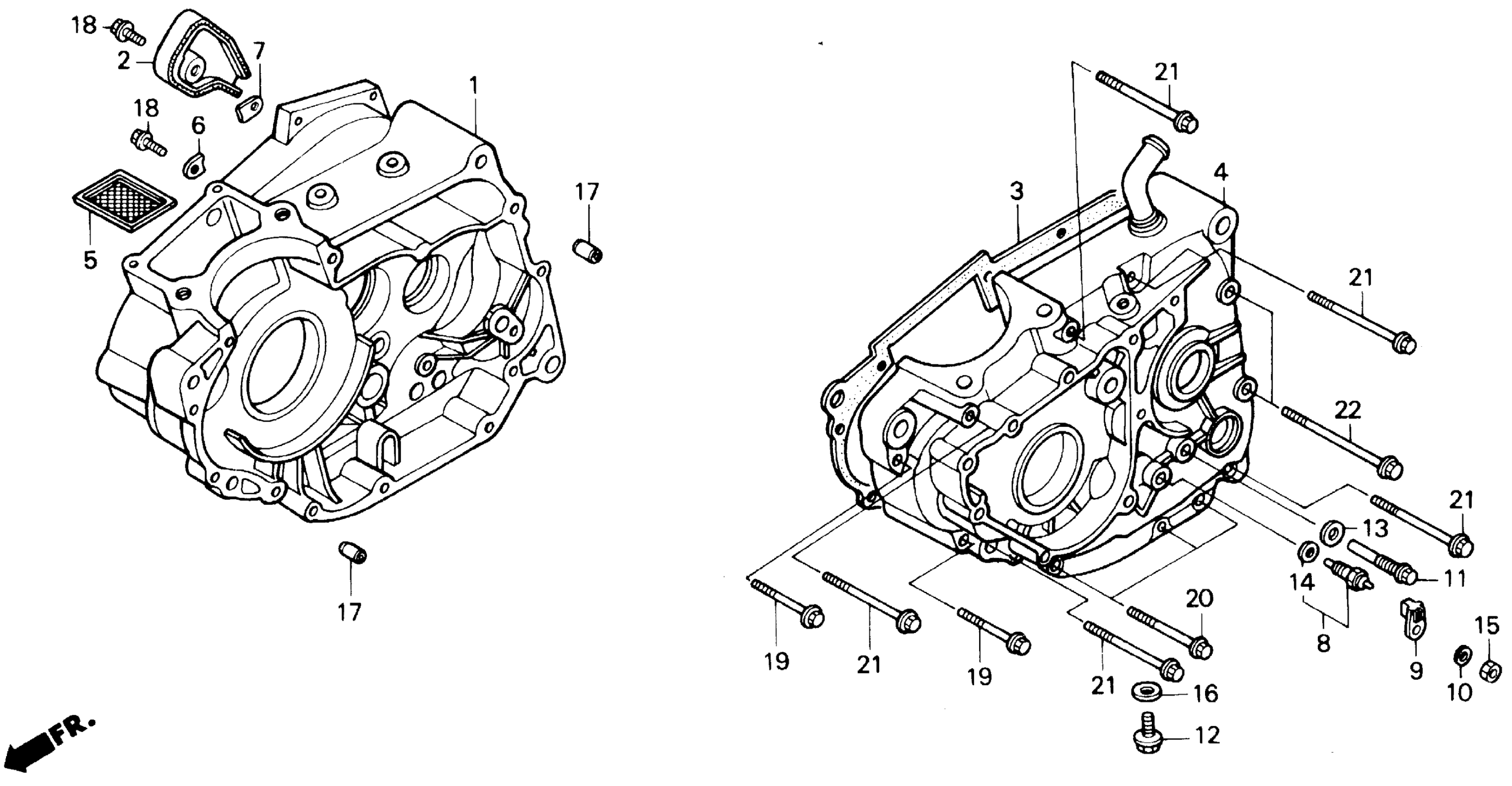

Honda NX250A (90) MOTORCYCLE, JPN, VIN# JH2MD210-LK200002 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-KW3-000

Unavailable

2

PLATE, BREATHER

11110-KW3-000

Unavailable

3

GASKET, CRANKCASE This part replaces 11191-KW3-000.

11191-KW3-880

Unavailable

3

GASKET, CRANKCASE

11191-KW3-880

Unavailable

4

CRANKCASE SET, L. This part replaces 11200-KW3-000.

11200-KW3-305

Unavailable

4

CRANKCASE SET, L.

11200-KW3-305

Unavailable

5

SCREEN, OIL FILTER

15421-KK0-000

$7.36

6

PLATE A, BEARING SETTING

23521-KW3-000

$4.26

7

PLATE B, BEARING SETTING

23522-KW3-000

Unavailable

8

SWITCH ASSY., NEUTRAL (TEC)

35600-413-023

$19.10

9

GUIDE, NEUTRAL SWITCH

35601-KG0-000

$11.38

10

WASHER C, PARKING BRAKE

47134-567-000

$2.32

11

BOLT, GEARSHIFT RETURN SPRING STOPPER This part replaces 90021-KW3-000.

90021-KW3-010

$6.79

11

BOLT, GEARSHIFT RETURN SPRING STOPPER

90021-KW3-010

$6.79

12

BOLT, SPECIAL (12MM)

90015-KA3-711

$6.20

13

WASHER, SEALING (10MM)

90441-329-000

$3.44

14

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.24

15

NUT, HEX. (4MM)

94001-04000-0S

$1.04

16

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

17

PIN, DOWEL (8X14)

94301-08140

$2.76

18

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

19

BOLT, FLANGE (6X35)

95701-06035-07

$1.88

20

BOLT, FLANGE (6X55)

95701-06055-07

$1.66

21

BOLT, FLANGE (6X70) This part replaces 95700-06070-00.

95701-06070-00

$2.80

21

BOLT, FLANGE (6X70)

95701-06070-00

$2.80

21

BOLT, FLANGE (6X70) This part replaces 95701-06070-07.

95701-06070-00

$2.80

22

BOLT, FLANGE (6X90)

95701-06090-07

$2.21
