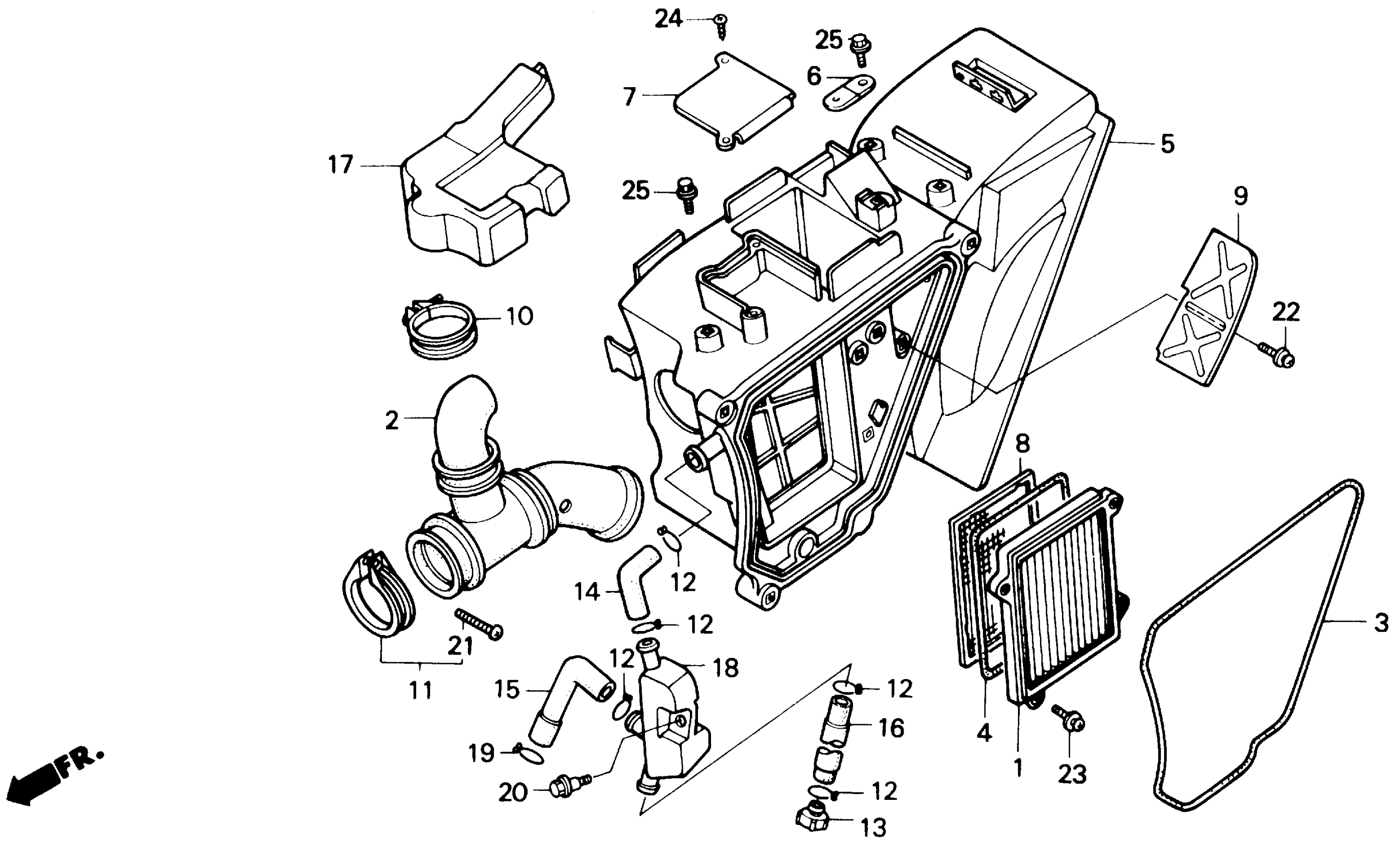

Honda NX250A (90) MOTORCYCLE, JPN, VIN# JH2MD210-LK200002 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17210-KW3-000

Unavailable

2

TUBE, AIR CLEANER CONNECTING

17222-KW3-300

Unavailable

3

GASKET A, AIR CLEANER HOUSING

17226-KW3-000

Unavailable

4

GASKET B, AIR CLEANER HOUSING

17227-KW3-000

Unavailable

5

HOUSING, AIR CLEANER

17230-KW3-000

Unavailable

6

HOLDER, BATTERY

17232-KW3-300

Unavailable

7

COVER, CONNECTOR BOX

17233-KW3-000

Unavailable

8

TRAP, FLAME

17235-KW3-000

Unavailable

9

PLATE, AIR GUIDE

17238-KW3-000

Unavailable

10

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 17255-KR6-000.

95018-34250

$7.78

10

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 17257-GS7-000.

95018-34250

$7.78

10

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 90652-GHB-600.

95018-34250

$7.78

10

BAND, AIR CLEANER CONNECTING TUBE (34)

95018-34250

$7.78

11

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-KW3-000.

95018-56250

$5.42

12

CLIP, TUBE (B16)

90643-MK3-781

$2.25

13

PLUG, BREATHER TUBE

17370-382-870

$3.74

14

TUBE A, BREATHER

17371-KW3-000

Unavailable

15

TUBE B, BREATHER

17372-KW3-000

Unavailable

16

TUBE, DRAIN

17373-KW3-000

Unavailable

17

RESONATOR

17410-KW3-000

Unavailable

18

TANK, STORAGE

17551-KW3-000

Unavailable

19

CLIP, BREATHER TUBE

17369-KB4-670

$5.41

20

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

21

SCREW, PAN (4X22)

93500-04022-0G

Unavailable

22

SCREW-WASHER (5X10)

93891-05010-07

$1.49

23

SCREW-WASHER (5X14)

93891-05014-07

$1.49

24

SCREW, TAPPING (4X10)

93901-24280

$1.49

25

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

25

BOLT, FLANGE (6X14) This part replaces 96500-06014-00.

96300-06014-00

$1.49
