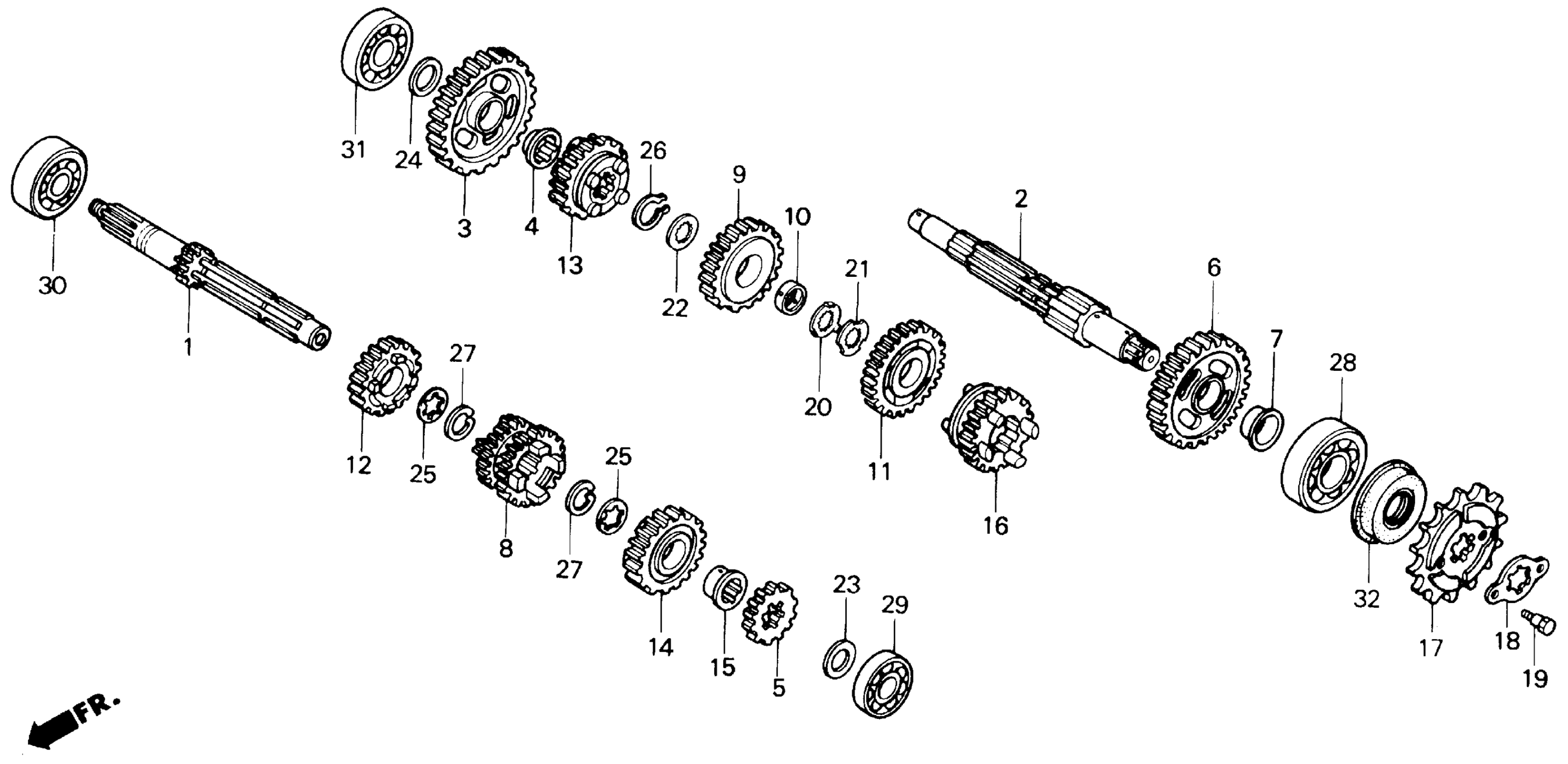

Honda NX250A (89) MOTORCYCLE, JPN, VIN# JH2MD210-KK100001 TO JH2MD210-KK103056 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (13T) This part replaces 23210-KW3-000.

23210-KW3-010

$204.61

1

MAINSHAFT (13T)

23210-KW3-010

$204.61

2

COUNTERSHAFT, TRANSMISSION

23221-KW3-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (37T)

23411-KW3-000

Unavailable

4

BUSH (18MM)

23412-KK0-000

Unavailable

5

GEAR, MAINSHAFT SECOND (18T)

23421-KW3-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (32T) This part replaces 23431-KW3-000.

23431-KW3-010

Unavailable

6

GEAR, COUNTERSHAFT SECOND (32T)

23431-KW3-010

Unavailable

7

COLLAR (22MM)

23432-KK0-000

Unavailable

8

GEAR, MAINSHAFT THIRD & FOURTH (21T/24T)

23441-KW3-000

Unavailable

9

GEAR, COUNTERSHAFT THIRD (28T)

23451-KW3-000

Unavailable

10

COLLAR, SPLINE (22X25X9)

23452-KW3-000

$19.00

11

GEAR, COUNTERSHAFT FOURTH (25T)

23471-KW3-000

Unavailable

12

GEAR, MAINSHAFT FIFTH (26T) This part replaces 23481-KW3-000.

23481-KW3-010

Unavailable

12

GEAR, MAINSHAFT FIFTH (26T)

23481-KW3-010

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (23T) This part replaces 23491-KW3-000.

23491-KW3-010

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (23T)

23491-KW3-010

Unavailable

14

GEAR, MAINSHAFT SIXTH (28T)

23501-KW3-000

Unavailable

15

COLLAR, SPLINE (23MM)

23505-KW3-000

$22.84

16

GEAR, COUNTERSHAFT SIXTH (22T)

23511-KW3-000

Unavailable

17

SPROCKET, DRIVE (13T)

23801-KW3-000

Unavailable

18

PLATE, FIXING This part replaces 23802-KW3-000.

23802-KW3-010

$5.30

18

PLATE, FIXING

23802-KW3-010

$5.30

19

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

20

WASHER, LOCK INVOLUTE (22X27X0.8)

90402-KW3-000

$2.48

21

WASHER, THRUST INVOLUTE (22X30X1.6)

90403-KW3-000

$4.25

22

WASHER, THRUST INVOLUTE (22X21X1)

90404-KW3-000

$3.87

23

WASHER, THRUST (15MM)

90451-107-000

$1.49

24

WASHER, THRUST (17MM)

90454-KF0-000

$4.39

25

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

26

CIRCLIP (OUTER) (22MM)

90601-437-000

$3.20

27

SET-RING (20MM)

90605-200-000

$2.92

28

BEARING, BALL (62/22) (KOYO)

91004-KW3-004

$31.42

29

BEARING, BALL (6202) (NTN)

91005-KK0-003

$37.11

30

BEARING, BALL (6204) (NTN)

91006-KK0-003

$25.94

31

BEARING, RADIAL BALL (17X42X12) (NTN)

91007-KK0-000

$27.33

32

OIL SEAL (21.5X36X8)

91201-KW3-000

$7.90

32

OIL SEAL (21.5X36X8) This part replaces 91201-KW3-003.

91201-KW3-000

$7.90
