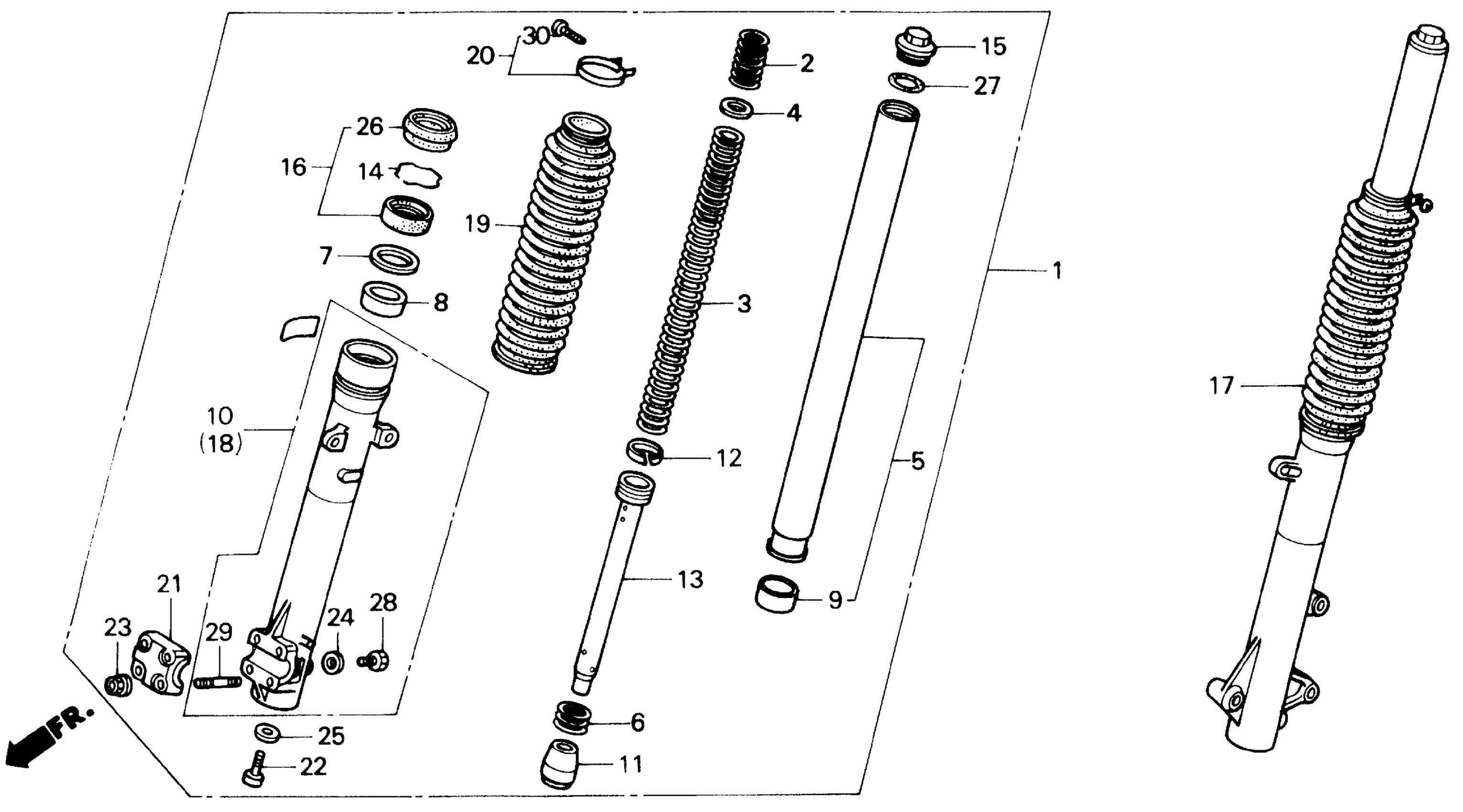

Honda NX250A (89) MOTORCYCLE, JPN, VIN# JH2MD210-KK100001 TO JH2MD210-KK103056 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. *PB26L* (SHOWA) (ANCIENT BLUE) FORK ASSY., R. FR. *G22L*

51400-KW3-672ZA

Unavailable

2

SPRING A, FR. FORK (SHOWA)

51401-KW3-003

Unavailable

3

SPRING B, FR. FORK (SHOWA)

51402-KW3-003

Unavailable

4

PLATE, SPRING JOINT

51403-463-003

Unavailable

5

PIPE, FR. FORK (SHOWA)

51410-KW3-003

Unavailable

6

SPRING, REBOUND (SHOWA)

51411-KW3-003

$5.73

7

RING, BACK-UP

51412-461-003

$7.04

8

BUSH, GUIDE

51414-MN4-003

$13.34

9

BUSH, SLIDER This part replaces 51415-MN4-003.

51415-KSE-A71

$8.89

10

CASE, R. (LOWER) (SHOWA)

51420-KW3-013

Unavailable

11

PIECE, OIL LOCK (SHOWA)

51432-KW3-003

Unavailable

12

RING, PISTON This part replaces 51437-463-003.

51437-KAZ-003

$10.00

13

PIPE, SEAT (SHOWA) This part replaces 51440-KW3-003.

51440-KW3-681

Unavailable

13

PIPE, SEAT (SHOWA)

51440-KW3-681

Unavailable

14

RING, OIL SEAL STOPPER

51447-KR6-003

$3.77

15

BOLT, FR. FORK

51450-KW3-003

$19.69

16

SEAL SET, FR. FORK

51490-KR6-305

$23.04

16

SEAL SET, FR. FORK This part replaces 51490-KW3-305.

51490-KR6-305

$23.04

17

FORK ASSY., L. FR. *PB26L* (SHOWA) (ANCIENT BLUE) FORK ASSY., L. FR. *G22L*

51500-KW3-672ZA

Unavailable

18

CASE, L. (LOWER) (SHOWA)

51520-KW3-013

Unavailable

19

BOOT, FR. FORK *PB26L* (SHOWA) (ANCIENT BLUE) (NOT AVAILABLE) BOOT, FR. FORK *G22L* (SHOWA)

51611-KW3-003ZC

Unavailable

20

BAND, FR. FORK BOOT

51612-430-010

$8.11

21

HOLDER, AXLE

51634-MA0-003

$37.46

22

BOLT, SOCKET (8X27)

90116-383-721

$5.13

23

NUT, U (6MM)

90301-473-003

$4.07

24

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

25

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

26

DUST SEAL

91254-KR6-003

$16.25

27

O-RING (30.2X2.4)

91356-MJ6-741

$2.95

28

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

28

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

29

BOLT, STUD (6X25)

92900-06025-0E

$1.49

30

SCREW, PAN (3X25)

93500-03025-0A

$1.49
