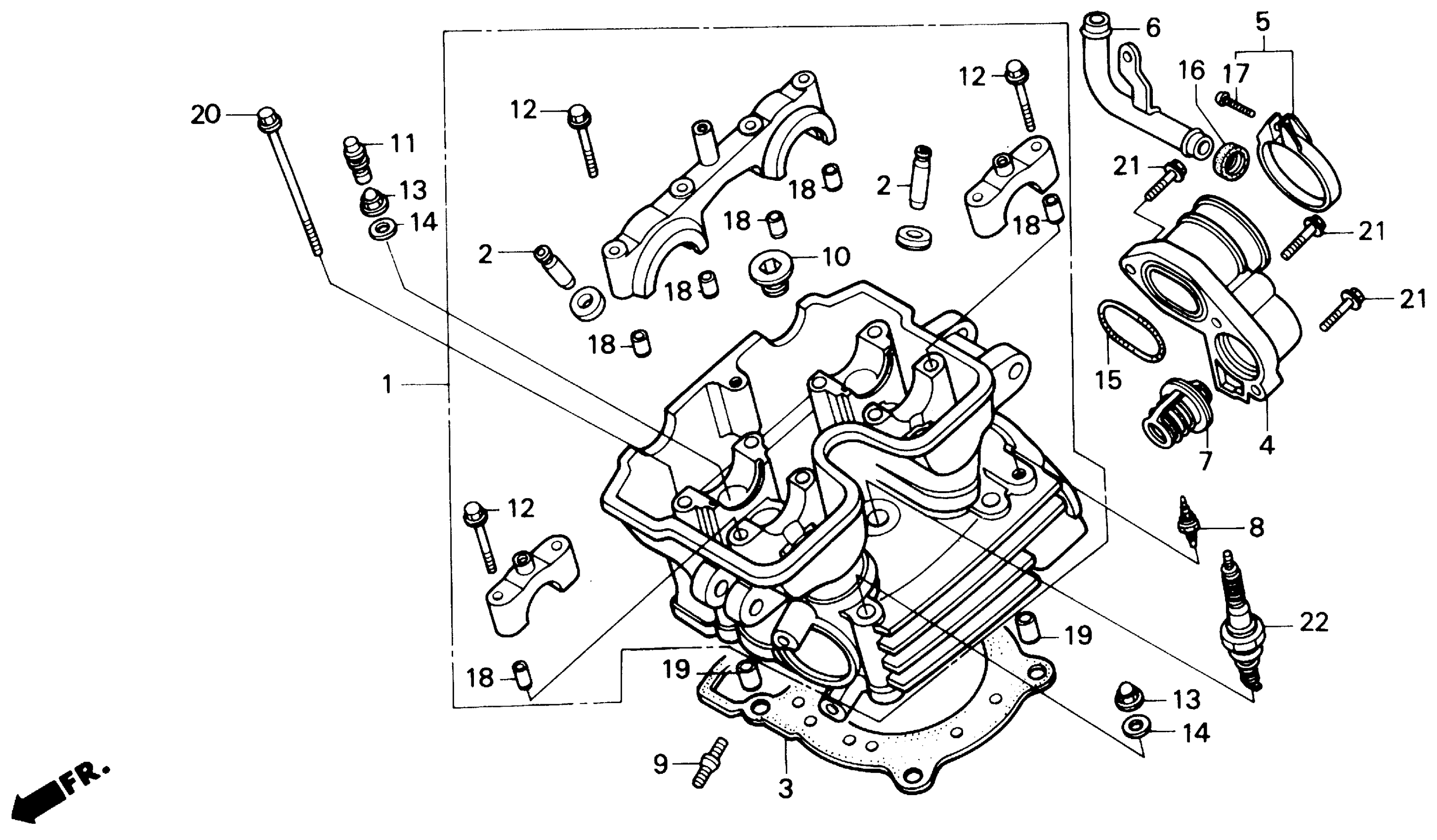

Honda NX250A (89) MOTORCYCLE, JPN, VIN# JH2MD210-KK100001 TO JH2MD210-KK103056 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. This part replaces 12200-KW3-000.

12200-KW3-010

Unavailable

1

CYLINDER HEAD ASSY.

12200-KW3-010

Unavailable

2

GUIDE, VALVE (OVER SIZE)

12205-KW3-305

Unavailable

3

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

12251-KW3-003

Unavailable

3

GASKET, CYLINDER HEAD (NIPPON LEAKLESS) This part replaces 12251-KW3-004.

12251-KW3-003

Unavailable

4

INSULATOR, CARBURETOR

16211-KW3-000

Unavailable

5

BAND, INSULATOR

16223-KS5-000

$14.20

5

BAND, INSULATOR This part replaces 16223-MJ0-000.

16223-KS5-000

$14.20

6

PIPE, WATER

19065-KW3-000

Unavailable

7

THERMOSTAT ASSY.

19300-KE1-003

Unavailable

8

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

9

BOLT, SPECIAL STUD (8X23)

90011-KW3-000

Unavailable

10

BOLT, HYDRAULIC LASH ADJUSTER STOPPER

90032-MG9-000

$9.77

11

CAP, STUD NUT

90081-KW3-000

Unavailable

12

BOLT, FLANGE (6X40)

90102-KE5-000

$3.12

13

NUT, CAP (10MM)

90201-HA0-000

$6.45

14

WASHER, PLAIN (10MM)

90453-MK4-600

$3.81

15

O-RING (37X2.4) (ARAI) GASKET KIT A This part replaces 91301-KG4-003.

91305-KT7-003

$2.83

15

O-RING (37X2.4) (ARAI)

91305-KT7-003

$2.83

16

OIL SEAL, PIPE

91315-MF2-711

Unavailable

17

SCREW, PAN (5X25)

93500-05025-0G

$1.49

18

PIN, DOWEL (8X14)

94301-08140

$2.25

19

PIN, DOWEL (12X20)

94301-12200

$2.29

20

BOLT, FLANGE (6X140)

95701-06140-08

$4.18

21

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$8.09

22

SPARK PLUG (CR9EH9) (NGK)

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$8.09
