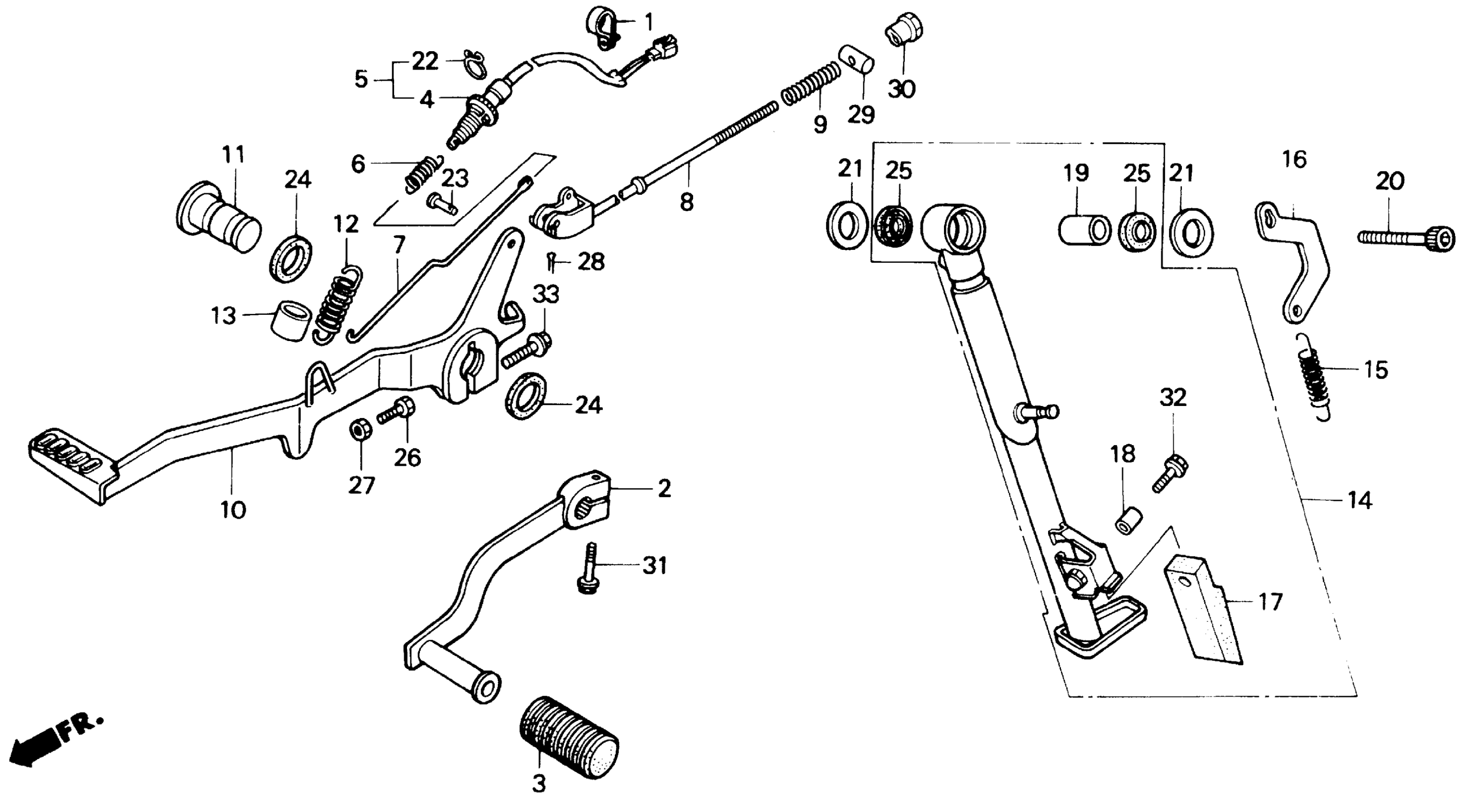

Honda NX250A (89) MOTORCYCLE, JPN, VIN# JH2MD210-KK100001 TO JH2MD210-KK103056 BRAKE PEDAL Diagram

#

Description
Price

1

CLIP, THROTTLE CABLE

17918-KJ2-000

Unavailable

2

PEDAL, CHANGE

24700-KW3-000

Unavailable

3

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

4

SWITCH ASSY., RR. STOP | Use from Frame SN KK103045 This part replaces 35350-KW3-000.

35350-KW3-010

Unavailable

4

SWITCH ASSY., RR. STOP

35350-KW3-010

Unavailable

4

SWITCH ASSY., RR. STOP | Use up to Frame SN KK103044 This part replaces 35350-KW3-770.

35350-KW3-010

Unavailable

6

SPRING, STOP SWITCH This part replaces 35357-GE2-000.

35357-KY2-700

$5.90

6

SPRING, STOP SWITCH

35357-KY2-700

$5.90

7

ROD, STOP SWITCH

35358-KW3-000

Unavailable

8

ROD, RR. BRAKE

43451-KW3-670

Unavailable

9

SPRING A, BRAKE ROD

43472-KB9-750

$3.10

10

PEDAL, RR. BRAKE

46500-KW3-670

Unavailable

11

PIPE, BRAKE PEDAL PIVOT

46501-KW3-000

Unavailable

12

SPRING, BRAKE PEDAL

46514-KW3-670

$4.75

13

TUBE, BRAKE PEDAL SPRING

46515-MN1-670

$3.26

14

BAR ASSY., SIDE STAND

50540-KW3-000

Unavailable

15

SPRING, SIDE STAND

50541-KW3-000

Unavailable

16

PLATE, SIDE STAND SPRING

50546-KW3-000

Unavailable

17

RUBBER, STAND

50548-KW3-003

Unavailable

18

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

19

COLLAR, SIDE STAND

50550-KW3-000

Unavailable

20

BOLT, SOCKET (10X45)

90101-KW3-000

Unavailable

21

WASHER, THRUST

90501-KW3-000

Unavailable

23

PIN C, JOINT | Use up to Frame SN KK102679 This part replaces 90712-GS9-670.

95015-53000

$3.06

23

PIN C, JOINT

95015-53000

$3.06

24

DUST SEAL (18X23X3)

91251-HA2-003

Unavailable

25

DUST SEAL, PIVOT

91262-KW3-003

Unavailable

26

BOLT, HEX. (6X25)

92225-06025-0A

Unavailable

27

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

27

NUT, HEX. (6MM)

94002-06000-0S

$1.49

28

PIN, SPLIT (2.0X12)

94201-20120

$1.49

29

JOINT B, BRAKE ARM

95015-32001

$1.49

30

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

31

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

32

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

33

BOLT, FLANGE (6X32)

96300-06032-00

$1.49

33

BOLT, FLANGE (6X32) This part replaces 96500-06032-00.

96300-06032-00

$1.49
