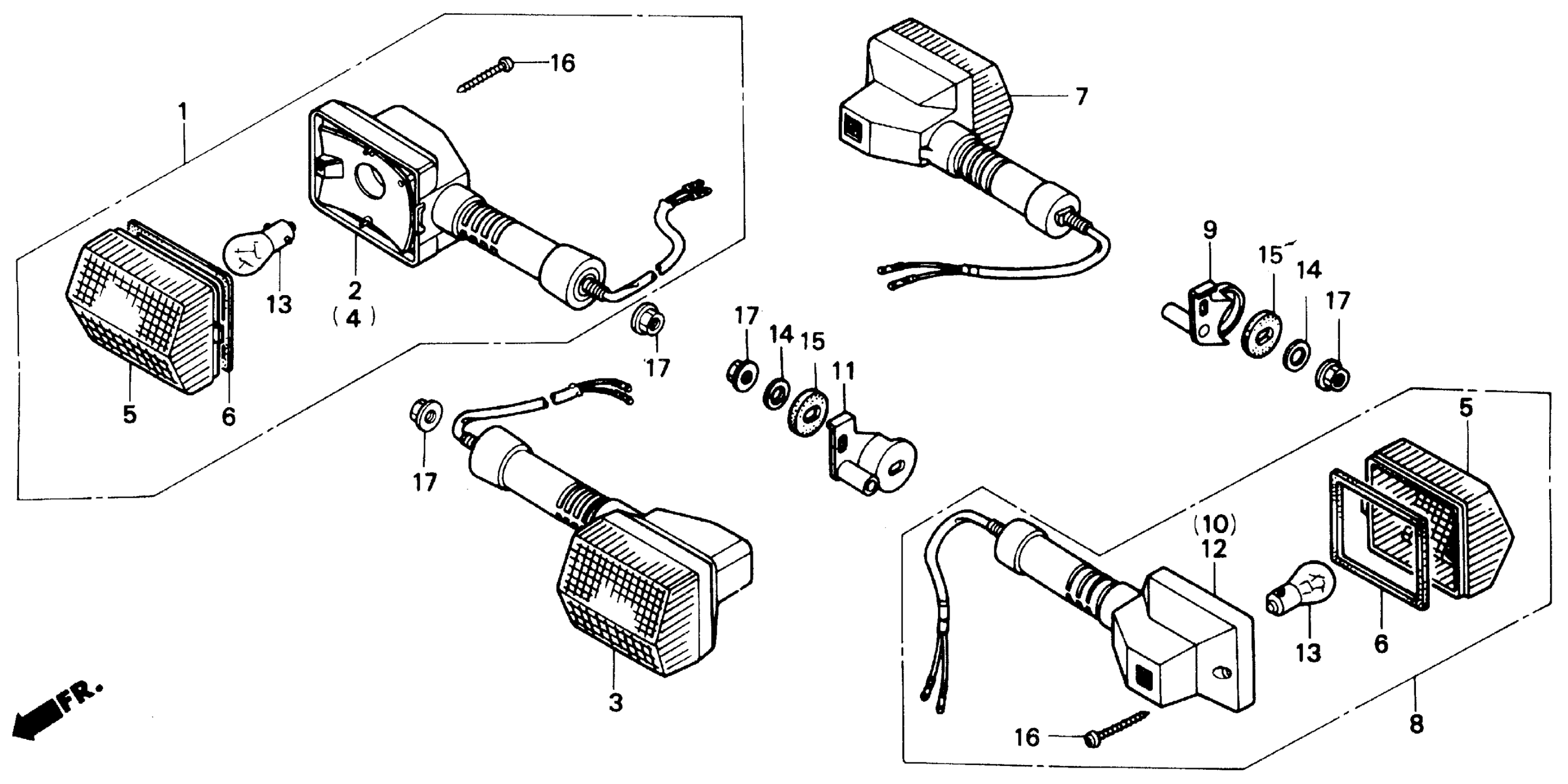

Honda NX250A (88) MOTORCYCLE, JPN, VIN# JH2MD210-JK000009 TO JH2MD210-JK003124 TURN SIGNAL Diagram

#

Description

Price

1

TURN SIGNAL SET, R. This part replaces 33300-KW3-670.

33300-KY7-405

Unavailable

2

BASE COMP WINKER This part replaces 33320-KW3-670.

33420-KY7-405

Unavailable

3

TURN SIGNAL SET, R. This part replaces 33350-KW3-670.

33300-KY7-405

Unavailable

4

BASE COMP WINKER This part replaces 33370-KW3-670.

33420-KY7-405

Unavailable

5

LENS, TURN SIGNAL (COO) This part replaces 33402-MG2-003.

33402-MGW-305

$10.52

6

GASKET, LENS

33407-MG2-003

$5.94

7

TURN SIGNAL SET, R. This part replaces 33500-KW3-670.

33300-KY7-405

Unavailable

8

TURN SIGNAL SET, R. This part replaces 33550-KW3-670.

33300-KY7-405

Unavailable

9

STAY, R. RR. TURN SIGNAL

33605-KW3-610

Unavailable

10

BASE COMP WINKER This part replaces 33620-KW3-670.

33420-KY7-405

Unavailable

11

STAY, L. RR. TURN SIGNAL

33655-KW3-610

Unavailable

12

BASE, L. RR. TURN SIGNAL (NOT AVAILABLE)

33670-KW3-670

Unavailable

13

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

16

SCREW, TAPPING (3X25)

91901-MG2-003

$2.70

17

NUT, FLANGE (10MM)

94050-10000

$1.59
