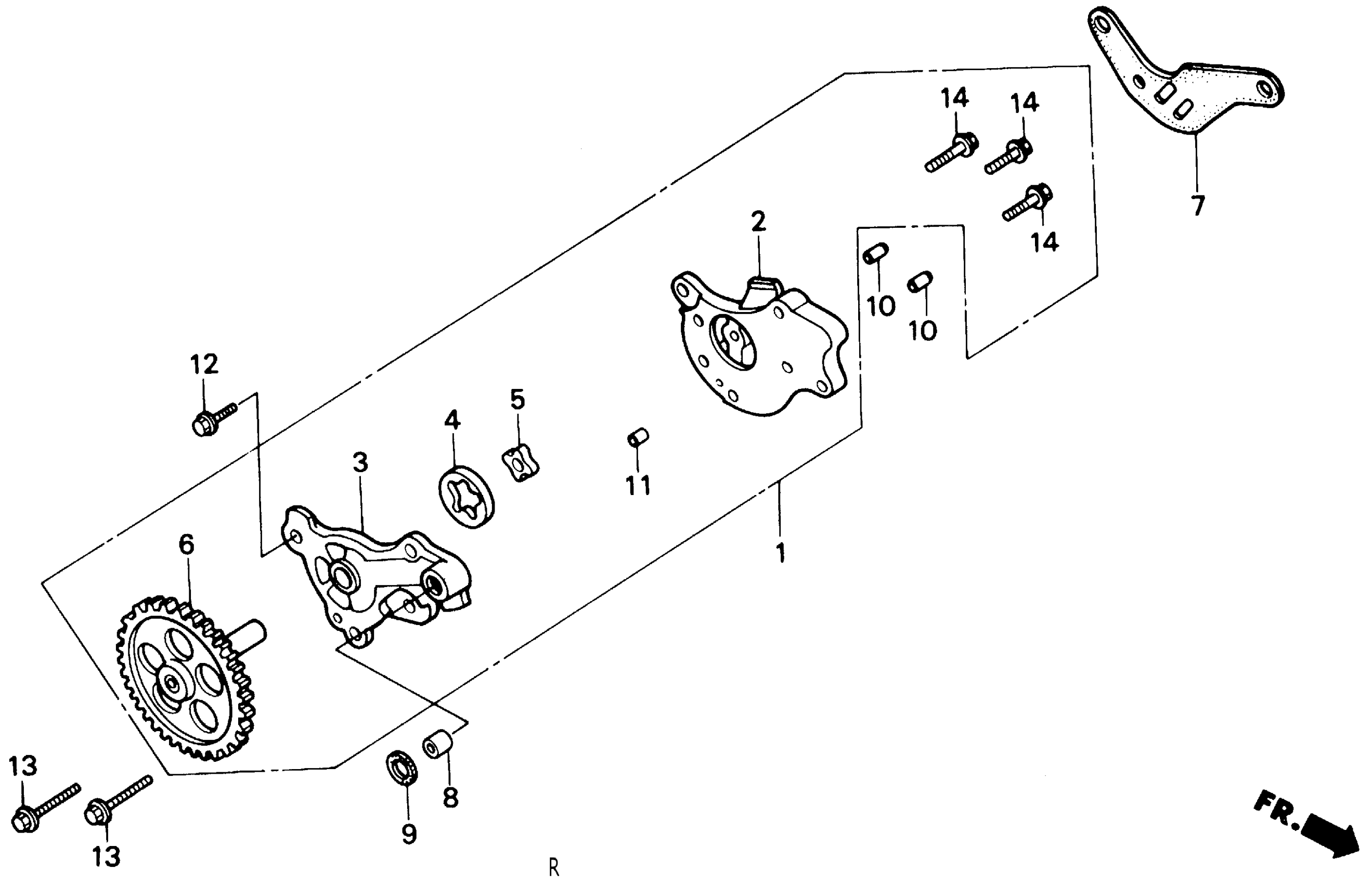

Honda NX250A (88) MOTORCYCLE, JPN, VIN# JH2MD210-JK000009 TO JH2MD210-JK003124 OIL PUMP Diagram

PUMP ASSY., OIL

15100-KBR-731

Unavailable

PUMP ASSY., OIL This part replaces 15100-KW3-000.

15100-KBR-731

Unavailable

PUMP ASSY., OIL This part replaces 15100-KW3-010.

15100-KBR-731

Unavailable

BODY, OIL PUMP This part replaces 15111-KW3-000.

15111-KW3-010

Unavailable

COVER, OIL PUMP

15121-KK0-000

Unavailable

ROTOR, OIL PUMP (OUTER)

15122-KL4-000

$21.66

ROTOR, OIL PUMP (INNER)

15123-KL4-000

Unavailable

GEAR, OIL PUMP DRIVEN (27T)

15140-KW3-000

Unavailable

SEAT, OIL PUMP This part replaces 15152-KL4-000.

15152-KL4-405

Unavailable

PIN, DOWEL (10X10)

90702-MJ4-000

$3.26

GASKET, RUBBER

91303-KK0-003

$2.97

PIN, DOWEL (8X14)

94301-08140

$2.25

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
