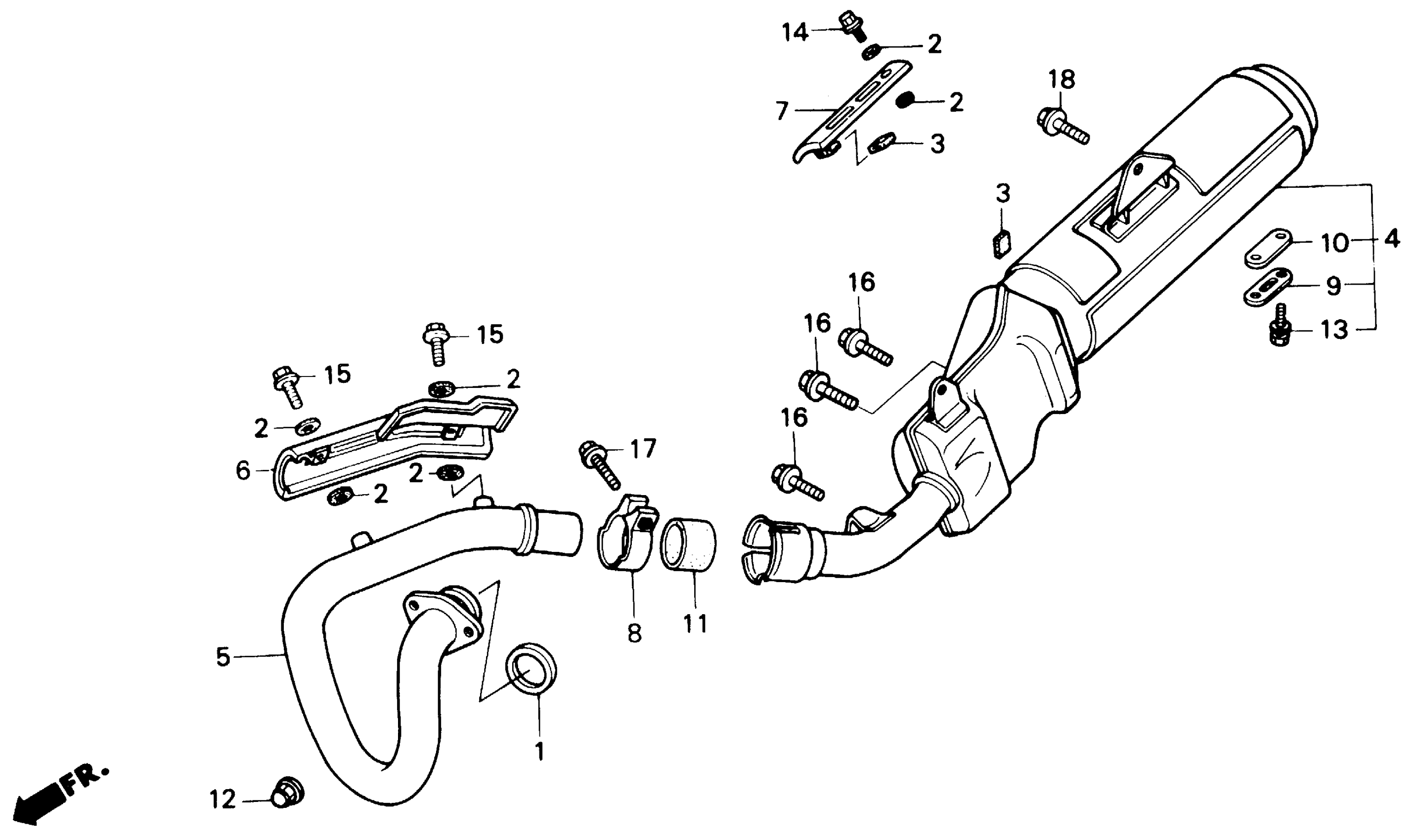

Honda NX250A (88) MOTORCYCLE, JPN, VIN# JH2MD210-JK000009 TO JH2MD210-JK003124 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18291-254-000.

18291-MM5-860

$5.17

1

GASKET, EX. PIPE

18291-MM5-860

$5.17

2

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

2

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

2

GASKET, PROTECTOR

18292-MM9-740

$3.03

3

RUBBER, PROTECTOR GASKET This part replaces 18293-GE8-000.

18293-147-000

$4.04

3

RUBBER, PROTECTOR GASKET

18293-147-000

$4.04

4

MUFFLER (NOT AVAILABLE)

18310-KW3-670

Unavailable

5

PIPE, EX. This part replaces 18320-KW3-670.

18320-KW3-010

Unavailable

6

PROTECTOR, EX. PIPE *NH106* (HEATPROOF BLACK) This part replaces 18325-KW3-000ZB.

18325-KW3-771ZB

Unavailable

6

PROTECTOR, EX. PIPE *NH106* (HEATPROOF BLACK) This part replaces 18325-KW3-010ZB.

18325-KW3-771ZB

Unavailable

6

PROTECTOR, EX. PIPE *NH106* (HEATPROOF BLACK)

18325-KW3-771ZB

Unavailable

7

PROTECTOR, MUFFLER

18360-KW3-000

Unavailable

8

BAND, L. MUFFLER This part replaces 18373-MG7-701.

18374-KE8-000

$29.26

8

BAND, L. MUFFLER

18374-KE8-000

$29.26

9

LID, MUFFLER

18373-429-010

$9.15

10

GASKET, MUFFLER LID

18374-MN1-880

$4.21

10

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

11

GASKET, MUFFLER

18392-MK4-000

$13.66

12

NUT, SPECIAL (8MM)

90217-657-000

$5.08

13

BOLT-WASHER (6X12)

93401-06012-07

$1.62

13

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

13

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

14

BOLT, FLANGE (6X10)

96001-06010-02

$1.54

15

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

16

BOLT, FLANGE (8X20)

96300-08020-00

$1.57

16

BOLT, FLANGE (8X20) This part replaces 96500-08012-00.

96300-08020-00

$1.57

16

BOLT, FLANGE (8X20) This part replaces 96500-08020-00.

96300-08020-00

$1.57

17

BOLT, FLANGE (8X35)

96400-08035-07

$2.02

17

BOLT, FLANGE (8X35) This part replaces 96500-08035-07.

96400-08035-07

$2.02

18

BOLT, FLANGE (10X16)

96300-10016-07

Unavailable

18

BOLT, FLANGE (10X16) This part replaces 96500-10016-07.

96300-10016-07

Unavailable
