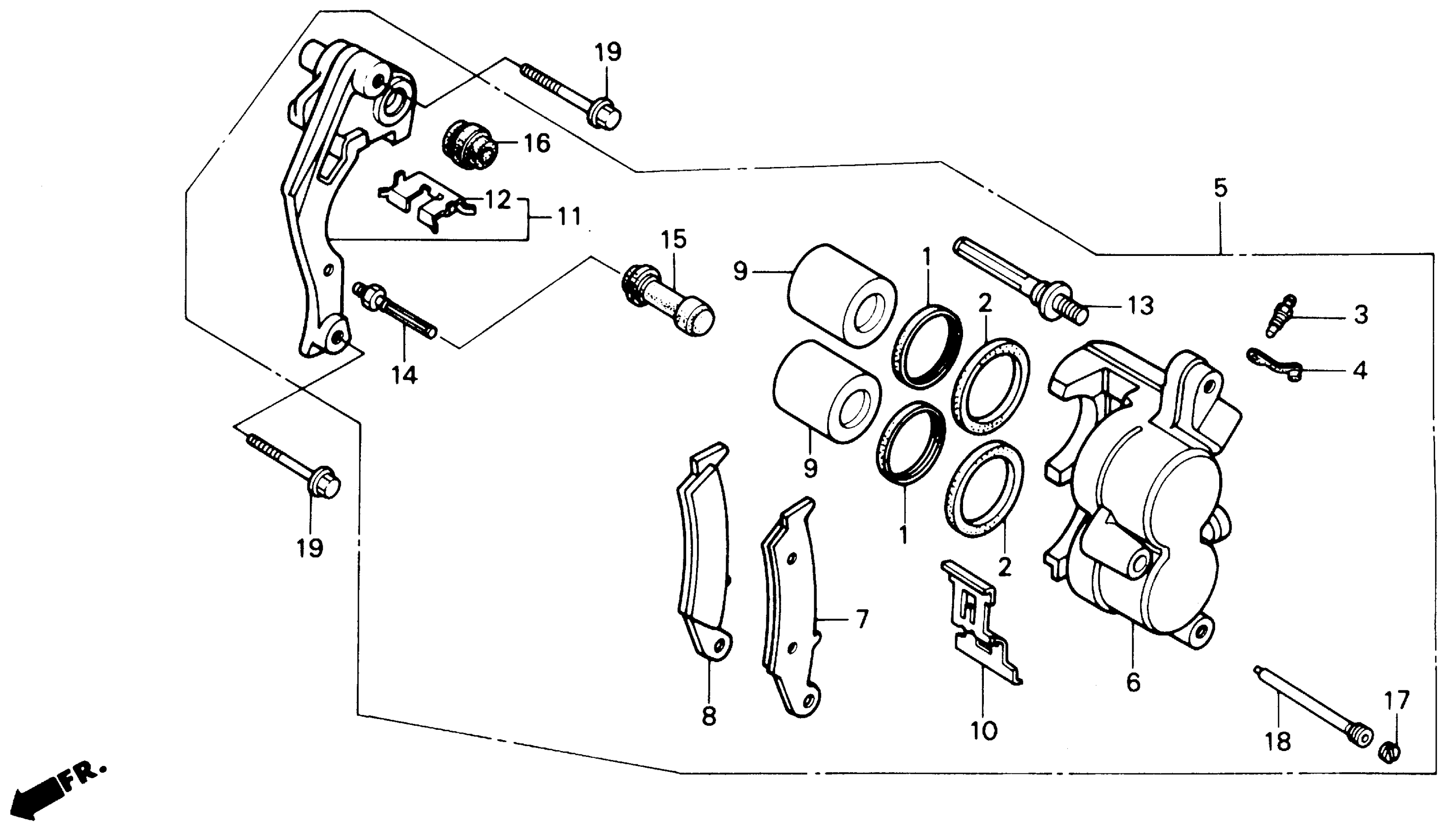

Honda NX250A (88) MOTORCYCLE, JPN, VIN# JH2MD210-JK000009 TO JH2MD210-JK003124 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DUST SEAL

43109-MA3-006

$5.49

2

SEAL, PISTON

43209-MA3-006

$6.72

3

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

4

CAP, BLEEDER

43353-461-771

Unavailable

5

CALIPER ASSY., L. FR. (NISSIN) (NOT AVAILABLE) This part replaces 45100-KZ9-006.

45100-KZ9-016

Unavailable

6

BODY, L. CALIPER (NISSIN)

45101-KZ9-006

Unavailable

7

PAD A (NOT AVAILABLE) PAD, FR. (A)(TT)

45105-KS6-831

Unavailable

8

PAD B PAD, FR. (B)(TT)

45106-KS6-831

Unavailable

9

PISTON This part replaces 45107-KS6-701.

45107-KS6-702

$50.91

9

PISTON This part replaces 43107-KW3-006.

45107-KS6-702

$50.91

9

PISTON

45107-KS6-702

$50.91

10

SPRING, PAD This part replaces 45108-HA5-671.

45108-MY1-006

$9.86

10

SPRING, PAD

45108-MY1-006

$9.86

10

SPRING, PAD This part replaces 45108-MY6-671.

45108-MY1-006

$9.86

11

BRACKET, L. FR.

45110-KCY-671

$96.44

11

BRACKET, L. FR. This part replaces 45110-KS6-701.

45110-KCY-671

$96.44

11

BRACKET, L. FR. This part replaces 45110-KS6-702.

45110-KCY-671

$96.44

12

RETAINER

45112-KS6-701

$5.80

13

BOLT A, PIN This part replaces 45131-HA5-671.

45131-HA5-672

$14.17

13

BOLT A, PIN

45131-HA5-672

$14.17

14

BOLT, PIN

45131-166-016

$7.28

15

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

16

BOOT B

45133-MA3-006

$5.21

17

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$4.88

17

PLUG, PIN

45203-MG3-016

$4.88

18

PIN, HANGER This part replaces 45215-HA5-671.

45215-HA5-672

$9.77

18

PIN, HANGER

45215-HA5-672

$9.77

19

BOLT, FLANGE (8X40) This part replaces 90131-MG3-000.

96400-08040-00

$1.87
