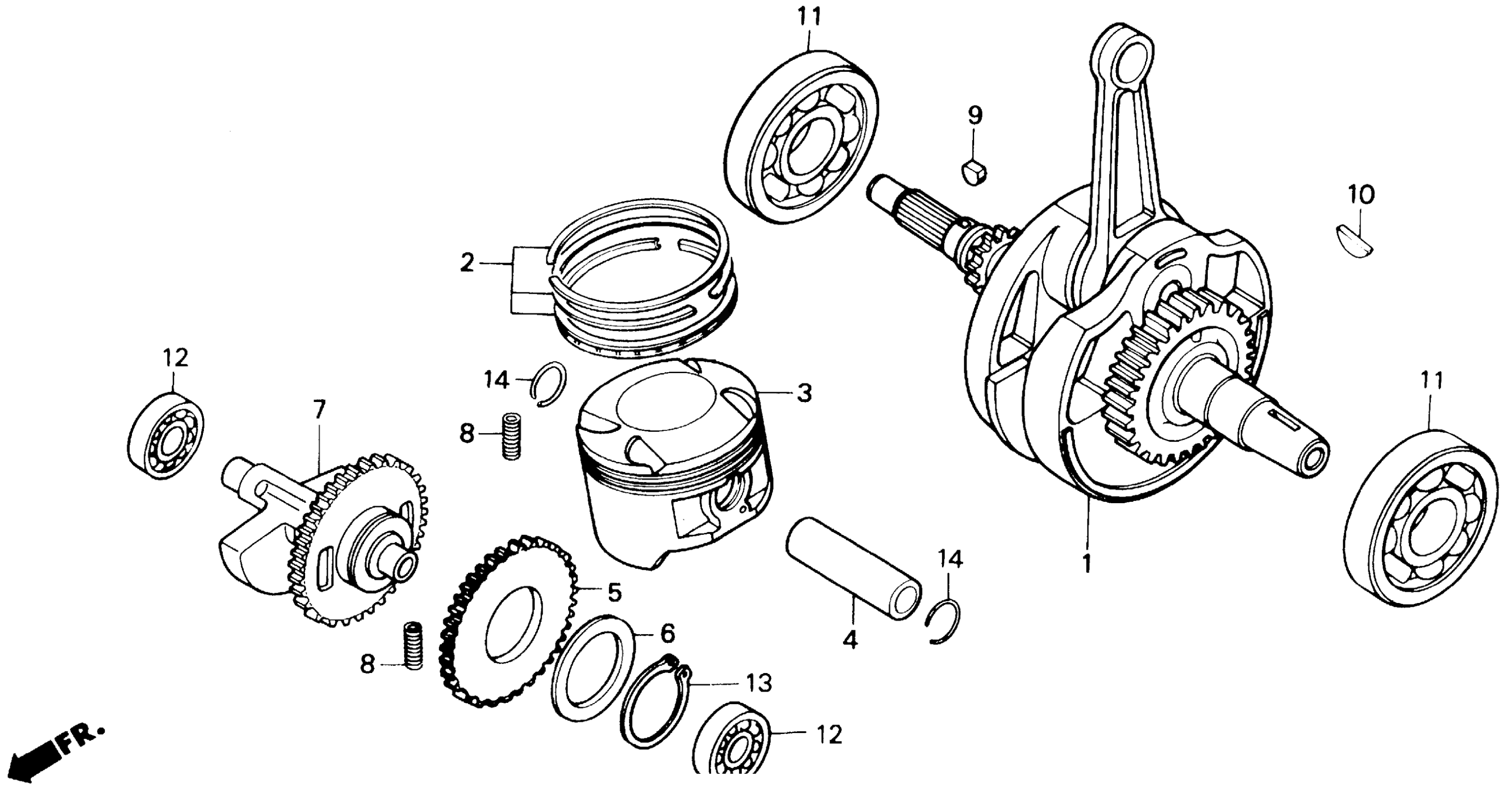

Honda NX250A (88) MOTORCYCLE, JPN, VIN# JH2MD210-JK000009 TO JH2MD210-JK003124 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT | Use up to Engine SN 2001138 This part replaces 13000-KW3-000.

13000-KW3-305

Unavailable

1

CRANKSHAFT This part replaces 13000-KW3-010.

13000-KW3-305

Unavailable

1

CRANKSHAFT This part replaces 13000-KW3-020.

13000-KW3-305

Unavailable

1

CRANKSHAFT This part replaces 13000-KW3-030.

13000-KW3-305

Unavailable

1

CRANKSHAFT

13000-KW3-305

Unavailable

2

RING SET, PISTON This part replaces 13011-ML7-305.

13011-MT4-315

$56.74

2

RING SET, PISTON

13011-MT4-315

$56.74

3

PISTON

13101-KW3-000

Unavailable

4

PIN, PISTON This part replaces 13111-ML7-690.

13111-MM4-000

Unavailable

4

PIN, PISTON

13111-MM4-000

Unavailable

5

SUB-GEAR, BALANCER DRIVEN (34T) This part replaces 13419-KL4-000.

13419-KL4-010

Unavailable

5

SUB-GEAR, BALANCER DRIVEN (34T)

13419-KL4-010

Unavailable

6

SPRING, BALANCER DISK

13423-MG2-003

$10.43

7

SHAFT, BALANCER (34T)

13430-KW3-000

Unavailable

8

SPRING, BALANCER GEAR

14333-KF0-000

$4.81

9

KEY, WOODRUFF (25X10)

90471-KW3-000

Unavailable

10

KEY, SPECIAL WOODRUFF (25X14) | Use from Engine SN 2001139

13331-360-000

$3.47

10

KEY, WOODRUFF (25X14) | Use up to Engine SN 2001138 This part replaces 90702-KK0-770.

94401-25140

$1.75

10

KEY, WOODRUFF (25X14) | Use up to Engine SN 2001138

94401-25140

$1.75

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-KK0-003.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

12

BEARING, RADIAL BALL (63/13) (NTN)

91006-KK0-771

$21.91

13

CIRCLIP (OUTER) (32MM)

94510-32100

$1.49

14

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
