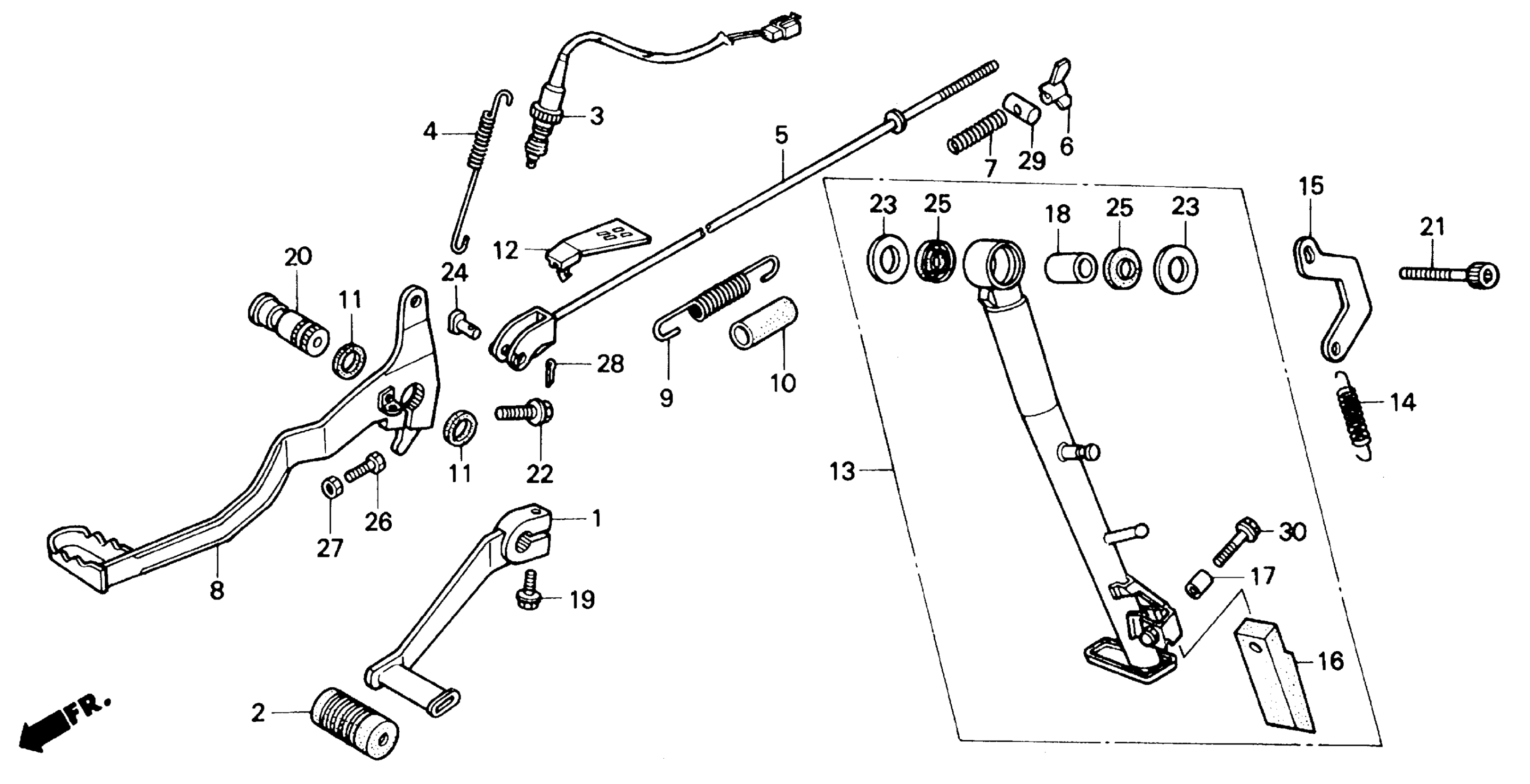

Honda NX125AC (88) MOTORCYCLE, JPN, VIN# JH2JD091-JK000004 TO JH2JD091-JJK00329 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-KY7-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

3

SWITCH ASSY., RR. STOP (NOT AVAILABLE)

35350-KB7-971

Unavailable

4

SPRING, STOP SWITCH

35357-MC9-670

Unavailable

5

ROD, RR. BRAKE (NOT AVAILABLE)

43451-KY7-000

Unavailable

6

NUT, BRAKE ADJUST (SEE KIT P/N--END OF BLOCK)

43459-434-000

$15.27

7

SPRING A, BRAKE ROD

43472-KB9-750

$3.10

8

PEDAL, BRAKE (NOT AVAILABLE)

46500-KY7-000

Unavailable

9

SPRING SET, BRAKE PEDAL This part replaces 46511-KY7-000.

46513-KY7-000

$11.62

9

SPRING SET, BRAKE PEDAL

46513-KY7-000

$11.62

10

TUBE, BRAKE PEDAL SPRING

46515-KY7-000

$4.92

11

DUST SEAL (17X20X2.5)

46525-KK0-003

$5.05

12

PROTECTOR, MIDDLE ARM

46526-KY7-000

Unavailable

13

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-KY7-670

Unavailable

14

SPRING, SIDE STAND

50541-KW3-000

Unavailable

15

PLATE, SIDE STAND SPRING

50546-KW3-000

Unavailable

16

RUBBER, STAND This part replaces 50548-KW3-000.

50548-KW3-003

Unavailable

16

RUBBER, STAND

50548-KW3-003

Unavailable

17

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

18

COLLAR, SIDE STAND (SOURCE: VINTAGE PARTS INC.)

50550-KW3-000

Unavailable

19

BOLT, FLANGE (6X20)

90010-ML0-720

$2.92

20

SHAFT, RR. BRAKE PIVOT

90101-KK0-000

$27.48

21

BOLT, SOCKET (10X45) (SOURCE: VINTAGE PARTS INC.)

90101-KW3-000

Unavailable

22

BOLT, FLANGE (8X26)

90155-GE4-003

Unavailable

23

WASHER, THRUST (SOURCE: VINTAGE PARTS INC.)

90501-KW3-000

Unavailable

24

PIN C, JOINT This part replaces 90712-GS9-670.

95015-53000

$3.06

24

PIN, JOINT (C)

95015-53000

$3.06

25

DUST SEAL, PIVOT (NOT AVAILABLE)

91262-KW3-003

Unavailable

26

BOLT, HEX. (6X25) This part replaces 92025-06025.

92025-06025-0A

$1.49

26

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

26

BOLT, HEX. (6X25) This part replaces 92225-06025-00.

92025-06025-0A

$1.49

27

NUT, HEX. (6MM)

94002-06000-0S

$1.49

28

PIN, COTTER (2.0X12)

94201-20120

$1.49

29

JOINT B, BRAKE ARM

95015-32001

$1.49

30

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

$1.49
