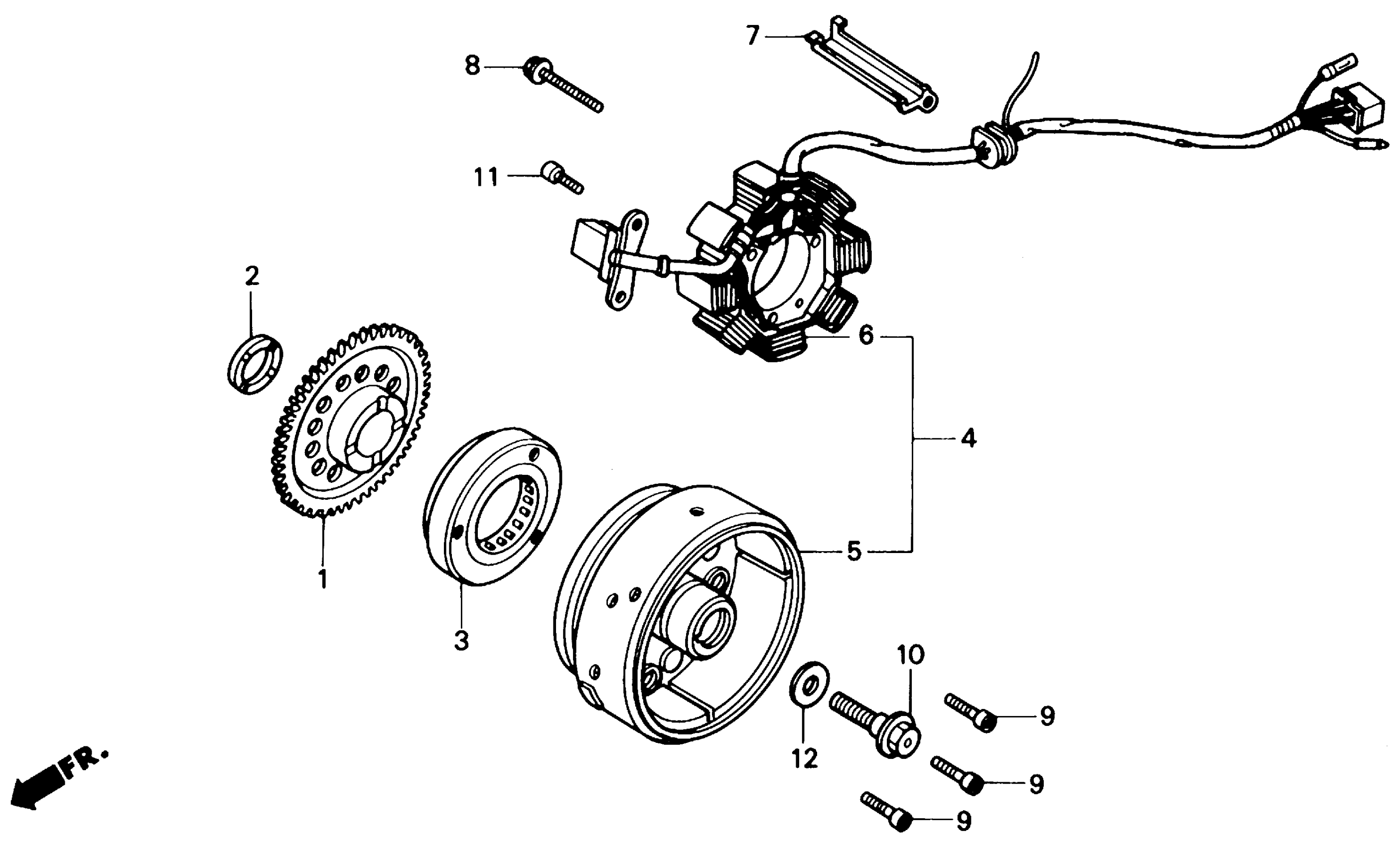

Honda NX125AC (88) MOTORCYCLE, JPN, VIN# JH2JD091-JK000004 TO JH2JD091-JJK00329 ALTERNATOR Diagram

#

Description

Price

1

GEAR, STARTER DRIVEN (NOT AVAILABLE)

28110-KY7-000

Unavailable

2

COLLAR, STARTING DRIVEN GEAR

28114-KN6-930

$22.81

3

CLUTCH, STARTING (OUTER) This part replaces 28120-HC3-005.

28125-HC3-016

Unavailable

4

ALTERNATOR ASSY., FLYWHEEL TYPE (DENSO) (NOT AVAILABLE)

31100-KY7-004

Unavailable

5

FLYWHEEL (DENSO) (NOT AVAILABLE)

31110-KY7-004

Unavailable

6

STATOR (DENSO) (NOT AVAILABLE)

31120-KY7-004

Unavailable

7

GUIDE, ALTERNATOR WIRE

32976-KN6-910

$5.26

8

BOLT, FLANGE (5X32) (NOT AVAILABLE)

90001-KY7-000

Unavailable

9

BOLT, SOCKET (8X18)

90010-KM1-000

$4.78

10

BOLT, ROTOR SETTING

90023-KK3-830

$4.52

11

BOLT, SOCKET (5X14)

90089-HB3-000

$3.01

12

WASHER (10X24)

90403-KN6-930

$8.09
